Rear seat center armrest for BMW 3 Series E92 330xd (2008)

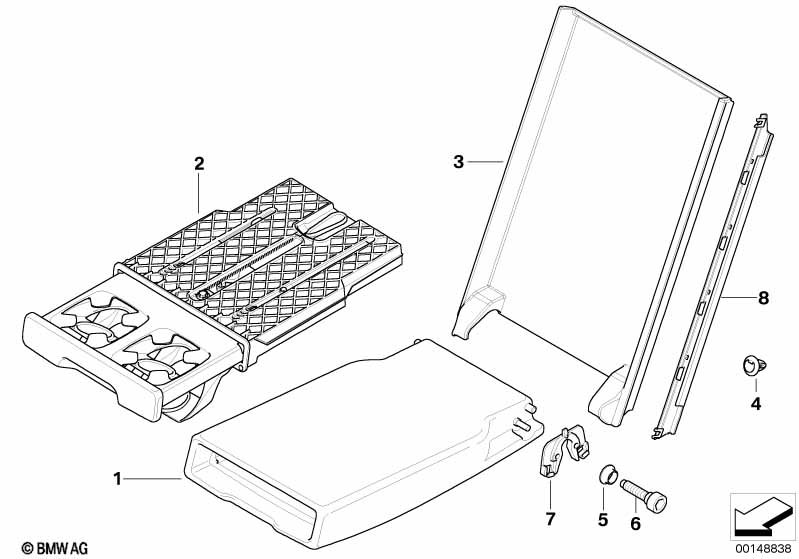

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SCHWARZ | 1 | 52206970796 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Armrest, vinyl, rear center | SCHWARZ | 1 | 52207152282 | $261.75 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 01 | Armrest, leather, rear center | CAMEL | 1 | 52206970798 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Center arm rest, leather | GRAU | 1 | 06/2009 | 52207152300 | $359.91 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SATTELBRAUN | 1 | 52206970790 | $359.91 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Center arm rest, leather | CREAMBEIGE | 1 | 06/2009 | 52206970787 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 01 | Armrest in vinyl, front center | CREAMBEIGE | 1 | 52206970778 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Armrest, rear center | GRAU | 1 | 52207152276 | $271.19 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 01 | Armrest, leather, rear center | KORALLROT | 1 | 52206970788 | $359.91 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Armrest, rear center | ANTHRAZIT | 1 | 52207118729 | $407.34 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 01 | Armrest, rear center | ANTHRAZIT | 1 | 52208036385 | $372.74 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 01 | Armrest, leather, rear center | JADEGRAU | 1 | 52206970789 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 01 | Armrest, leather, rear center | CREAMBEIGE | 1 | 52206970797 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Armrest, leather, rear center | ANTHRAZIT | 1 | 52206970782 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, rear center | SCHWARZ | 1 | 52207246449 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 02 | Cup holder | GRAU | 1 | 52207157551 | $104.52 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 02 | Cup holder | CREAMBEIGE | 1 | 52206970799 | $104.52 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes FHAT=Yes KASW=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 02 | Cup holder | ANTHRAZIT | 1 | 52207157550 | $104.52 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 03 | Cover | LEMON | 1 | 52207160050 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige |
ALB4=Yes |
|||||||||
| 03 | Cover | BEIGE | 1 | 52207160049 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 03 | Cover | CAMEL | 1 | 52209114311 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 03 | Cover | QUARZGRAU | 1 | 52207160051 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 03 | Cover | JADEGRAU | 1 | 52206970756 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 03 | Cover | GRAU | 1 | 52207160048 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 03 | Cover | CREAMBEIGE | 1 | 52206970754 | $48.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth/leather "citrus"/anthracite or Sensatec/black or Leather "Dakota"/terra or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes FFAT=Yes KASW=Yes LCB8=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 03 | Cover | SCHWARZ | 1 | 52207160047 | $48.24 | Shop at ECS Tuning | ||||
| 04 | Clip, center armrest cover | 2 | 52207066069 | $0.38 | Shop at ECS Tuning | |||||
| 05 | Bushing | 2 | 52207125299 | $1.88 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M6 | 1 | 07147160601 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Spring | 2 | 52207162604 | $1.88 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 08 | Cover | LEMON | 1 | 52207160055 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige |
ALB4=Yes |
|||||||||
| 08 | Cover | BEIGE | 1 | 52207160054 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 08 | Cover | CAMEL | 1 | 52209114312 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 08 | Cover | QUARZGRAU | 1 | 52207160056 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 08 | Cover | JADEGRAU | 1 | 52206970760 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 08 | Cover | GRAU | 1 | 52207160053 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 08 | Cover | CREAMBEIGE | 1 | 52206970758 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Sensatec/black or Leather "Dakota"/terra or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes FFAT=Yes FFB5=Yes KASW=Yes LCB8=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 08 | Cover | SCHWARZ | 1 | 52207160052 | $7.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
