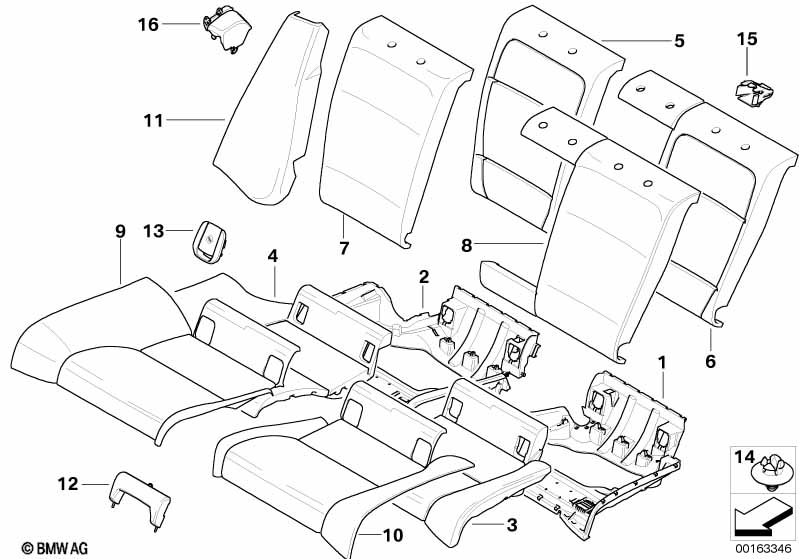

Seat, rear, uphlstry/cover, load-through for BMW 3 Series E92 325d (2010)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat carrier, rear left | 1 | 52206970729 | $48.24 | Shop at ECS Tuning | |||||
| 02 | Seat carrier, rear right | 1 | 52206970730 | $48.24 | Shop at ECS Tuning | |||||
| 03 | Left seat foam plastic part | 1 | 52206970731 | $122.29 | Shop at ECS Tuning | |||||
| 04 | Right seat foam plastic part | 1 | 52206970732 | $122.29 | Shop at ECS Tuning | |||||
| 05 | Foam section, backrest, right | 1 | 52207151646 | $80.03 | Shop at ECS Tuning | |||||
| 06 | Foam plastic part left backrest | 1 | 52207151645 | $125.76 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 07 | Cover backrest leather right | SCHWARZ | 1 | 52207843024 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 07 | Cover backrest leather right | GRAU | 1 | 06/2009 | 52207266139 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 07 | Cover backrest leather right | JADEGRAU | 1 | 52206972915 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 07 | Cover backrest leather right | SCHWARZ | 1 | 52206972942 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 07 | Cover backrest vinyl right | CREAMBEIGE | 1 | 52206972874 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 07 | Cover, seat, cloth/leather right | ANTHRAZIT | 1 | 52206972886 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 07 | Cover backrest leather right | CREAMBEIGE | 1 | 52206972943 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 07 | Cover backrest leather right | KORALLROT | 1 | 52207266141 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 07 | Cover backrest cloth right | ANTHRAZIT | 1 | 52206972861 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 07 | Cover backrest cloth right | GRAU | 1 | 52206972862 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 07 | Cover backrest leather right | SCHWARZ | 1 | 06/2009 | 52207266124 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 07 | Cover backrest vinyl right | SCHWARZ | 1 | 52206972873 | $148.95 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 07 | Cover backrest leather right | CAMEL | 1 | 52206972944 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 07 | Cover backrest leather right | CREAMBEIGE | 1 | 06/2009 | 52207266140 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 07 | Cover backrest leather right | SATTELBRAUN | 1 | 52207266143 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 07 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52208039788 | $248.20 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ | 1 | 52207843025 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 08 | Cover backrest leather left | GRAU | 1 | 06/2009 | 52207266146 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 08 | Cover backrest leather left | JADEGRAU | 1 | 52206972909 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ | 1 | 52206972939 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 08 | Cover backrest vinyl left | CREAMBEIGE | 1 | 52206972872 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 08 | Cover, seat, cloth/leather left | ANTHRAZIT | 1 | 52206972885 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 08 | Cover backrest leather left | CREAMBEIGE | 1 | 52206972940 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 08 | Cover backrest leather left | KORALLROT | 1 | 09/2009 | 52207266148 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 08 | Cover backrest cloth left | ANTHRAZIT | 1 | 52206972859 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 08 | Cover backrest cloth left | GRAU | 1 | 52206972860 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ | 1 | 06/2009 | 52207266145 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 08 | Cover backrest vinyl left | SCHWARZ | 1 | 52206972871 | $238.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 08 | Cover backrest leather left | CAMEL | 1 | 52206972941 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 08 | Cover backrest leather left | CREAMBEIGE | 1 | 06/2009 | 52207266147 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 08 | Cover backrest leather left | SATTELBRAUN | 1 | 52207266150 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 08 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52208039787 | $387.40 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 09 | Seat cover leather right | GRAU | 1 | 06/2009 | 52207266128 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 09 | Seat cover leather right | JADEGRAU | 1 | 09/2009 | 52207266134 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 09 | Seat cover leather right | SCHWARZ | 1 | 52206972934 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 09 | Seat cover vinyl right | CREAMBEIGE | 1 | 52206972870 | $268.43 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 09 | Cover, seat, cloth/leather right | ANTHRAZIT | 1 | 52206972884 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 09 | Seat cover leather right | CREAMBEIGE | 1 | 52206972936 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 09 | Seat cover leather right | KORALLROT | 1 | 09/2009 | 52207266132 | $594.00 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 09 | Seat cover cloth right | ANTHRAZIT | 1 | 52206972856 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 09 | Seat cover cloth right | GRAU | 1 | 52206972858 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 09 | Cover, seat, cloth/leather right | ANTHRAZIT | 1 | 52208039784 | $444.08 | Shop at ECS Tuning | ||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 09 | Cover, seat, cloth/leather right | ANTHRAZIT | 1 | 52207843116 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 09 | Seat cover vinyl right | SCHWARZ | 1 | 52206972868 | $268.43 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 09 | Seat cover leather right | CAMEL | 1 | 52206972938 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 09 | Seat cover leather right | CREAMBEIGE | 1 | 06/2009 | 52207266130 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 09 | Seat cover leather right | SATTELBRAUN | 1 | 09/2009 | 52207266136 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 09 | Seat cover leather right | SCHWARZ | 1 | 06/2009 | 52207266126 | $594.00 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 10 | Seat cover leather left | GRAU | 1 | 06/2009 | 52207266127 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 10 | Seat cover leather left | JADEGRAU | 1 | 09/2009 | 52207266133 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 10 | Seat cover leather left | SCHWARZ | 1 | 52206972933 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 10 | Seat cover vinyl left | CREAMBEIGE | 1 | 52206972869 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 10 | Cover, seat, cloth/leather left | ANTHRAZIT | 1 | 52206972883 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 10 | Seat cover leather left | CREAMBEIGE | 1 | 52206972935 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 10 | Seat cover leather left | KORALLROT | 1 | 11/2009 | 52207266131 | $594.00 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 10 | Seat cover cloth left | ANTHRAZIT | 1 | 52206972855 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 10 | Seat cover cloth left | GRAU | 1 | 52206972857 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 10 | Cover, seat, cloth/leather left | ANTHRAZIT | 1 | 52208039783 | $444.08 | Shop at ECS Tuning | ||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 10 | Cover, seat, cloth/leather left | ANTHRAZIT | 1 | 52207843115 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 10 | Seat cover vinyl left | SCHWARZ | 1 | 52206972867 | $268.43 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 10 | Seat cover leather left | CAMEL | 1 | 52206972937 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 10 | Seat cover leather left | CREAMBEIGE | 1 | 06/2009 | 52207266129 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 10 | Seat cover leather left | SATTELBRAUN | 1 | 09/2009 | 52207266135 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 10 | Seat cover leather left | SCHWARZ | 1 | 06/2009 | 52207266125 | $594.00 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 11 | Side finisher, leather, left | GRAU | 1 | 06/2009 | 52207246615 | Shop at ECS Tuning | ||||
| 11 | Side finisher, leather, right | GRAU | 1 | 06/2009 | 52207246616 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 11 | Side finisher, leather, left | JADEGRAU | 1 | 52209110949 | $230.68 | Shop at ECS Tuning | ||||
| 11 | Side finisher, leather, right | JADEGRAU | 1 | 52209110950 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 11 | Side finisher, leather, left | SCHWARZ | 1 | 52209110955 | Shop at ECS Tuning | |||||
| 11 | Side finisher, leather, right | SCHWARZ | 1 | 52209110956 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 11 | Side section, imitation leather, left | CREAMBEIGE | 1 | 52209110933 | Shop at ECS Tuning | |||||
| 11 | Side section, imitation leather, right | CREAMBEIGE | 1 | 52209110934 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 11 | Side finisher, leather, left | ANTHRAZIT | 1 | 52209110937 | Shop at ECS Tuning | |||||
| 11 | Side finisher, leather, right | ANTHRAZIT | 1 | 52209110938 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 11 | Side finisher, leather, left | CREAMBEIGE | 1 | 52209110957 | Shop at ECS Tuning | |||||
| 11 | Side finisher, leather, right | CREAMBEIGE | 1 | 52209110958 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 11 | Side finisher, leather, left | KORALLROT | 1 | 52209110947 | $230.68 | Shop at ECS Tuning | ||||
| 11 | Side finisher, leather, right | KORALLROT | 1 | 52209110948 | $230.68 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 11 | Side finisher cloth, left | ANTHRAZIT | 1 | 52209110925 | Shop at ECS Tuning | |||||
| 11 | Side finisher cloth, right | ANTHRAZIT | 1 | 52209110926 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 11 | Side finisher cloth, left | GRAU | 1 | 52209110927 | Shop at ECS Tuning | |||||
| 11 | Side finisher cloth, right | GRAU | 1 | 52209110928 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 11 | Lateral trim panel left | ANTHRAZIT | 1 | 52208039797 | $136.87 | Shop at ECS Tuning | ||||
| 11 | Lateral trim panel right | ANTHRAZIT | 1 | 52208039798 | $136.87 | Shop at ECS Tuning | ||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 11 | Lateral trim panel left | ANTHRAZIT | 1 | 52207843011 | Shop at ECS Tuning | |||||
| 11 | Lateral trim panel right | ANTHRAZIT | 1 | 52207843012 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 11 | Side finisher, leather, left | SCHWARZ | 1 | 06/2009 | 52207246613 | Shop at ECS Tuning | ||||
| 11 | Side finisher, leather, right | SCHWARZ | 1 | 06/2009 | 52207246614 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 11 | Side section, imitation leather, left | SCHWARZ | 1 | 52209110931 | Shop at ECS Tuning | |||||
| 11 | Side section, imitation leather, right | SCHWARZ | 1 | 52209110932 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 11 | Side finisher, leather, left | CAMEL | 1 | 52209110959 | Shop at ECS Tuning | |||||
| 11 | Side finisher, leather, right | CAMEL | 1 | 52209110960 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 11 | Side finisher, leather, left | CREAMBEIGE | 1 | 06/2009 | 52207246617 | $237.57 | Shop at ECS Tuning | |||
| 11 | Side finisher, leather, right | CREAMBEIGE | 1 | 06/2009 | 52207246618 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 11 | Side finisher, leather, left | SATTELBRAUN | 1 | 52209110951 | $230.68 | Shop at ECS Tuning | ||||
| 11 | Side finisher, leather, right | SATTELBRAUN | 1 | 52209110952 | $230.68 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 12 | Padding | GRAU | 1 | 06/2009 | 52207246469 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 12 | Padding | JADEGRAU | 1 | 52206977158 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 12 | Padding | SCHWARZ | 1 | 52206977161 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 12 | Padding | BEIGE | 1 | 52206977150 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 12 | Padding | ANTHRAZIT | 1 | 52206977152 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 12 | Padding | CREAMBEIGE | 1 | 52206977162 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 12 | Padding | KORALLROT | 1 | 09/2011 | 52206977157 | $278.39 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 12 | Padding | ANTHRAZIT | 1 | 52206977146 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 12 | Padding | GRAU | 1 | 52206977147 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 12 | Padding | SCHWARZ | 1 | 52206977149 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 12 | Padding | CAMEL | 1 | 52206977163 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 12 | Padding | CREAMBEIGE | 1 | 06/2009 | 52207246470 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 12 | Padding | SATTELBRAUN | 1 | 09/2011 | 52206977159 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 12 | Padding | ANTHRAZIT | 1 | 52208039794 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 12 | Padding | SCHWARZ | 1 | 52207246468 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 13 | Cover isofix | GRAU | 4 | 52206970745 | $14.24 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 13 | Cover isofix | CREAMBEIGE | 4 | 52206970746 | $14.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 13 | Cover isofix | SCHWARZ | 4 | 52206970744 | $14.24 | Shop at ECS Tuning | ||||
| 14 | Clip | 1 | 52206961562 | $1.32 | Shop at ECS Tuning | |||||
| 15 | Clip, white | 2 | 52207157536 | $2.17 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 16 | Cover, belt reel, left | GRAU | 1 | 51466954389 | $16.63 | Shop at ECS Tuning | ||||
| 16 | Cover, belt reel, right | GRAU | 1 | 51466954390 | $16.63 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 16 | Cover, belt reel, left | CREAMBEIGE | 1 | 51466954391 | $16.63 | Shop at ECS Tuning | ||||
| 16 | Cover, belt reel, right | CREAMBEIGE | 1 | 51466954392 | $16.63 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes FHAT=Yes KASW=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 16 | Cover, belt reel, left | SCHWARZ | 1 | 51466954387 | $16.63 | Shop at ECS Tuning | ||||
| 16 | Cover, belt reel, right | SCHWARZ | 1 | 51466954388 | $16.63 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 325d Seat, rear, uphlstry/cover, load-through?
- This technical diagram illustrates the Seat, rear, uphlstry/cover, load-through within the Seats group for the 3 Series E92 325d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Seat carrier, rear left (Part #52206970729).
- Which models use the hardware listed in this Seat, rear, uphlstry/cover, load-through?
- The hardware and components featured in the Seat, rear, uphlstry/cover, load-through are specific to the 3 Series E92 325d produced during 2010. These technical specifications ensure that parts like the Seat carrier, rear left (52206970729) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, uphlstry/cover, load-through assembly?
- Each item in the Seat, rear, uphlstry/cover, load-through corresponds to the numbered list below the illustration. For the 3 Series E92 325d, you can identify the Seat carrier, rear left by locating its position on the schematic, which then links to the official BMW part number 52206970729 for the Seats section.
