Rear seat head restraint for BMW 3 Series E92 LCI 325xi (2013)

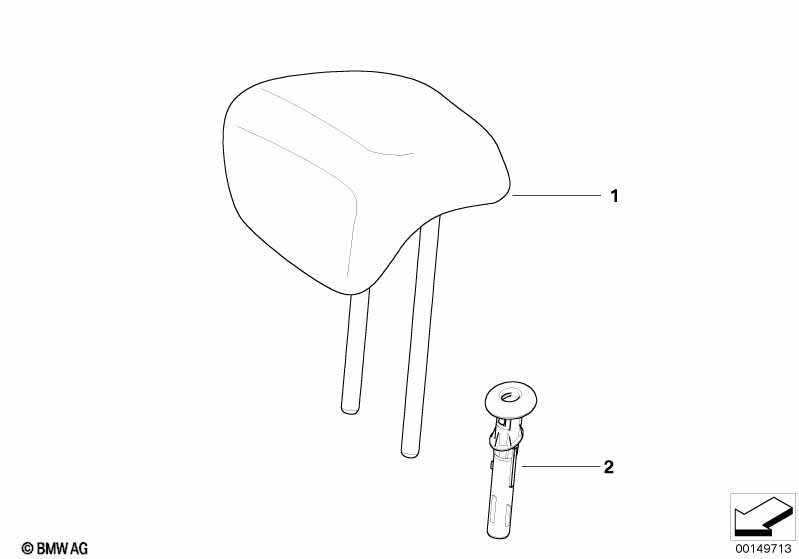

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 03/2010 | 52207256618 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Headrest leather | SATTELBRAUN | 2 | 52206978250 | $234.25 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | SATTELBRAUN | 2 | 52207256620 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 01 | Headrest imitation leather | CREAMBEIGE | 2 | 52206978241 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52206978252 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 01 | Headrest leather | CREAMBEIGE | 2 | 52206978253 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/contrast blue |
LCNH=Yes |
|||||||||
| 01 | Headrest leather | PERLGRAU | 2 | 52207302118 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 03/2010 | 52207258986 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 01 | Headrest leather | CAMEL | 2 | 52206978254 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52206978237 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52207843019 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52206978243 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/gray" |
AWAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 03/2010 | 52207258987 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52206978238 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Headrest leather | CREAMBEIGE | 2 | 06/2009 | 52207246473 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 06/2009 | 52207246472 | Shop at ECS Tuning | ||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207843021 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52206978240 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 52208039778 | $234.25 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 03/2010 | 52207259162 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 01 | Headrest leather | JADEGRAU | 2 | 52206978249 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 06/2009 | 52207246471 | $241.21 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau With button |
ALAD=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 2 | 52207152190 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau Without button |
ALAD=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 2 | 52207152192 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" With button |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 02 | Guide, headrest | CREAMBEIGE | 2 | 52206970742 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" Without button |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 02 | Guide, headrest | CREAMBEIGE | 2 | 52206970743 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black With button |
ALAT=Yes FHAT=Yes KASW=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 02 | Guide, headrest, lockable | SCHWARZ | 2 | 52207142041 | $5.87 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black Without button |
ALAT=Yes FHAT=Yes KASW=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52207142251 | $5.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 325xi Rear seat head restraint?
- This technical diagram illustrates the Rear seat head restraint within the Seats group for the 3 Series E92 LCI 325xi produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Headrest leather (Part #52207256618).
- Which models use the hardware listed in this Rear seat head restraint?
- The hardware and components featured in the Rear seat head restraint are specific to the 3 Series E92 LCI 325xi produced during 2013. These technical specifications ensure that parts like the Headrest leather (52207256618) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear seat head restraint assembly?
- Each item in the Rear seat head restraint corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 325xi, you can identify the Headrest leather by locating its position on the schematic, which then links to the official BMW part number 52207256618 for the Seats section.
