Seat, front, uphlstry, cover, Sport seat for BMW 3 Series E90 330i (2006)

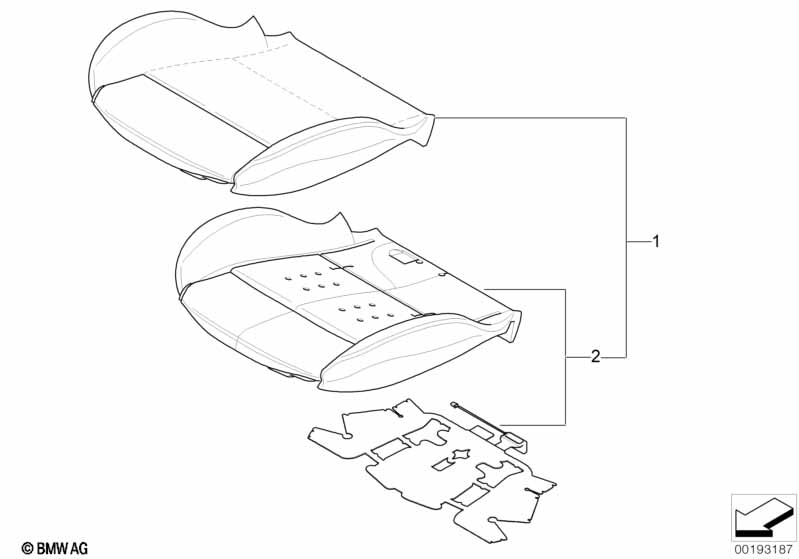

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Order only when needed do not stock |
|||||||||
| For vehicles with Leather "Dakota"/grau ONLY APPLIES TO CO-DRIVERS SIDE |
LCAD=Yes |
|||||||||
| 01 | Seat upholstery, leather | GRAU | 1 | 09/2006 | 52106979413 | $667.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sensatec/beige ONLY APPLIES TO CO-DRIVERS SIDE |
KAB4=Yes |
|||||||||
| 01 | Seat upholstery, imitation leather | BEIGE | 1 | 09/2006 | 52106979411 | $570.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/terra ONLY APPLIES TO CO-DRIVERS SIDE |
LCB8=Yes |
|||||||||
| 01 | Seat upholstery, leather | TERRA | 1 | 09/2006 | 52106979416 | $667.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/beige ONLY APPLIES TO CO-DRIVERS SIDE |
LCB4=Yes |
|||||||||
| 01 | Seat upholstery, leather | BEIGE | 1 | 09/2006 | 52106979414 | $667.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/schwarz ONLY APPLIES TO CO-DRIVERS SIDE |
LCSW=Yes |
|||||||||
| 01 | Seat upholstery, leather | SCHWARZ | 1 | 09/2006 | 52106979412 | $667.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/lemon ONLY APPLIES TO CO-DRIVERS SIDE |
LCB7=Yes |
|||||||||
| 01 | Seat upholstery, leather | LEMON | 1 | 09/2006 | 52106979415 | $648.27 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sensatec/black ONLY APPLIES TO CO-DRIVERS SIDE |
KASW=Yes |
|||||||||
| 01 | Seat upholstery, imitation leather | SCHWARZ | 1 | 09/2006 | 52106979410 | $570.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Rework kit sport | OC3 | 1 | 52107241720 | $21.65 | Shop at ECS Tuning | ||||
| 02 | Sports seat upholstery parts, right | OC3 | 1 | 52107244128 | $521.24 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
