Front seat backrest frame/rear panel for BMW 5 Series E60 523Li (2023)

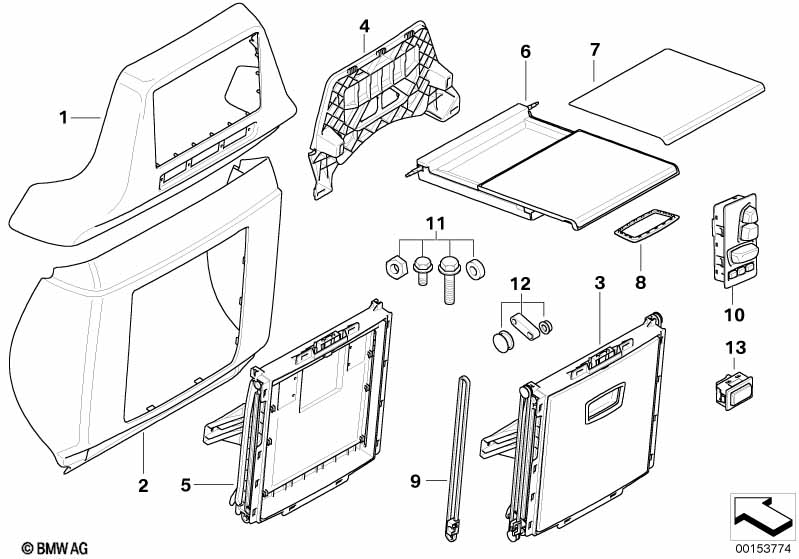

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat with memory and Individual rear-compartment entertainm. |
S456A=Yes S6M1A=Yes |
||||||||
| 01 | Upper rear panel | CREAMBEIGE | 2 | 52107840553 | ENDED | Shop at ECS Tuning | ||||
| 01 | Upper rear panel | SCHWARZ | 2 | 52108038368 | ENDED | Shop at ECS Tuning | ||||
| 01 | Upper rear panel | BEIGE | 2 | 52108038369 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower rear panel | CREAMBEIGE | 1 | 52107840552 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower rear panel | SCHWARZ | 1 | 52108038214 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Lower rear panel | BEIGE | 1 | 52108038215 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Individual folding table in rear |
S4M2A=Yes |
|||||||||
| 02 | Lower rear panel | CREAMBEIGE | 1 | 52107840551 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower rear panel | SCHWARZ | 1 | 52108038217 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower rear panel | BEIGE | 1 | 52108038218 | ENDED | Shop at ECS Tuning | ||||
| 03 | Folding table | SCHWARZ | 1 | 52108038223 | ENDED | Shop at ECS Tuning | ||||
| 03 | Folding table | BEIGE | 1 | 52108038224 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim panel bracket | 8", CREAMBEIGE | 2 | 65507840561 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Trim panel bracket | 8", SCHWARZ | 2 | 65508038493 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim panel bracket | 8", BEIGE | 2 | 65508038494 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support, rear panel | 2 | 52108038362 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Individual folding table in rear |
S4M2A=Yes |
|||||||||
| 05 | Support, rear panel | 1 | 52108038362 | ENDED | Shop at ECS Tuning | |||||
| 06 | Folding table | SCHWARZ | 1 | 52108039398 | ENDED | Shop at ECS Tuning | ||||
| 06 | Folding table | BEIGE | 1 | 52108039399 | ENDED | Shop at ECS Tuning | ||||
| 07 | Table panel | SCHWARZ | 1 | 52108039401 | ENDED | Shop at ECS Tuning | ||||
| 07 | Table panel | BEIGE | 1 | 52108039402 | ENDED | Shop at ECS Tuning | ||||
| 08 | Frame | SCHWARZ | 1 | 52108039404 | ENDED | Shop at ECS Tuning | ||||
| 08 | Frame | BEIGE | 1 | 52108039405 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tooth belt | 1 | 52108039406 | ENDED | Shop at ECS Tuning | |||||
| 10 | Switch, seat adjustment | CREAMBEIGE | 1 | 61317840548 | ENDED | Shop at ECS Tuning | ||||
| 10 | Switch, seat adjustment | SCHWARZ | 1 | 61318039729 | ENDED | Shop at ECS Tuning | ||||
| 10 | Switch, seat adjustment | BEIGE | 1 | 61318039730 | ENDED | Shop at ECS Tuning | ||||
| 11 | set of fittings for backrest rear panel | 1 | 52108039407 | ENDED | Shop at ECS Tuning | |||||
| 12 | Repair kit folding table | 1 | 52108039408 | ENDED | Shop at ECS Tuning | |||||
| 13 | Switch RSI | 1 | 61318037157 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
