Seat rear, upholstery & cover base seat for BMW 3 Series E93 320d (2010)

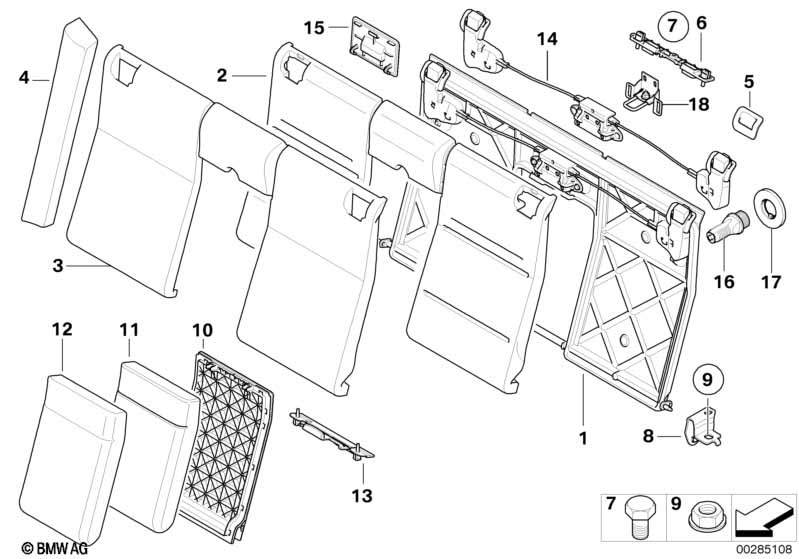

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau |
AWAD=Yes LCAD=Yes |
|||||||||
| 01 | backrest frame el. fa | GRAU | 1 | 52209113319 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 01 | backrest frame el. fa | CREAMBEIGE | 1 | 52209113320 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/anthracite" or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
ANAT=Yes AWAT=Yes KASW=Yes LCAD=Yes LCD1=Yes LCD3=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | backrest frame el. fa | SCHWARZ | 1 | 52209113318 | Shop at ECS Tuning | |||||
| 02 | Backrest upholstery | 1 | 52209113031 | $236.64 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | SCHWARZ | 1 | 52209112347 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 06/2009 | 52207246640 | $940.25 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52209112357 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 03 | Cover backrest, leather | SATTELBRAUN | 1 | 06/2009 | 52207257174 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | CREAMBEIGE | 1 | 52209112348 | $427.31 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 03 | Cover backrest, leather | GRAU | 1 | 06/2009 | 52207246647 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 03 | Cover backrest, leather | CREAMBEIGE | 1 | 06/2009 | 52207246648 | $940.25 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 03 | Cover backrest, leather | JADEGRAU | 1 | 06/2009 | 52207257173 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/perl-grau/contrast blue |
LCNH=Yes |
|||||||||
| 03 | Cover backrest, leather | PERLGRAU | 1 | 52207302220 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 03 | Cover backrest, leather | CAMEL | 1 | 52209112359 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 03 | Cover backrest, leather | CREAMBEIGE | 1 | 52209112358 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209112344 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 03 | Cover backrest, leather | KORALLROT | 1 | 06/2009 | 52207257166 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 09/2009 | 52207843030 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 03 | Cover backrest cloth | GRAU | 1 | 52209112345 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52208039638 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 04 | Side section, imitation leather, left | SCHWARZ | 1 | 52209120377 | Shop at ECS Tuning | |||||
| 04 | Side section, imitation leather, right | SCHWARZ | 1 | 52209120378 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 04 | Side finisher, leather, left | SCHWARZ | 1 | 52209120393 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | SCHWARZ | 1 | 52209120394 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 04 | Side finisher, leather, left | SATTELBRAUN | 1 | 06/2009 | 52207257191 | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | SATTELBRAUN | 1 | 06/2009 | 52207257192 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 04 | Side section, imitation leather, left | CREAMBEIGE | 1 | 52209120379 | Shop at ECS Tuning | |||||
| 04 | Side section, imitation leather, right | CREAMBEIGE | 1 | 52209120380 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 04 | Side finisher, leather, left | GRAU | 1 | 06/2009 | 52207246663 | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | GRAU | 1 | 06/2009 | 52207246664 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 04 | Side finisher, leather, left | CREAMBEIGE | 1 | 06/2009 | 52207246665 | $208.49 | Shop at ECS Tuning | |||
| 04 | Side finisher, leather, right | CREAMBEIGE | 1 | 06/2009 | 52207246666 | $208.49 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 04 | Side finisher, leather, left | JADEGRAU | 1 | 06/2009 | 52207257189 | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | JADEGRAU | 1 | 06/2009 | 52207257190 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 04 | Side finisher, leather, left | CAMEL | 1 | 52209120397 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | CAMEL | 1 | 52209120398 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 04 | Side finisher, leather, left | CREAMBEIGE | 1 | 52209120395 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | CREAMBEIGE | 1 | 52209120396 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 04 | Side finisher cloth, left | ANTHRAZIT | 1 | 52209120373 | Shop at ECS Tuning | |||||
| 04 | Side finisher cloth, right | ANTHRAZIT | 1 | 52209120374 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 04 | Side finisher, leather, left | KORALLROT | 1 | 06/2009 | 52207257187 | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | KORALLROT | 1 | 06/2009 | 52207257188 | Shop at ECS Tuning | ||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 04 | Side finisher cloth, left | ANTHRAZIT | 1 | 52207843013 | Shop at ECS Tuning | |||||
| 04 | Side finisher cloth, right | ANTHRAZIT | 1 | 52207843014 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 04 | Side finisher cloth, left | ANTHRAZIT | 1 | 52208039647 | Shop at ECS Tuning | |||||
| 04 | Side finisher cloth, right | ANTHRAZIT | 1 | 52208039648 | $148.53 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 04 | Side finisher cloth, left | GRAU | 1 | 52209120375 | Shop at ECS Tuning | |||||
| 04 | Side finisher cloth, right | GRAU | 1 | 52209120376 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Side finisher, leather, left | SCHWARZ | 1 | 06/2009 | 52207246661 | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | SCHWARZ | 1 | 06/2009 | 52207246662 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 05 | Cover, release | JADEGRAU | 2 | 52209145089 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 05 | Cover, release | CAMEL | 2 | 52209145090 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau |
AWAD=Yes LCAD=Yes |
|||||||||
| 05 | Cover, release | GRAU | 2 | 52209113325 | $13.43 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 05 | Cover, release | CREAMBEIGE | 2 | 52209113326 | $13.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/anthracite" or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
ANAT=Yes AWAT=Yes KASW=Yes LCAD=Yes LCD1=Yes LCD3=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 05 | Cover, release | SCHWARZ | 2 | 52209113324 | $13.43 | Shop at ECS Tuning | ||||
| 06 | Cover for armrest release | 1 | 52209113036 | $13.30 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | ST4X10 ZNS3 | 1 | 52209113040 | $1.73 | Shop at ECS Tuning | ||||
| 08 | Bearing exterior left | 1 | 52209113037 | $5.86 | Shop at ECS Tuning | |||||
| 08 | Bearing exterior right | 1 | 52209113038 | $5.86 | Shop at ECS Tuning | |||||
| 09 | Nut | M8 | 2 | 52209113039 | $1.48 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau |
AWAD=Yes LCAD=Yes |
|||||||||
| 10 | Supporting part, filler | GRAU | 1 | 52209113322 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 10 | Supporting part, filler | CREAMBEIGE | 1 | 52209113323 | $38.59 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/anthracite" or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
ANAT=Yes AWAT=Yes KASW=Yes LCAD=Yes LCD1=Yes LCD3=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 10 | Supporting part, filler | SCHWARZ | 1 | 52209113321 | $38.59 | Shop at ECS Tuning | ||||
| 11 | Foam filling part | 1 | 52209113032 | $27.62 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 12 | Cover insert imitation leather | SCHWARZ | 1 | 52209112384 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 12 | Cover insert leather | SCHWARZ | 1 | 52209112394 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 12 | Cover insert leather | JADEGRAU | 1 | 06/2009 | 52207257185 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 12 | Cover insert imitation leather | CREAMBEIGE | 1 | 52209112385 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 12 | Cover insert leather | GRAU | 1 | 06/2009 | 52207246659 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 12 | Cover insert leather | CREAMBEIGE | 1 | 06/2009 | 52207246660 | $286.68 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 12 | Cover insert leather | CAMEL | 1 | 52209112396 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 12 | Cover insert leather | CREAMBEIGE | 1 | 52209112395 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 12 | Cover insert cloth | ANTHRAZIT | 1 | 52209112381 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 12 | Cover insert leather | KORALLROT | 1 | 06/2009 | 52207257178 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 12 | Cover insert cloth | GRAU | 1 | 52209112382 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 12 | Cover insert cloth | ANTHRAZIT | 1 | 52208039644 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 12 | Cover insert leather | SCHWARZ | 1 | 06/2009 | 52207246652 | $286.68 | +core | Shop at ECS Tuning | ||
| 13 | Unlocking unit | 1 | 52209113035 | $23.38 | Shop at ECS Tuning | |||||
| 14 | Release, backrest frame | 1 | 52209113046 | $121.51 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau |
AWAD=Yes LCAD=Yes |
|||||||||
| 16 | Stopper | GRAU | 4 | 52209117731 | $10.23 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 16 | Stopper | CREAMBEIGE | 4 | 52209117733 | $10.23 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Sensatec/cream-beige or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather "Dakota"/creambeige or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel |
ANAT=Yes AWAD=Yes AWAT=Yes KAGE=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD3=Yes LCGE=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes |
|||||||||
| 16 | Stopper | SCHWARZ | 4 | 52209117729 | $10.23 | Shop at ECS Tuning | ||||
| 17 | Cover | SCHWARZ | 2 | 52207188652 | $4.27 | Shop at ECS Tuning | ||||
| 17 | Cover | GRAU | 2 | 52207188653 | Shop at ECS Tuning | |||||
| 17 | Cover | CREAMBEIGE | 2 | 52207188654 | Shop at ECS Tuning | |||||
| 18 | Catch bracket | 1 | 52209124124 | Shop at ECS Tuning | ||||||
