Seat rear, upholstery & cover base seat for BMW 3 Series E93 325d (2010)

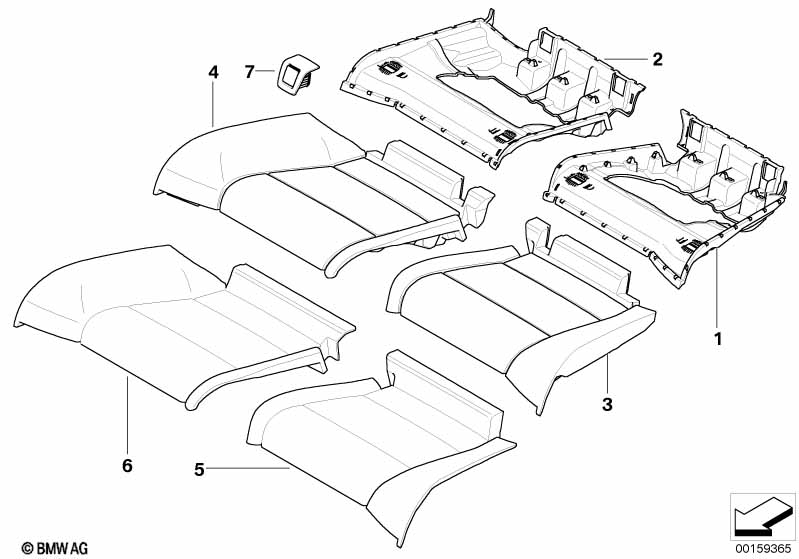

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat carrier, rear left | 1 | 52209113027 | $48.24 | Shop at ECS Tuning | |||||
| 02 | Seat carrier, rear right | 1 | 52209113028 | $48.24 | Shop at ECS Tuning | |||||
| 03 | Seat upholstery, left | 1 | 52209113029 | $122.29 | Shop at ECS Tuning | |||||
| 04 | Seat upholstery, right | 1 | 52209113030 | $122.29 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 05 | Seat cover leather left | GRAU | 1 | 06/2009 | 52207246643 | $530.27 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 05 | Seat cover cloth left | ANTHRAZIT | 1 | 52209112365 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 05 | Seat cover leather left | SATTELBRAUN | 1 | 06/2009 | 52207257171 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 05 | Seat cover leather left | JADEGRAU | 1 | 06/2009 | 52207257169 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 05 | Seat cover cloth left | ANTHRAZIT | 1 | 52208039635 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 05 | Seat cover leather left | CAMEL | 1 | 52209118605 | Shop at ECS Tuning | |||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 05 | Seat cover cloth left | ANTHRAZIT | 1 | 52207842951 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 05 | Seat cover leather left | SCHWARZ | 1 | 52209112377 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 05 | Seat cover leather left | CREAMBEIGE | 1 | 06/2009 | 52207246645 | $530.29 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 05 | Seat cover leather left | KORALLROT | 1 | 06/2009 | 52207257167 | $530.29 | +core | Shop at ECS Tuning | ||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 05 | Seat cover vinyl left | CREAMBEIGE | 1 | 52209112373 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 05 | Seat cover cloth left | GRAU | 1 | 52209112367 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 05 | Seat cover vinyl left | SCHWARZ | 1 | 52209112371 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 05 | Seat cover leather left | CREAMBEIGE | 1 | 52209112361 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 05 | Seat cover leather left | SCHWARZ | 1 | 06/2009 | 52207246641 | $530.29 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Seat cover leather right | GRAU | 1 | 06/2009 | 52207246644 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 06 | Seat cover cloth right | ANTHRAZIT | 1 | 52209112366 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 06 | Seat cover leather right | SATTELBRAUN | 1 | 06/2009 | 52207257172 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 06 | Seat cover leather right | JADEGRAU | 1 | 06/2009 | 52207257170 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 06 | Seat cover cloth right | ANTHRAZIT | 1 | 52208039636 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 06 | Seat cover leather right | CAMEL | 1 | 52209118606 | Shop at ECS Tuning | |||||
| For vehicles with Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANNK=Yes |
|||||||||
| 06 | Seat cover cloth right | ANTHRAZIT | 1 | 52207842952 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 06 | Seat cover leather right | SCHWARZ | 1 | 52209112378 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 06 | Seat cover leather right | CREAMBEIGE | 1 | 06/2009 | 52207246646 | $530.29 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 06 | Seat cover leather right | KORALLROT | 1 | 06/2009 | 52207257168 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 06 | Seat cover vinyl right | CREAMBEIGE | 1 | 52209112374 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 06 | Seat cover cloth right | GRAU | 1 | 52209112368 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Seat cover vinyl right | SCHWARZ | 1 | 52209112372 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 06 | Seat cover leather right | CREAMBEIGE | 1 | 52209112362 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 06 | Seat cover leather right | SCHWARZ | 1 | 06/2009 | 52207246642 | $530.29 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 07 | Cover isofix | JADEGRAU | 4 | 52209145087 | Shop at ECS Tuning | |||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 07 | Cover isofix | CAMEL | 4 | 52209145088 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 07 | Cover isofix | GRAU | 4 | 52209112424 | $7.43 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 07 | Cover isofix | CREAMBEIGE | 4 | 52209112425 | $7.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Sensatec/black or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes KASW=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 07 | Cover isofix | SCHWARZ | 4 | 52209112423 | $7.43 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 325d Seat rear, upholstery & cover base seat?
- This technical diagram illustrates the Seat rear, upholstery & cover base seat within the Seats group for the 3 Series E93 325d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Seat carrier, rear left (Part #52209113027).
- Which models use the hardware listed in this Seat rear, upholstery & cover base seat?
- The hardware and components featured in the Seat rear, upholstery & cover base seat are specific to the 3 Series E93 325d produced during 2010. These technical specifications ensure that parts like the Seat carrier, rear left (52209113027) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rear, upholstery & cover base seat assembly?
- Each item in the Seat rear, upholstery & cover base seat corresponds to the numbered list below the illustration. For the 3 Series E93 325d, you can identify the Seat carrier, rear left by locating its position on the schematic, which then links to the official BMW part number 52209113027 for the Seats section.
