Single parts of front seat controls for BMW 3 Series E93 325i (2010)

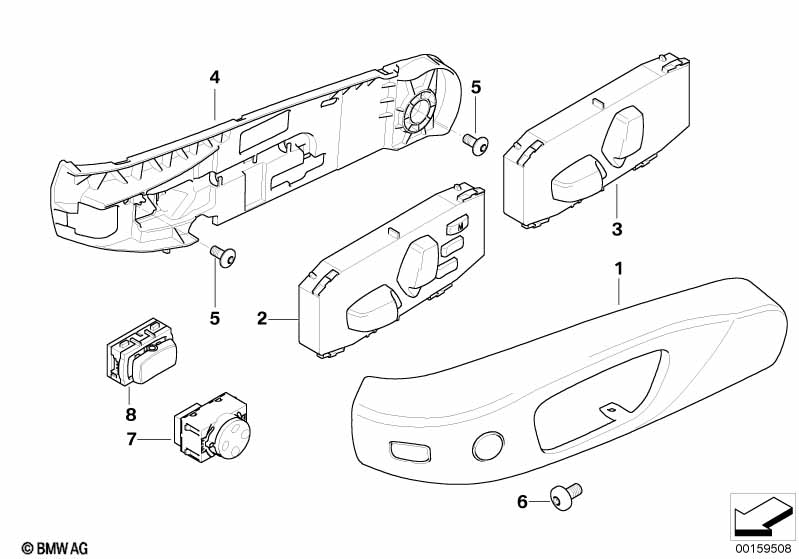

This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau |
AWAD=Yes LCAD=Yes |
|||||||||
| 01 | Covering outer left | GRAU | 1 | 52109128769 | $22.65 | Shop at ECS Tuning | ||||
| 01 | Covering outer right | GRAU | 1 | 52109128770 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 01 | Covering outer left | CREAMBEIGE | 1 | 52109128771 | $22.65 | Shop at ECS Tuning | ||||
| 01 | Covering outer right | CREAMBEIGE | 1 | 52109128772 | $22.65 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/anthracite" or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel |
ANAT=Yes AWAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes |
|||||||||
| 01 | Covering outer left | SCHWARZ | 1 | 52109128767 | $22.65 | Shop at ECS Tuning | ||||
| 01 | Covering outer right | SCHWARZ | 1 | 52109128768 | $22.65 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Switch seat adjusting front left | 1 | 61316936977 | $154.88 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO CO-DRIVERS SIDE |
S459A=Yes |
|||||||||
| 03 | Switch seat adjusting front right | 1 | 61316972656 | $154.88 | Shop at ECS Tuning | |||||
| 04 | Support f left seat adjustment | 1 | 52106988159 | $16.12 | Shop at ECS Tuning | |||||
| 04 | Support f right seat adjustment | 1 | 52106988160 | $16.12 | Shop at ECS Tuning | |||||
| 05 | Torx screw | M6X20 T30 | 2 | 07/2007 | 07149168393 | $1.02 | Shop at ECS Tuning | |||
| 06 | Screw | M5X6 T20 | 2 | 52108099043 | $0.46 | Shop at ECS Tuning | ||||
| 07 | Left lumbar support switch | 1 | 61318352291 | $60.61 | Shop at ECS Tuning | |||||
| 07 | Right lumbar support switch | 1 | 61318360877 | $60.61 | Shop at ECS Tuning | |||||
| 08 | Switch for rear entry assist | 2 | 61319227853 | +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
