Front seat frame mech./el./singl.parts for BMW 3 Series E93 LCI 330i (2013)

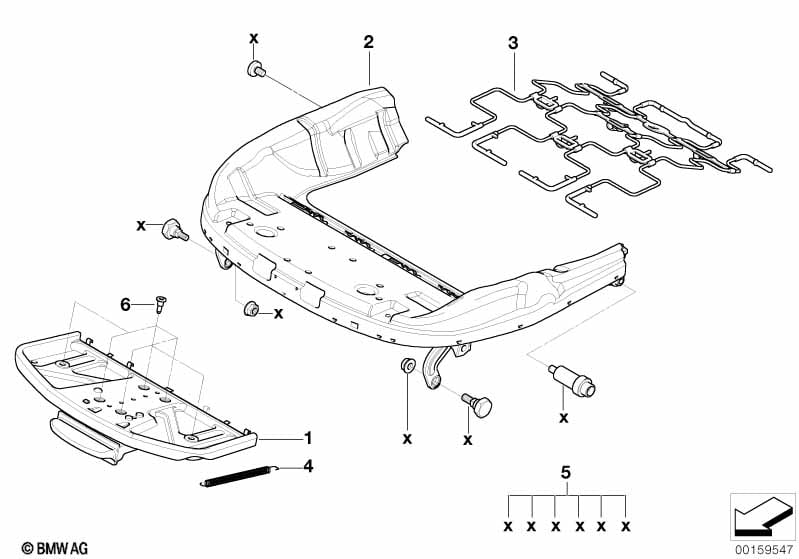

This Front seat frame mech./el./singl.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier thigh support | 2 | 52108226281 | $61.70 | Shop at ECS Tuning | |||||
| 02 | Seat pan left | 1 | 52108267391 | $49.65 | Shop at ECS Tuning | |||||
| 02 | Seat pan, right | 1 | 52108267392 | $49.65 | Shop at ECS Tuning | |||||
| 03 | Elastic mat | 2 | 52108267395 | $24.73 | Shop at ECS Tuning | |||||
| 04 | Spring | 2 | 52108099031 | $1.93 | Shop at ECS Tuning | |||||
| 05 | Mounting parts set | 2 | 52107011759 | $10.22 | Shop at ECS Tuning | |||||
| 06 | set of fittings for thigh support | 2 | 52108240496 | $4.42 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 LCI 330i Front seat frame mech./el./singl.parts?
- This technical diagram illustrates the Front seat frame mech./el./singl.parts within the Seats group for the 3 Series E93 LCI 330i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Carrier thigh support (Part #52108226281).
- Which models use the hardware listed in this Front seat frame mech./el./singl.parts?
- The hardware and components featured in the Front seat frame mech./el./singl.parts are specific to the 3 Series E93 LCI 330i produced during 2013. These technical specifications ensure that parts like the Carrier thigh support (52108226281) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat frame mech./el./singl.parts assembly?
- Each item in the Front seat frame mech./el./singl.parts corresponds to the numbered list below the illustration. For the 3 Series E93 LCI 330i, you can identify the Carrier thigh support by locating its position on the schematic, which then links to the official BMW part number 52108226281 for the Seats section.
