Rear seat ski bag for BMW 1 Series E81 120i (2011)

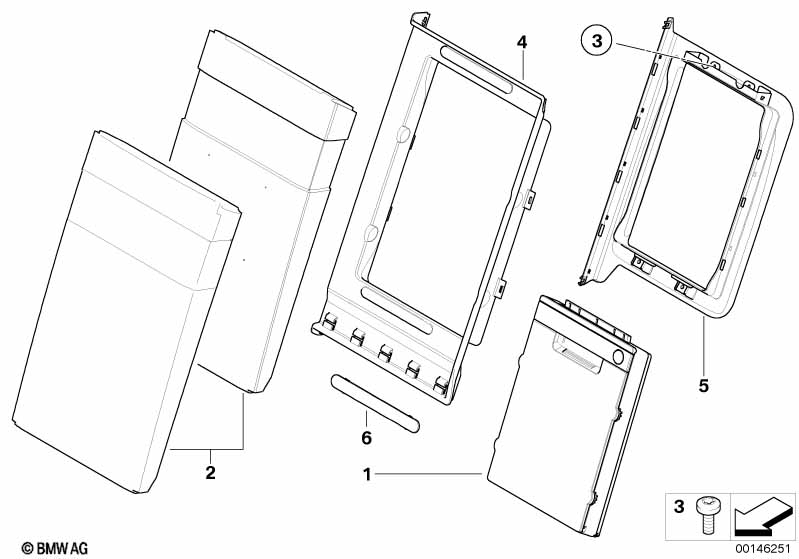

This Rear seat ski bag technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Ski bag |
S468A=Yes |
|||||||||
| 01 | Ski bag | SCHWARZ | 1 | 52209168962 | $275.10 | Shop at ECS Tuning | ||||
| For vehicles with 5-seater and Ski bag |
S4UKA=Yes S468A=Yes |
|||||||||
| 01 | Ski bag | SCHWARZ | 1 | 03/2009 | 52207261314 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey |
EAAL=Yes |
|||||||||
| 02 | Filler piece, cloth | ANTHRAZIT | 1 | 52209158937 | $107.07 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 02 | Filler piece, cloth | ANTHRAZIT | 1 | 52209158938 | $109.23 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 02 | Filler piece, cloth | MONACOBLAU | 1 | 52209158939 | $109.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 02 | Filler piece, leather | SAVANNABEIGE | 1 | 52207247154 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 02 | Filler piece, cloth | ANTHRAZIT | 1 | 52209158936 | $107.07 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 02 | Filler piece, leather | ANTHRAZIT | 1 | 10/2009 | 52207263336 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/magma' |
FHDR=Yes |
|||||||||
| 02 | Filler piece, leather | MAGMABRAUN | 1 | 52207263339 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 02 | Filler piece, leather | LEMON | 1 | 52209158949 | $238.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 02 | Filler piece, leather | KORALLROT | 1 | 52209158948 | $238.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 02 | Filler piece, leather | ALASKAGRAU | 1 | 52209158945 | $238.49 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 02 | Filler piece, leather | ORANGE | 1 | 10/2009 | 52207263337 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 02 | Filler piece, imitation leather | SCHWARZ | 1 | 52209158952 | $109.23 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/cranberry-red |
AUF8=Yes |
|||||||||
| 02 | Filler piece, cloth | CRANBERRYROT | 1 | 52209158940 | $107.07 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 02 | Filler piece, leather | BEIGE | 1 | 52207257000 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 02 | Filler piece, imitation leather | BEIGE | 1 | 52209158953 | $109.23 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' |
FHF6=Yes |
|||||||||
| 02 | Filler piece, leather | LEMON | 1 | 10/2009 | 52207263338 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 02 | Filler piece, leather | TERRA | 1 | 52209158947 | $238.49 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' |
GCNL=Yes GCSW=Yes |
|||||||||
| 02 | Filler piece, imitation leather | SCHWARZ | 1 | 52209158951 | $109.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/black/Contrast orange or Leather "Boston"/ black |
LWNZ=Yes LWSW=Yes |
|||||||||
| 02 | Filler piece, leather | SCHWARZ | 1 | 52207247153 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | ISA M6X28 | 4 | 07146952304 | $5.62 | Shop at ECS Tuning | ||||
| 04 | Ski bag cover | SCHWARZ | 1 | 52207142260 | $18.60 | Shop at ECS Tuning | ||||
| 05 | Frame ski bag | SCHWARZ | 1 | 52207142257 | $58.00 | Shop at ECS Tuning | ||||
| 06 | Cover | SCHWARZ | 2 | 52207142264 | $5.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
