Front seat rail electrical/single parts for BMW 1 Series E88 120i (2013)

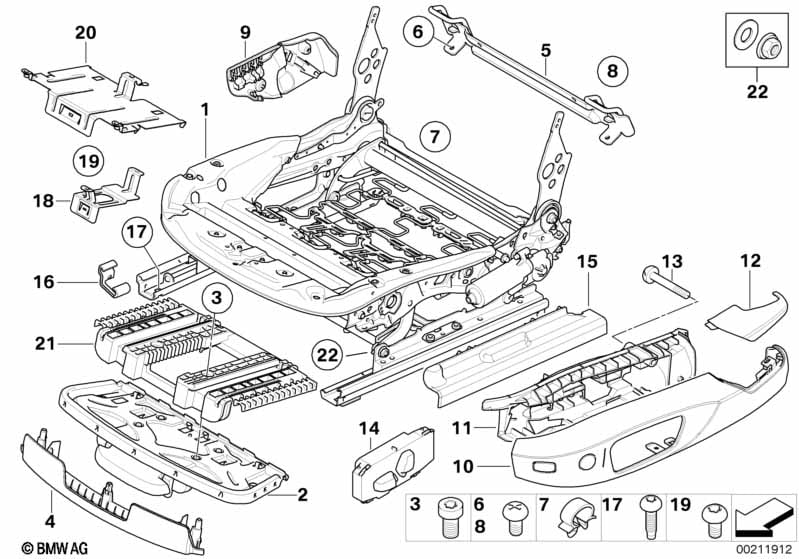

This Front seat rail electrical/single parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO DRIVER'S SIDE Suitable for basic seat Also suitable for Sport seat = Option 481 |
S459A=Yes |
|||||||||
| 01 | Electrical seat mechanism, right | 1 | 03/2010 | 52107274470 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Support f right seat adjustment | 1 | 03/2010 | 52106979656 | $16.12 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO CO-DRIVERS SIDE Suitable for basic seat Also suitable for Sport seat = Option 481 |
S459A=Yes |
|||||||||
| 01 | Electrical seat mechanism, left | 1 | 03/2010 | 52107274471 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Support f left seat adjustment | 1 | 03/2010 | 52106979655 | $16.12 | Shop at ECS Tuning | ||||
| -- | Support f right seat adjustment | 1 | 03/2010 | 52106979656 | $16.12 | Shop at ECS Tuning | ||||
| 02 | Carrier thigh support | 2 | 52107161311 | $55.77 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | BL 7,2X22 | 4 | 52107160653 | $0.42 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey |
EAAL=Yes LWAL=Yes |
|||||||||
| 04 | Seat trim, left | ALASKAGRAU | 1 | 52109129313 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | ALASKAGRAU | 1 | 52109129314 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 04 | Seat trim, left | BEIGE | 1 | 52106958663 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | BEIGE | 1 | 52106958664 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite or Fabric "Network"/Monaco blue or Fabric "Network/magma-braun" or Fabric "Network"/cranberry-red or Cloth "Elektra"/alaska-grey or Cloth "Elektra"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Fabric/leather 'Pearlpoint/magma' or Fabric/leather 'Pearlpoint/orange' or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' or Sensatec/black or Leather Dakota/perl-grau or Leather "Boston"/alaska-grey or Leather "Boston"/beige or Leather "Boston"/lemon or Leather "Boston/terra" or Leather Boston/oyster or Leather "Boston"/korall-red or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AUAT=Yes AUD9=Yes AUDR=Yes AUF8=Yes EAAL=Yes EAAT=Yes FHAT=Yes FHDR=Yes FHF5=Yes GCNL=Yes GCSW=Yes KASW=Yes LCPF=Yes LWAL=Yes LWB4=Yes LWB7=Yes LWB8=Yes LWCX=Yes LWD1=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 04 | Seat trim, left | SCHWARZ | 1 | 52106958659 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | SCHWARZ | 1 | 52106958660 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 05 | Isofix bracket | 1 | 52107129838 | $24.73 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X12 | 2 | 07147144879 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X8 | 2 | 07147144880 | $0.96 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey |
EAAL=Yes LWAL=Yes |
|||||||||
| 09 | Trim, seat inner left | ALASKAGRAU | 1 | 52109129291 | $4.07 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | ALASKAGRAU | 1 | 52109129292 | $4.07 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 09 | Trim, seat inner left | BEIGE | 1 | 52109129293 | $4.07 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | BEIGE | 1 | 52109129294 | $4.07 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite or Fabric "Network"/Monaco blue or Fabric "Network/magma-braun" or Fabric "Network"/cranberry-red or Cloth "Elektra"/alaska-grey or Cloth "Elektra"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Fabric/leather 'Pearlpoint/magma' or Fabric/leather 'Pearlpoint/orange' or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' or Sensatec/black or Leather Dakota/perl-grau or Leather "Boston"/alaska-grey or Leather "Boston"/beige or Leather "Boston"/lemon or Leather "Boston/terra" or Leather Boston/oyster or Leather "Boston"/korall-red or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AUAT=Yes AUD9=Yes AUDR=Yes AUF8=Yes EAAL=Yes EAAT=Yes FHAT=Yes FHDR=Yes FHF5=Yes GCNL=Yes GCSW=Yes KASW=Yes LCPF=Yes LWAL=Yes LWB4=Yes LWB7=Yes LWB8=Yes LWCX=Yes LWD1=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 09 | Trim, seat inner left | SCHWARZ | 1 | 52106979325 | $10.43 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | SCHWARZ | 1 | 52106979326 | $10.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey |
EAAL=Yes LWAL=Yes |
|||||||||
| 10 | Trim, seat outer left | ALASKAGRAU | 1 | 52109129309 | $12.81 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | ALASKAGRAU | 1 | 52109129310 | $12.81 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 10 | Trim, seat outer left | BEIGE | 1 | 52106979649 | $12.81 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | BEIGE | 1 | 52106979650 | $12.81 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite or Fabric "Network"/Monaco blue or Fabric "Network/magma-braun" or Fabric "Network"/cranberry-red or Cloth "Elektra"/alaska-grey or Cloth "Elektra"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Fabric/leather 'Pearlpoint/magma' or Fabric/leather 'Pearlpoint/orange' or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' or Sensatec/black or Leather Dakota/perl-grau or Leather "Boston"/alaska-grey or Leather "Boston"/beige or Leather "Boston"/lemon or Leather "Boston/terra" or Leather Boston/oyster or Leather "Boston"/korall-red or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AUAT=Yes AUD9=Yes AUDR=Yes AUF8=Yes EAAL=Yes EAAT=Yes FHAT=Yes FHDR=Yes FHF5=Yes GCNL=Yes GCSW=Yes KASW=Yes LCPF=Yes LWAL=Yes LWB4=Yes LWB7=Yes LWB8=Yes LWCX=Yes LWD1=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 10 | Trim, seat outer left | SCHWARZ | 1 | 52106979645 | $12.81 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | SCHWARZ | 1 | 52106979646 | $12.81 | Shop at ECS Tuning | ||||
| 11 | Support f left seat adjustment | 1 | 52106979655 | $16.12 | Shop at ECS Tuning | |||||
| 11 | Support f right seat adjustment | 1 | 52106979656 | $16.12 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey |
EAAL=Yes LWAL=Yes |
|||||||||
| 12 | Cover, belt catch left | ALASKAGRAU | 1 | 52109129305 | Shop at ECS Tuning | |||||
| 12 | Cover, belt catch right | ALASKAGRAU | 1 | 52109129306 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 12 | Cover, belt catch left | BEIGE | 1 | 52109129307 | Shop at ECS Tuning | |||||
| 12 | Cover, belt catch right | BEIGE | 1 | 52109129308 | $3.88 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite or Fabric "Network"/Monaco blue or Fabric "Network/magma-braun" or Fabric "Network"/cranberry-red or Cloth "Elektra"/alaska-grey or Cloth "Elektra"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Fabric/leather 'Pearlpoint/magma' or Fabric/leather 'Pearlpoint/orange' or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' or Sensatec/black or Leather Dakota/perl-grau or Leather "Boston"/alaska-grey or Leather "Boston"/beige or Leather "Boston"/lemon or Leather "Boston/terra" or Leather Boston/oyster or Leather "Boston"/korall-red or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AUAT=Yes AUD9=Yes AUDR=Yes AUF8=Yes EAAL=Yes EAAT=Yes FHAT=Yes FHDR=Yes FHF5=Yes GCNL=Yes GCSW=Yes KASW=Yes LCPF=Yes LWAL=Yes LWB4=Yes LWB7=Yes LWB8=Yes LWCX=Yes LWD1=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 12 | Cover, belt catch left | SCHWARZ | 1 | 52106979637 | $3.88 | Shop at ECS Tuning | ||||
| 12 | Cover, belt catch right | SCHWARZ | 1 | 52106979638 | $3.88 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M6 | 4 | 07146964281 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 14 | Switch seat adjusting front left | 1 | 61319265263 | Shop at ECS Tuning | ||||||
| 14 | Switch seat adjusting front right | 1 | 61319275070 | Shop at ECS Tuning | ||||||
| 15 | Covering seat rail left | 1 | 52107118501 | $3.25 | Shop at ECS Tuning | |||||
| 15 | Covering seat rail right | 1 | 52107118502 | $3.25 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SEAT RAIL front right/rear left |
||||||||||
| 16 | Covering cap, seat rail | SCHWARZ | 1 | 52109110103 | $0.66 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SEAT RAIL front left/rear right |
||||||||||
| 16 | Covering cap, seat rail | SCHWARZ | 1 | 52109110104 | $0.66 | Shop at ECS Tuning | ||||
| 17 | Fillister head screw | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 18 | Bracket, control unit | 2 | 52107140863 | $17.57 | Shop at ECS Tuning | |||||
| 19 | Fillister head screw | M4X8 | 4 | 07147148547 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Bracket control unit left | 1 | 52107152229 | Shop at ECS Tuning | ||||||
| 20 | Bracket control unit right | 1 | 52107152230 | $16.20 | Shop at ECS Tuning | |||||
| 21 | Connection element for thigh support | 2 | 52107161312 | $11.64 | Shop at ECS Tuning | |||||
| 22 | Spare parts kit | 1 | 52107245949 | $12.32 | Shop at ECS Tuning | |||||
