Seat rear, upholstery & cover base seat for BMW 1 Series E88 118i (2013)

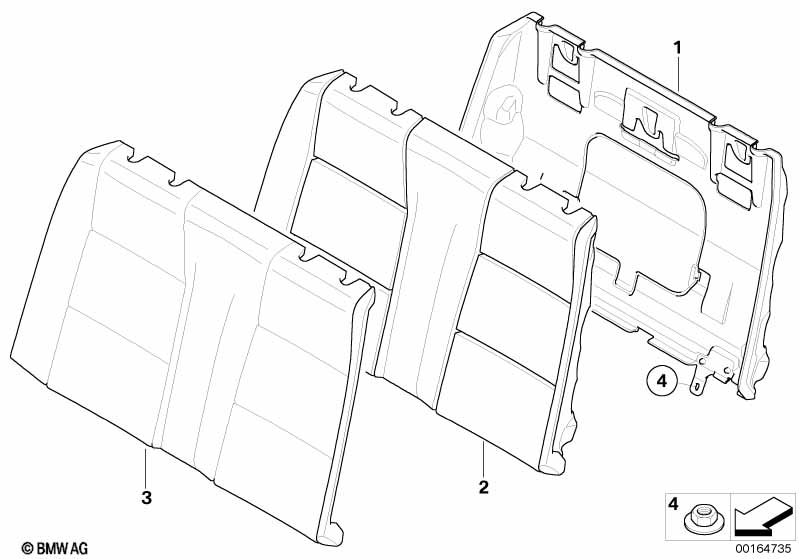

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | backrest frame el. fa | 1 | 52209136177 | $391.09 | Shop at ECS Tuning | |||||
| 02 | Backrest upholstery | 1 | 52209135547 | $224.80 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | SCHWARZ | 1 | 52209139426 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black/blue' |
GCNL=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52208053990 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 03 | Cover backrest, leather | TABAK | 1 | 52207350469 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/korall-red MODEL WITHOUT High-gloss leather |
LWD1=Yes |
|||||||||
| 03 | Cover backrest, leather | KORALLROT | 1 | 09/2008 | 52207257063 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/alaska-grey MODEL WITHOUT High-gloss leather |
LWAL=Yes |
|||||||||
| 03 | Cover backrest, leather | GRAU | 1 | 09/2008 | 52207257059 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 03 | Cover backrest, leather | PERLGRAU | 1 | 52207330542 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209139415 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209139420 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | BEIGE | 1 | 52209139427 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Leather, "Boston/black/blue" |
LWNL=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52208053989 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/lemon MODEL WITHOUT High-gloss leather |
LWB7=Yes |
|||||||||
| 03 | Cover backrest, leather | LEMON | 1 | 09/2008 | 52207257062 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/black/contrast white |
LWNM=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52207330543 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/oyster MODEL WITHOUT High-gloss leather |
LWCX=Yes |
|||||||||
| 03 | Cover backrest, leather | OYSTER | 1 | 09/2008 | 52207295054 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 03 | Cover backrest cloth | MONACOBLAU | 1 | 52209139421 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ORANGE | 1 | 10/2009 | 52207261281 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52207903376 | $337.76 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/ black MODEL WITHOUT High-gloss leather |
LWSW=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 09/2008 | 52207247181 | $838.00 | +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 10/2009 | 52207261280 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' |
FHF6=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | LEMON | 1 | 10/2009 | 52207261282 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige MODEL WITHOUT High-gloss leather |
LWA5=Yes |
|||||||||
| 03 | Cover backrest, leather | BEIGE | 1 | 09/2008 | 52207257060 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston/terra" MODEL WITHOUT High-gloss leather |
LWB8=Yes |
|||||||||
| 03 | Cover backrest, leather | TERRA | 1 | 09/2008 | 52207257061 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Network/magma-braun" |
AUDR=Yes |
|||||||||
| 03 | Cover backrest cloth | MAGMABRAUN | 1 | 52207289181 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/beige MODEL WITHOUT High-gloss leather |
LWB4=Yes |
|||||||||
| 03 | Cover backrest, leather | SAVANNABEIGE | 1 | 09/2008 | 52207247182 | +core | Shop at ECS Tuning | |||
| 04 | Hex nut with plate | M8 | 2 | 52207065538 | $1.88 | Shop at ECS Tuning | ||||
