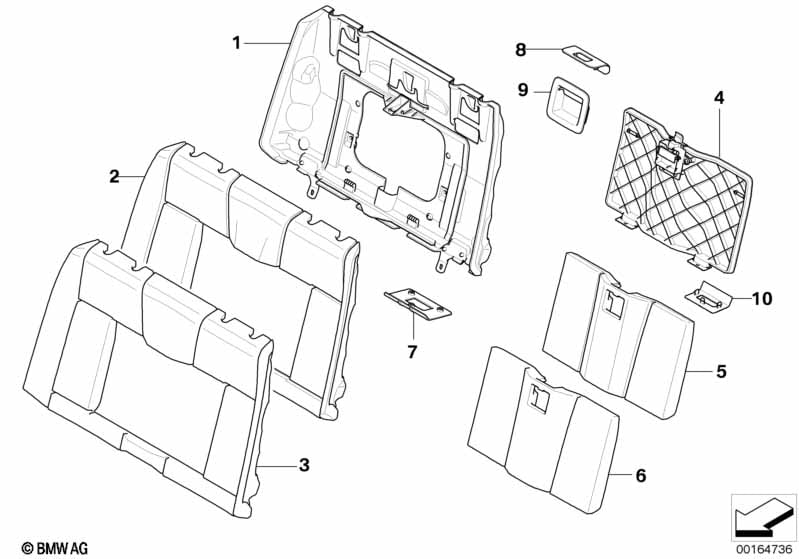

Seat, rear, uphlstry/cover, load-through for BMW 1 Series E88 135i (2010)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Load-through hatch with int. trans. sack |
S4UTA=Yes |
||||||||
| 01 | backrest frame el. fa | 1 | 52209135548 | $391.09 | Shop at ECS Tuning | |||||
| 02 | Backrest upholstery | 1 | 52209135549 | $224.80 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209139504 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige MODEL WITHOUT High-gloss leather |
LWB4=Yes |
|||||||||
| 03 | Cover backrest, leather | SAVANNABEIGE | 1 | 09/2008 | 52207247184 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/alaska-grey MODEL WITHOUT High-gloss leather |
LWAL=Yes |
|||||||||
| 03 | Cover backrest, leather | ALASKAGRAU | 1 | 09/2008 | 52207257064 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 03 | Cover backrest, leather | PERLGRAU | 1 | 52207323275 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | BEIGE | 1 | 52209139519 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209139510 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 03 | Cover backrest, imitation leather | SCHWARZ | 1 | 52209139518 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 10/2009 | 52207261286 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ORANGE | 1 | 10/2009 | 52207261287 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/korall-red MODEL WITHOUT High-gloss leather |
LWD1=Yes |
|||||||||
| 03 | Cover backrest, leather | KORALLROT | 1 | 09/2008 | 52207257068 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/lemon MODEL WITHOUT High-gloss leather |
LWB7=Yes |
|||||||||
| 03 | Cover backrest, leather | LEMON | 1 | 09/2008 | 52207257067 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/ black MODEL WITHOUT High-gloss leather |
LWSW=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 09/2008 | 52207247183 | $817.97 | +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52207903378 | $337.76 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 03 | Cover backrest cloth | MONACOBLAU | 1 | 52209139511 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/oyster MODEL WITHOUT High-gloss leather |
LWCX=Yes |
|||||||||
| 03 | Cover backrest, leather | OYSTER | 1 | 09/2008 | 52207295052 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/Sensatec 'Flashpoint/black/blue' |
GCNL=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52208053992 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/black/contrast white |
LWNM=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52207323274 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" MODEL WITHOUT High-gloss leather |
LWB8=Yes |
|||||||||
| 03 | Cover backrest, leather | TERRA | 1 | 09/2008 | 52207257066 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 03 | Cover backrest, leather | TABAK | 1 | 52207350473 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network/magma-braun" |
AUDR=Yes |
|||||||||
| 03 | Cover backrest cloth | MAGMABRAUN | 1 | 52207289178 | Shop at ECS Tuning | |||||
| For vehicles with Leather, "Boston/black/blue" |
LWNL=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52208053991 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige MODEL WITHOUT High-gloss leather |
LWA5=Yes |
|||||||||
| 03 | Cover backrest, leather | BEIGE | 1 | 09/2008 | 52207257065 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' |
FHF6=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | LEMON | 1 | 10/2009 | 52207261288 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Fabric/leather 'Pearlpoint/orange' |
L810A=Yes FHF5=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ORANGE | 1 | 10/2009 | 52207261296 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Cloth "Elektra"/anthracite |
L810A=Yes EAAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209142054 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather "Boston"/beige MODEL WITHOUT High-gloss leather |
L810A=Yes LWA5=Yes |
|||||||||
| 03 | Cover backrest, leather | BEIGE | 1 | 09/2008 | 52207257070 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Fabric/leather 'Pearlpoint/anthracite' |
L810A=Yes FHAT=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 10/2009 | 52207261295 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather Boston/tobacco/contrast white |
L810A=Yes LWNV=Yes |
|||||||||
| 03 | Cover backrest, leather | TABAK | 1 | 52207350476 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather "Boston"/lemon MODEL WITHOUT High-gloss leather |
L810A=Yes LWB7=Yes |
|||||||||
| 03 | Cover backrest, leather | LEMON | 1 | 09/2008 | 52207257072 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Leather Boston/oyster MODEL WITHOUT High-gloss leather |
L810A=Yes LWCX=Yes |
|||||||||
| 03 | Cover backrest, leather | OYSTER | 1 | 09/2008 | 52207295048 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Leather Boston/perl-grau/contrast blue |
L810A=Yes LWNH=Yes |
|||||||||
| 03 | Cover backrest, leather | PERLGRAU | 1 | 52207323277 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather Boston/black/contrast white |
L810A=Yes LWNM=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52207323276 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather, "Boston/black/blue" |
L810A=Yes LWNL=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 52208053993 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Fabric "Network"/Monaco blue |
L810A=Yes AUD9=Yes |
|||||||||
| 03 | Cover backrest cloth | MONACOBLAU | 1 | 52209142058 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather "Boston"/ black MODEL WITHOUT High-gloss leather |
L810A=Yes LWSW=Yes |
|||||||||
| 03 | Cover backrest, leather | SCHWARZ | 1 | 09/2008 | 52207247185 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Fabric "Network/magma-braun" |
L810A=Yes AUDR=Yes |
|||||||||
| 03 | Cover backrest cloth | MAGMABRAUN | 1 | 52207289166 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and Fabric/Sensatec 'Flashpoint/black' |
L810A=Yes GCSW=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52207903380 | $337.76 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Fabric "Network"/anthracite |
L810A=Yes AUAT=Yes |
|||||||||
| 03 | Cover backrest cloth | ANTHRAZIT | 1 | 52209142057 | $291.04 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather "Boston/terra" MODEL WITHOUT High-gloss leather |
L810A=Yes LWB8=Yes |
|||||||||
| 03 | Cover backrest, leather | TERRA | 1 | 09/2008 | 52207257071 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Fabric/Sensatec 'Flashpoint/black/blue' |
L810A=Yes GCNL=Yes |
|||||||||
| 03 | Cover for backrest fabric/imit. leather | SCHWARZ | 1 | 52208053994 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Fabric/leather 'Pearlpoint/beige/lemon' |
L810A=Yes FHF6=Yes |
|||||||||
| 03 | Cloth/leather backrest cover | LEMON | 1 | 10/2009 | 52207261297 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Leather "Boston"/korall-red MODEL WITHOUT High-gloss leather |
L810A=Yes LWD1=Yes |
|||||||||
| 03 | Cover backrest, leather | KORALLROT | 1 | 09/2008 | 52207257073 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Leather "Boston"/alaska-grey MODEL WITHOUT High-gloss leather |
L810A=Yes LWAL=Yes |
|||||||||
| 03 | Cover backrest, leather | GRAU | 1 | 09/2008 | 52207257069 | +core | Shop at ECS Tuning | |||
| 04 | Supporting part, filler | 1 | 52209141834 | $38.59 | Shop at ECS Tuning | |||||
| 05 | Foam filling part | 1 | 52209135550 | $32.92 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 06 | Cover insert cloth | ANTHRAZIT | 1 | 52209139505 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 06 | Cover insert leather | SAVANNABEIGE | 1 | 09/2008 | 52207247187 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 06 | Cover insert leather | ALASKAGRAU | 1 | 09/2008 | 52207257074 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 06 | Cover insert leather | PERLGRAU | 1 | 52207323278 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 06 | Cover insert imitation leather | BEIGE | 1 | 52209139521 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 06 | Cover insert cloth | ANTHRAZIT | 1 | 52209139512 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Cover insert imitation leather | SCHWARZ | 1 | 52209139520 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 06 | Cover insert leather | ANTHRAZIT | 1 | 10/2009 | 52207261289 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 06 | Cover insert leather | ORANGE | 1 | 10/2009 | 52207261290 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 06 | Cover insert leather | KORALLROT | 1 | 09/2008 | 52207257078 | $314.47 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 06 | Cover insert leather | LEMON | 1 | 09/2008 | 52207257077 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 06 | Cover insert imitation leather | SCHWARZ | 1 | 52207903382 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 06 | Cover insert cloth | MONACOBLAU | 1 | 52209139513 | $234.52 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/oyster |
LWCX=Yes |
|||||||||
| 06 | Cover insert leather | OYSTER | 1 | 52207295051 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 06 | Cover insert leather | TERRA | 1 | 09/2008 | 52207257076 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 06 | Cover insert leather | TABAK | 1 | 52207350474 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Network/magma-braun" |
AUDR=Yes |
|||||||||
| 06 | Cover insert cloth | MAGMABRAUN | 1 | 52207289177 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 06 | Cover insert leather | BEIGE | 1 | 09/2008 | 52207257075 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Boston/black/blue" or Leather Boston/black/contrast white or Leather "Boston"/ black |
LWNL=Yes LWNM=Yes LWSW=Yes |
|||||||||
| 06 | Cover insert leather | SCHWARZ | 1 | 09/2008 | 52207247186 | $314.47 | +core | Shop at ECS Tuning | ||
| 07 | Cover, locking mechanism | SCHWARZ | 1 | 52209137024 | $29.75 | Shop at ECS Tuning | ||||
| 07 | Cover, locking mechanism | GRAU | 1 | 52209172445 | $29.75 | Shop at ECS Tuning | ||||
| 07 | Cover, locking mechanism | BEIGE | 1 | 52209172446 | $29.75 | Shop at ECS Tuning | ||||
| 08 | Cover, locking mechanism | 1 | 52209137023 | $29.75 | Shop at ECS Tuning | |||||
| 09 | Cover, control | SCHWARZ | 1 | 52209137031 | $32.92 | Shop at ECS Tuning | ||||
| 09 | Cover, control | GRAU | 1 | 52209137032 | $29.75 | Shop at ECS Tuning | ||||
| 09 | Cover, control | BEIGE | 1 | 52209137033 | $29.75 | Shop at ECS Tuning | ||||
| 10 | Covering left | 1 | 52209174497 | $5.51 | Shop at ECS Tuning | |||||
| 10 | Covering right | 1 | 52209174498 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | M8 | 2 | 52207065538 | $1.88 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
