BMW Performance Sport Seat for BMW 3 Series E90 325i (2007)

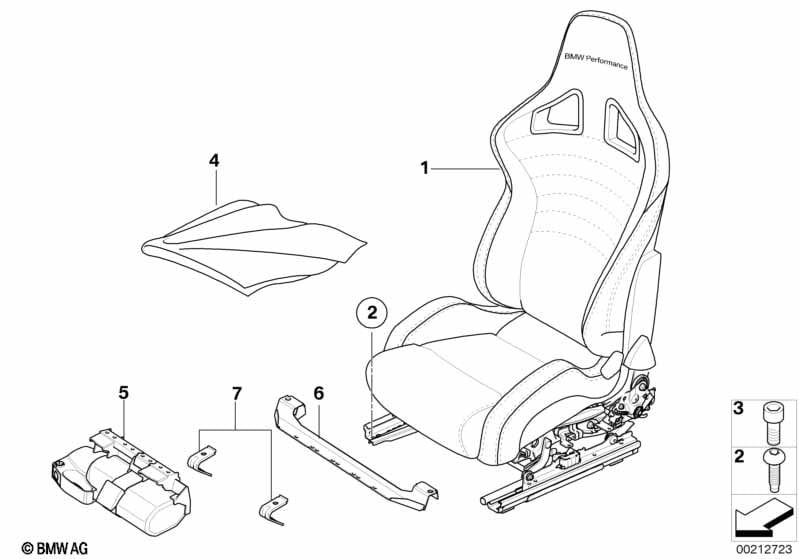

This BMW Performance Sport Seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Individual installation of Sport seats only possible in vehicles without S459A. |
|||||||||
| 01 | Sports seat for Shopsystem | BMW PERFORMANCE | 1 | 52100445043 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Sports seat left | BMW PERFORMANCE | 1 | 52100442129 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Sports seat right | BMW PERFORMANCE | 1 | 52100442130 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring set | 1 | 61122155580 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 01 | Sports seat left | BMW PERFORMANCE | 1 | 52100442129 | ENDED | Shop at ECS Tuning | ||||
| 01 | Sports seat right | BMW PERFORMANCE | 1 | 52100442130 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M10X37 | 8 | 07147146686 | $1.16 | Shop at ECS Tuning | ||||
| Spare part | ||||||||||
| 03 | Set of screws and plugs | M8X16 | 2 | 52102152617 | Shop at ECS Tuning | |||||
| 04 | Active fleece | WEISS/320X320MM | 1 | 51910148336 | $17.51 | ENDED | Shop at ECS Tuning | |||
| 05 | Installing set fire-extinguisher powder | 1 KG | 1 | 72600418759 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set f fire extinguisher | 1 | 52100445932 | ENDED | Shop at ECS Tuning | |||||
| 06 | Mounting parts set f fire extinguisher | 1 | 52100445932 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fire extinguisher holder | 1 | 82279413886 | $14.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fire extinguisher holder | 1 | 82279413886 | $14.04 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
