Seat, front, head restraint for BMW 3 Series E90 LCI 330i (2011)

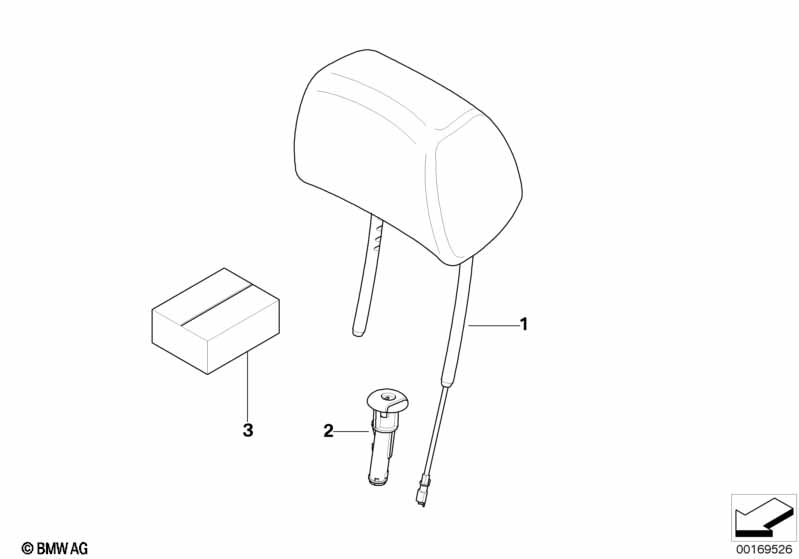

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 52107211781 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 01 | Headrest imitation leather | CREAMBEIGE | 2 | 52107211773 | $177.89 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 01 | Headrest imitation leather | SAVANNABEIGE | 2 | 52107211772 | $177.89 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 03/2009 | 52107246718 | $287.08 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 01 | Headrest leather | JADEGRAU | 2 | 52107211782 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 01 | Headrest cloth-leather | ANTHRAZIT | 2 | 09/2009 | 52107251936 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Headrest leather | SATTELBRAUN | 2 | 06/2009 | 52107257223 | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 01 | Head rest cloth | OYSTER | 2 | 03/2010 | 52107273562 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 01 | Headrest cloth-leather | BRAUN | 2 | 09/2009 | 52107251937 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU60 | 2 | 03/2009 | 52107246719 | $287.08 | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107843952 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52107211771 | $177.89 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52107211769 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 01 | Headrest leather | ROTBRAUN | 2 | 09/2009 | 52107257224 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Headrest leather | SAVANNABEIGE | 2 | 03/2009 | 52107246720 | $287.08 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 01 | Head rest cloth | SAVANNABEIGE | 2 | 52107211770 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 52107257222 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52108039863 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Layer/anthrazit' or Cloth "Vertex/anthrazit" |
BCAT=Yes EBAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107211768 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau Without button |
AWAD=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 2 | 52109180803 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/gray" or Leather "Dakota"/grau With button |
AWAD=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 2 | 52109180799 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige Without button |
EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | SAVANNABEIGE | 2 | 52109180804 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige With button |
EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | SAVANNABEIGE | 2 | 52109180800 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" Without button |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 02 | Guide, headrest | CREAMBEIGE | 2 | 52109180805 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" With button |
KAGE=Yes LCGE=Yes LRCC=Yes |
|||||||||
| 02 | Guide, headrest | CREAMBEIGE | 2 | 52109180801 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz Without button |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FMAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52109180802 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz With button |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FMAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52109180798 | $6.29 | Shop at ECS Tuning | ||||
| 03 | Repair kit, crash-active head restraint | 2 | 52109176091 | $80.09 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
