Seat, front, lumbar Active seat for BMW 7 Series F02 750Li (2011)

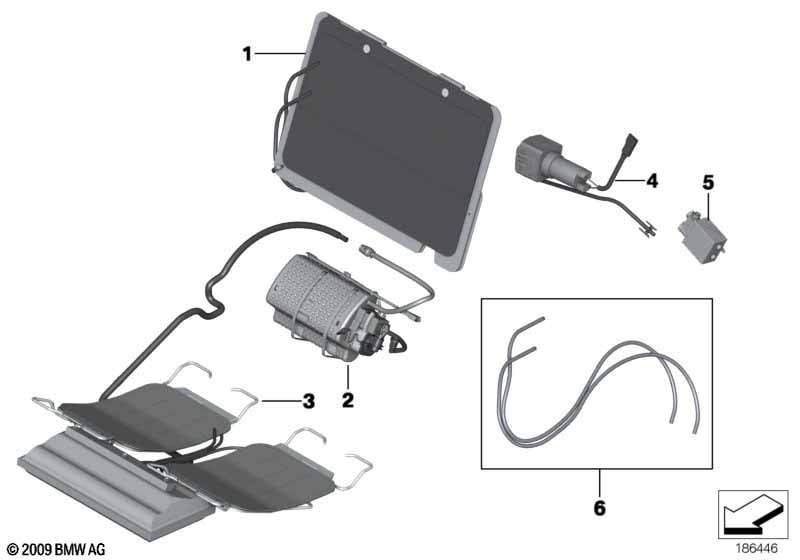

This Seat, front, lumbar Active seat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lumbar support, driver and passenger |
S488A=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 07/2012 | 52109180625 | Shop at ECS Tuning | |||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 07/2012 | 52109122585 | $138.27 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S456A=Yes S488A=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 07/2012 | 52109122585 | $138.27 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 02 | Pump | 2 | 07/2012 | 52109122586 | $191.14 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S456A=Yes S488A=Yes |
|||||||||
| 02 | Pump | 2 | 07/2012 | 52109122586 | $191.14 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 03 | Pressure valve body | 2 | 07/2012 | 52109122584 | $257.95 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S456A=Yes S488A=Yes |
|||||||||
| 03 | Pressure valve body | 2 | 07/2012 | 52109122584 | $257.95 | Shop at ECS Tuning | ||||
| For vehicles with Lumbar support, driver and passenger |
S488A=Yes |
|||||||||
| 04 | Lumbar support pump | 2 | 07/2012 | 52107242080 | $221.21 | Shop at ECS Tuning | ||||
| 05 | Valve unit | 2 | 07/2012 | 52109162871 | $112.83 | Shop at ECS Tuning | ||||
| 06 | Set of hoses | 2 | 07/2012 | 52207070496 | $60.35 | ENDED | Shop at ECS Tuning | |||
