Seat, front, seat frame for BMW 5 Series F10 525d (2013)

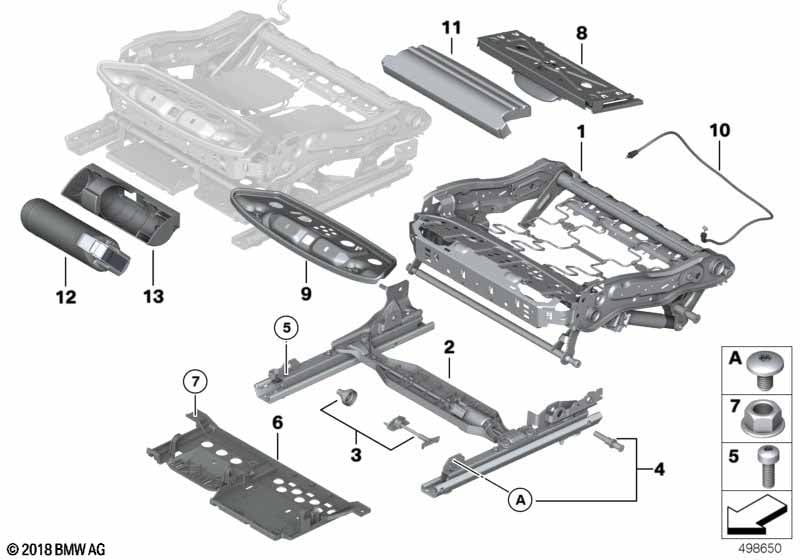

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat frame, manual right | 1 | 52107266344 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, manual left | 1 | 52107266345 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, electr. right | 1 | 01/2013 | 52107329932 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Seat frame, electr. left | 1 | 01/2013 | 52107299677 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat frame, Sport seat, manual, left | 1 | 52107266347 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, Sport seat, manual, right | 1 | 52107266348 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Seat frame, electr. right | 1 | 52107266330 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, electr. left | 1 | 52107266331 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52107266339 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, comfort seat, right | 1 | 52107266340 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat frame, Sport seat, electric, right | 1 | 52107266334 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, Sport seat, electric, left | 1 | 52107266335 | Shop at ECS Tuning | ||||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory |
S455A=Yes S456A=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52107266341 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, comfort seat, right | 1 | 52107266342 | Shop at ECS Tuning | ||||||
| Basic seat electric parts Sports seat electric parts |
||||||||||
| 02 | Seat rail left | 1 | 52109168747 | Shop at ECS Tuning | ||||||
| 02 | Seat rail right | 1 | 52109168748 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat Basic seat electric parts Sports seat electric parts |
S481A=Yes |
|||||||||
| 02 | Seat rail left | 1 | 52109168747 | Shop at ECS Tuning | ||||||
| 02 | Seat rail right | 1 | 52109168748 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Seat rail, Comfort seat, left | 1 | 52109168753 | $1162.63 | Shop at ECS Tuning | |||||
| 02 | Seat rail, Comfort seat, right | 1 | 52109168754 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 02 | Seat rail, Comfort seat, left | 1 | 52109168753 | $1162.63 | Shop at ECS Tuning | |||||
| 02 | Seat rail, Comfort seat, right | 1 | 52109168754 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory |
S456A=Yes S459A=No |
|||||||||
| 02 | Seat rail, Comfort seat, left | 1 | 52109168753 | $1162.63 | Shop at ECS Tuning | |||||
| 02 | Seat rail, Comfort seat, right | 1 | 52109168754 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory |
S456A=No S459A=Yes |
|||||||||
| 02 | Seat rail, Comfort seat, left | 1 | 52109168753 | $1162.63 | Shop at ECS Tuning | |||||
| 02 | Seat rail, Comfort seat, right | 1 | 52109168754 | Shop at ECS Tuning | ||||||
| 03 | Set of flexible shafts | 2 | 52107242073 | $90.41 | Shop at ECS Tuning | |||||
| 04 | Set of screws | 2 | 52107269525 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | M10X37 | 8 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 06 | Left supporting plate | 1 | 52107267729 | Shop at ECS Tuning | ||||||
| 06 | Carrier plate, right | 1 | 52107267730 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M6-Z1 | 4 | 07149177897 | Shop at ECS Tuning | |||||
| 08 | Mechanical system, thigh support | 2 | 52107143536 | $108.85 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 09 | Seat carrier, front | 2 | 52107114119 | $25.41 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 09 | Seat carrier, front | 2 | 52107075955 | $24.97 | Shop at ECS Tuning | |||||
| 10 | Bowden cable | 2 | 52107269532 | Shop at ECS Tuning | ||||||
| 12 | Fire extinguisher | 1 | 52109496756 | NoS | Shop at ECS Tuning | |||||
| 13 | Mount for fire extinguisher | 1 | 52109496759 | Shop at ECS Tuning | ||||||
