Rear seat head restraint for BMW 1 Series E88 135i (2010)

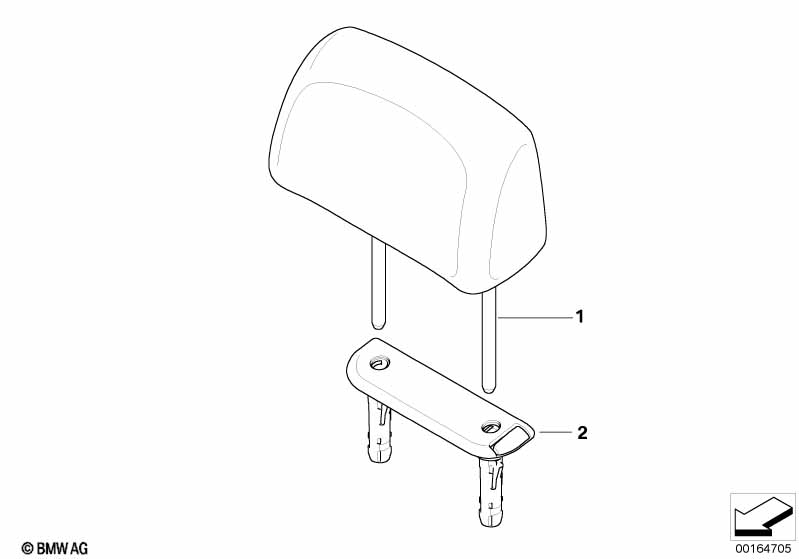

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 01 | Headrest leather | SAVANNABEIGE | 2 | 03/2009 | 09/2010 | 52207247113 | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 01 | Headrest leather | TABAK | 2 | 52207350466 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 03/2009 | 09/2010 | 52207256610 | Shop at ECS Tuning | |||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 01 | Headrest leather | PERLGRAU | 2 | 52207323290 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 2 | 03/2009 | 09/2010 | 52207256612 | $208.93 | Shop at ECS Tuning | ||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 03/2009 | 09/2010 | 52207256614 | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Headrest leather | LEMON | 2 | 03/2009 | 09/2010 | 52207256613 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 2 | 09/2010 | 52209142028 | $117.33 | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/ black |
LWSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 03/2009 | 09/2010 | 52207247112 | $198.91 | Shop at ECS Tuning | ||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 09/2010 | 52209142027 | $111.71 | Shop at ECS Tuning | |||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 03/2009 | 09/2010 | 52207256611 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey |
EAAL=Yes LWAL=Yes |
|||||||||
| 02 | Guide, headrest | ALASKAGRAU | 2 | 52209129255 | $16.28 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 2 | 52209129256 | $16.28 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite or Fabric "Network"/Monaco blue or Fabric "Network/magma-braun" or Fabric "Network"/cranberry-red or Cloth "Elektra"/alaska-grey or Cloth "Elektra"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Fabric/leather 'Pearlpoint/magma' or Fabric/leather 'Pearlpoint/orange' or Fabric/Sensatec 'Flashpoint/black/blue' or Fabric/Sensatec 'Flashpoint/black' or Leather Dakota/perl-grau or Leather "Boston"/alaska-grey or Leather "Boston"/beige or Leather "Boston"/lemon or Leather "Boston/terra" or Leather Boston/oyster or Leather "Boston"/korall-red or Leather, "Boston/black/blue" or Leather "Boston"/ black |
AUAT=Yes AUD9=Yes AUDR=Yes AUF8=Yes EAAL=Yes EAAT=Yes FHAT=Yes FHDR=Yes FHF5=Yes GCNL=Yes GCSW=Yes LCPF=Yes LWAL=Yes LWB4=Yes LWB7=Yes LWB8=Yes LWCX=Yes LWD1=Yes LWNL=Yes LWSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52209129254 | $16.28 | Shop at ECS Tuning | ||||
