Seat, front, head restraint for BMW 1 Series E88 128i (2013)

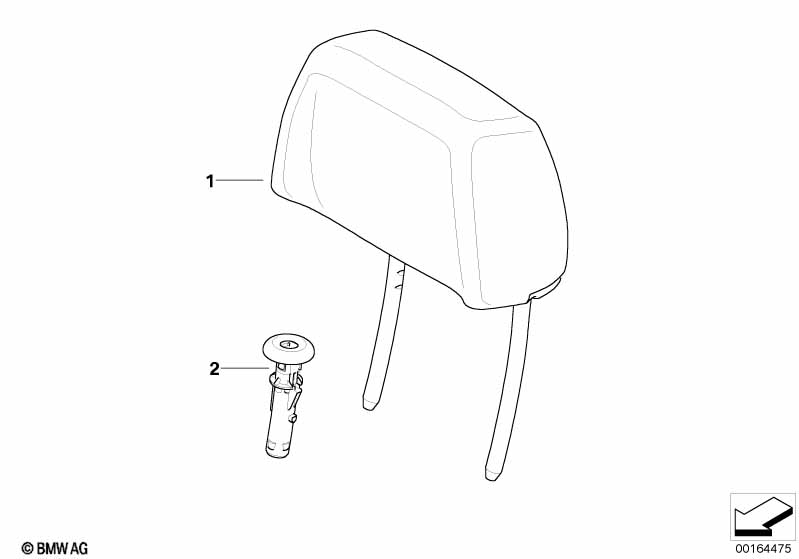

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 09/2010 | 52107280364 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAA5=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 2 | 09/2010 | 52107280365 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 2 | 09/2010 | 52107280361 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWB4=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 09/2010 | 52107280359 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/perl-grau/contrast blue |
LWNH=Yes |
|||||||||
| 01 | Headrest leather | PERLGRAU | 2 | 52107323286 | Shop at ECS Tuning | |||||
| For vehicles with Leather Boston/oyster |
LWCX=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107288630 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 09/2010 | 52107280360 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Headrest leather | LEMON | 2 | 09/2010 | 52107280362 | Shop at ECS Tuning | ||||
| For vehicles with Leather Boston/tobacco/contrast white |
LWNV=Yes |
|||||||||
| 01 | Headrest leather | TABAK | 2 | 52107350185 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 09/2010 | 52107286184 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/korall-red |
LWD1=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 09/2010 | 52107280363 | Shop at ECS Tuning | ||||
| For vehicles with Leather, "Boston/black/blue" or Leather Boston/black/contrast white or Leather "Boston"/ black |
LWNL=Yes LWNM=Yes LWSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 09/2010 | 52107280358 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey without key button |
EAAL=Yes LWAL=Yes |
|||||||||
| 02 | Guide, headrest | ALASKAGRAU | 2 | 52107139522 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey or Leather "Boston"/alaska-grey with key button |
EAAL=Yes LWAL=Yes |
|||||||||
| 02 | Guide, headrest | ALASKAGRAU | 2 | 52107139519 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige without key button |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 2 | 52107139523 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/beige/lemon' or Sensatec/beige or Leather "Boston"/beige with key button |
FHF6=Yes KAA5=Yes LWA5=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 2 | 52107139520 | $6.29 | Shop at ECS Tuning | ||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52107139521 | $6.29 | Shop at ECS Tuning | ||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52107139518 | $6.29 | Shop at ECS Tuning | ||||
