Seat rear, upholstery & cover base seat for BMW 5 Series F11 LCI 520d (2014)

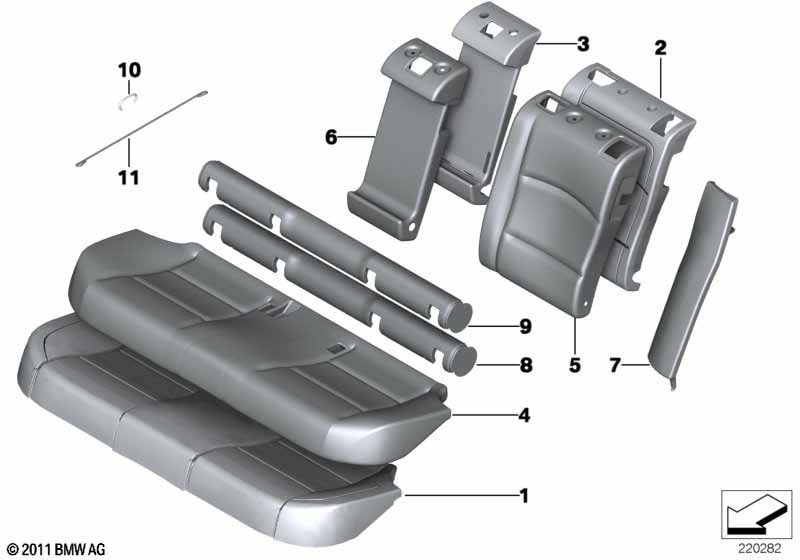

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version with seat heating (also suitable for vehicles without seat heating) |
|||||||||
| 01 | Foam section, seat | 1 | 52209162836 | Shop at ECS Tuning | ||||||
| 02 | Foam padding, backrest, left | 1 | 52209162906 | Shop at ECS Tuning | ||||||
| 02 | Foam padding, backrest, right | 1 | 52209162907 | Shop at ECS Tuning | ||||||
| 03 | Foam rubber pad, backrest, center | 1 | 52209162913 | Shop at ECS Tuning | ||||||
| For vehicles with Fabric "diagonal/veneto-beige" Model without heated seat |
AWDF=Yes |
|||||||||
| 04 | Cloth cover for basic seat | VENETOBEIGE | 1 | 52207254026 | +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather "Leatherette/black" Model without heated seat |
K8SW=Yes |
|||||||||
| 04 | Imitat. leather cover f basic seat | SCHWARZ | 1 | 52207254039 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 04 | Leather cover for basic seat | LCEZ ZIMTBRAUN | 1 | 52207254145 | +core | Shop at ECS Tuning | ||||
| For vehicles with Imit. leather "Leatherette/veneto-beige" Model without heated seat |
K8DF=Yes |
|||||||||
| 04 | Imitat. leather cover f basic seat | VENETOBEIGE | 1 | 52207254040 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 04 | Leather cover for basic seat | LCSW SCHWARZ | 1 | 52207254141 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" Model without heated seat |
AWAT=Yes |
|||||||||
| 04 | Cloth cover for basic seat | ANTHRAZIT | 1 | 52207254025 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/veneto-beige/excl. seam |
LCLY=Yes |
|||||||||
| 04 | Leather cover for basic seat | VENETOBEIGE | 1 | 52207370460 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/mocca/Exclusive seam |
LZMW=Yes |
|||||||||
| 04 | Leather cover for basic seat | MOKKA | 1 | 52207358512 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" |
LCDF=Yes |
|||||||||
| 04 | Leather cover for basic seat | LCDF VEN.BEIGE | 1 | 52207254142 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam |
LCLZ=Yes LCSJ=Yes |
|||||||||
| 04 | Leather cover for basic seat | SCHWARZ | 1 | 52207370458 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
LZLZ=Yes LZSJ=Yes |
|||||||||
| 04 | Leather cover for basic seat | SCHWARZ | 1 | 52207358513 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Fabric 'Gray Shadow/anthracite' Model without heated seat |
P337A=Yes AZAT=Yes |
|||||||||
| 04 | Upholstery, base seat, Alcantara | ANTHRAZIT | 1 | 52207844409 | Shop at ECS Tuning | |||||
| For vehicles with Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 04 | Leather cover for basic seat | ELFENBEINWEISS | 1 | 52207358511 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 04 | Leather cover for basic seat | OYSTER | 1 | 52207370459 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" Model without heated seat |
AWDF=Yes |
|||||||||
| 05 | Cover backrest cloth left | AWDF VEN.BEIGE | 1 | 52207254275 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth right | AWDF VEN.BEIGE | 1 | 52207254276 | +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather "Leatherette/black" Model without heated seat |
K8SW=Yes |
|||||||||
| 05 | Cover backrest vinyl left | K8SW SCHWARZ | 1 | 52207254281 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl right | K8SW SCHWARZ | 1 | 52207254282 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 05 | Cover backrest leather left | LCEZ ZIMTBRAUN | 1 | 52207254341 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather right | LCEZ ZIMTBRAUN | 1 | 52207254342 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather "Leatherette/veneto-beige" Model without heated seat |
K8DF=Yes |
|||||||||
| 05 | Cover backrest vinyl left | K8DF VEN.BEIGE | 1 | 52207254283 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl right | K8DF VEN.BEIGE | 1 | 52207254284 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Cover backrest leather left | LCSW SCHWARZ | 1 | 52207254333 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather right | LCSW SCHWARZ | 1 | 52207254334 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" Model without heated seat |
AWAT=Yes |
|||||||||
| 05 | Cover backrest cloth left | AWAT ANTHRAZIT | 1 | 52207254273 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth right | AWAT ANTHRAZIT | 1 | 52207254274 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/veneto-beige/excl. seam |
LCLY=Yes |
|||||||||
| 05 | Cover backrest leather right | LCLY VEN. BEIGE | 1 | 52207358456 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LCLY VEN. BEIGE | 1 | 52207358457 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/mocca/Exclusive seam |
LZMW=Yes |
|||||||||
| 05 | Cover backrest leather right | LZMW MOKKA | 1 | 52207358722 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LZMW MOKKA | 1 | 52207358723 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" |
LCDF=Yes |
|||||||||
| 05 | Cover backrest leather left | LCDF VEN.BEIGE | 1 | 52207254335 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather right | LCDF VEN.BEIGE | 1 | 52207254336 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam |
LCLZ=Yes LCSJ=Yes |
|||||||||
| 05 | Cover backrest leather right | LCLZ,LCSJ SCHW. | 1 | 52207358458 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LCLZ,LCSJ SCHW. | 1 | 52207358459 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
LZLZ=Yes LZSJ=Yes |
|||||||||
| 05 | Cover backrest leather right | LZLZ,LZSJ SCHW. | 1 | 52207358724 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LZLZ,LZSJ SCHW. | 1 | 52207358725 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Fabric 'Gray Shadow/anthracite' Model without heated seat |
P337A=Yes AZAT=Yes |
|||||||||
| 05 | Backrest cover Alcantara, left | AZAT ANTHRAZIT | 1 | 52207844415 | Shop at ECS Tuning | |||||
| 05 | Backrest cover Alcantara, right | AZAT ANTHRAZIT | 1 | 52207844416 | Shop at ECS Tuning | |||||
| For vehicles with Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 05 | Cover backrest leather right | LZEO,LZET,LZEU | 1 | 52207358720 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LZEO,LZET,LZEU | 1 | 52207358721 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 05 | Cover backrest leather right | LCOT,LCOU,LCOX | 1 | 52207358454 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather left | LCOT,LCOU,LCOX | 1 | 52207358455 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric "diagonal/veneto-beige" |
AWDF=Yes |
|||||||||
| 06 | Upholstery cover, backrest, fabric, cent | AWDF VEN.BEIGE | 1 | 52207254278 | +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather "Leatherette/black" |
K8SW=Yes |
|||||||||
| 06 | Upholstery cover, backrest, vinyl, cent | K8SW SCHWARZ | 1 | 52207254285 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LCEZ ZIMTBRAUN | 1 | 52207254331 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather "Leatherette/veneto-beige" |
K8DF=Yes |
|||||||||
| 06 | Upholstery cover, backrest, vinyl, cent | K8DF VEN.BEIGE | 1 | 52207254286 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 06 | Upholstery cover, backrest, fabric, cent | AWAT ANTHRAZIT | 1 | 52207254277 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Nappa/mocca/Exclusive seam |
LZMW=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LZMW MOKKA | 1 | 52207358772 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
LZLZ=Yes LZSJ=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | NASW,LZLZ,LZSJ | 1 | 52207254380 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and Fabric 'Gray Shadow/anthracite' |
P337A=Yes AZAT=Yes |
|||||||||
| 06 | Upholstery, backrest, Alcantara, center | AZAT ANTHRAZIT | 1 | 52207844414 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
LCDF=Yes LCLY=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LCDF,LCLY BEIGE | 1 | 52207254328 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCLZ=Yes LCSJ=Yes LCSW=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LCSW,LCLZ,LCSJ | 1 | 52207254311 | Shop at ECS Tuning | |||||
| For vehicles with Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LZEO,LZET,LZEU | 1 | 52207358771 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 06 | Upholstery cover backrest, lthr, cent | LCDH,LCCX,LCOT | 1 | 52207254330 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "diagonal/veneto-beige" |
AWDF=Yes |
|||||||||
| 07 | Side finisher cloth, left | AWDF VEN.BEIGE | 1 | 52207263417 | Shop at ECS Tuning | |||||
| 07 | Side finisher cloth, right | AWDF VEN.BEIGE | 1 | 52207263418 | Shop at ECS Tuning | |||||
| For vehicles with Imitation leather "Leatherette/black" |
K8SW=Yes |
|||||||||
| 07 | Side section, imitation leather, left | K8SW SCHWARZ | 1 | 52207271329 | Shop at ECS Tuning | |||||
| 07 | Side section, imitation leather, right | K8SW SCHWARZ | 1 | 52207271330 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 07 | Side finisher, leather, left | LCEZ ZIMTBRAUN | 1 | 52207269941 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LCEZ ZIMTBRAUN | 1 | 52207269942 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather "Leatherette/veneto-beige" |
K8DF=Yes |
|||||||||
| 07 | Side section, imitation leather, left | K8DF VEN.BEIGE | 1 | 52207271331 | Shop at ECS Tuning | |||||
| 07 | Side section, imitation leather, right | K8DF VEN.BEIGE | 1 | 52207271332 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 07 | Side finisher cloth, left | AWAT ANTHRAZIT | 1 | 52207263415 | Shop at ECS Tuning | |||||
| 07 | Side finisher cloth, right | AWAT ANTHRAZIT | 1 | 52207263416 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/mocca/Exclusive seam |
LZMW=Yes |
|||||||||
| 07 | Side finisher, leather, left | LZMW MOKKA | 1 | 52207352793 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LZMW MOKKA | 1 | 52207352794 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
LZLZ=Yes LZSJ=Yes |
|||||||||
| 07 | Side finisher, leather, left | LZLZ,LZSJ SCHW. | 1 | 52207352789 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LZLZ,LZSJ SCHW. | 1 | 52207352790 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Fabric 'Gray Shadow/anthracite' |
P337A=Yes AZAT=Yes |
|||||||||
| 07 | Side section Alcantara, left | AZAT ANTHRAZIT | 1 | 52207844373 | Shop at ECS Tuning | |||||
| 07 | Side section Alcantara, right | AZAT ANTHRAZIT | 1 | 52207844374 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
LCDF=Yes LCLY=Yes |
|||||||||
| 07 | Side finisher, leather, left | LCDF VEN.BEIGE | 1 | 52207269935 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LCDF VEN.BEIGE | 1 | 52207269936 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCLZ=Yes LCSJ=Yes LCSW=Yes |
|||||||||
| 07 | Side finisher, leather, left | LCSW,FPAT SCHW | 1 | 52207269933 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LCSW,FPAT SCHW | 1 | 52207269934 | Shop at ECS Tuning | |||||
| For vehicles with Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 07 | Side finisher, leather, left | LZEO,LZET,LZEU | 1 | 52207352791 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | LZEO,LZET,LZEU | 1 | 52207352792 | Shop at ECS Tuning | |||||
| 08 | Carrier, Isofix | 1 | 52209162923 | Shop at ECS Tuning | ||||||
| 08 | Foam rubber pad for Isofix | 1 | 52209162924 | Shop at ECS Tuning | ||||||
| For vehicles with Fabric "diagonal/veneto-beige" |
AWDF=Yes |
|||||||||
| 09 | Strip cover | AWDF VEN.BEIGE | 1 | 52207254280 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather "Leatherette/black" |
K8SW=Yes |
|||||||||
| 09 | Strip cover | K8SW SCHWARZ | 1 | 52207254287 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 09 | Strip cover | LCEZ ZIMTBRAUN | 1 | 52207254347 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather "Leatherette/veneto-beige" |
K8DF=Yes |
|||||||||
| 09 | Strip cover | K8DF VEN.BEIGE | 1 | 52207254288 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 09 | Strip cover | AWAT ANTHRAZIT | 1 | 52207254279 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/veneto-beige/excl. seam |
LCLY=Yes |
|||||||||
| 09 | Strip cover | LCDF,LCLY BEIGE | 1 | 52207254344 | Shop at ECS Tuning | |||||
| For vehicles with Leather Nappa/mocca/Exclusive seam |
LZMW=Yes |
|||||||||
| 09 | Strip cover | LZMW MOKKA | 1 | 52207358780 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Gray Shadow/anthracite' |
AZAT=Yes |
|||||||||
| 09 | Strip cover | AZAT ANTHRAZIT | 1 | 52207844417 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
LZLZ=Yes LZSJ=Yes |
|||||||||
| 09 | Strip cover | NASW,LZLZ,LZSJ | 1 | 52207254388 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
LCDF=Yes LCLY=Yes |
|||||||||
| 09 | Strip cover | LCDF,LCLY BEIGE | 1 | 52207254344 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCLZ=Yes LCSJ=Yes LCSW=Yes |
|||||||||
| 09 | Strip cover | LCSW,LCLZ,LCSJ | 1 | 52207454220 | Shop at ECS Tuning | |||||
| For vehicles with Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 09 | Strip cover | LZEO,LZET,LZEU | 1 | 52207358779 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 09 | Strip cover | LCDH,LCOT,LCOX | 1 | 52207254346 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 LCI 520d Seat rear, upholstery & cover base seat?
- This technical diagram illustrates the Seat rear, upholstery & cover base seat within the Seats group for the 5 Series F11 LCI 520d produced during 2014. It provides a detailed exploded view of the components, identifying key parts such as the Foam section, seat (Part #52209162836).
- Which models use the hardware listed in this Seat rear, upholstery & cover base seat?
- The hardware and components featured in the Seat rear, upholstery & cover base seat are specific to the 5 Series F11 LCI 520d produced during 2014. These technical specifications ensure that parts like the Foam section, seat (52209162836) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rear, upholstery & cover base seat assembly?
- Each item in the Seat rear, upholstery & cover base seat corresponds to the numbered list below the illustration. For the 5 Series F11 LCI 520d, you can identify the Foam section, seat by locating its position on the schematic, which then links to the official BMW part number 52209162836 for the Seats section.
