Seat, rear, seat trim covers for BMW 5 Series F11 550i (2013)

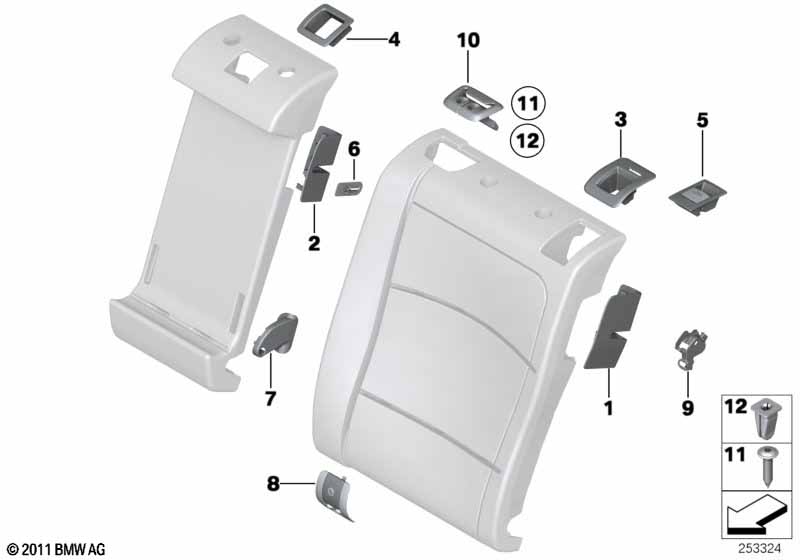

This Seat, rear, seat trim covers technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 01 | Lock panel, left | EVERESTGRAU | 1 | 52207269761 | Shop at ECS Tuning | |||||
| 01 | Lock panel, right | EVERESTGRAU | 1 | 52207269762 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 01 | Lock panel, left | OYSTER | 1 | 52207269763 | Shop at ECS Tuning | |||||
| 01 | Lock panel, right | OYSTER | 1 | 52207269764 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" |
AWDF=Yes K8DF=Yes LCDF=Yes |
|||||||||
| 01 | Lock panel, left | VENETOBEIGE | 1 | 52207269759 | Shop at ECS Tuning | |||||
| 01 | Lock panel, right | VENETOBEIGE | 1 | 52207269760 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 01 | Lock panel, left | SCHWARZ | 1 | 52207269757 | Shop at ECS Tuning | |||||
| 01 | Lock panel, right | SCHWARZ | 1 | 52207269758 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 02 | Trim cover, lock centre | EVERESTGRAU | 1 | 52207269768 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 02 | Trim cover, lock centre | OYSTER | 1 | 52207269769 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" |
AWDF=Yes K8DF=Yes LCDF=Yes |
|||||||||
| 02 | Trim cover, lock centre | VENETOBEIGE | 1 | 52207269767 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 02 | Trim cover, lock centre | SCHWARZ | 1 | 52207269756 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 03 | Trim cover, lock assembly, left | EVERESTGRAU | 1 | 52207271325 | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, right | EVERESTGRAU | 1 | 52207271326 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 03 | Trim cover, lock assembly, left | OYSTER | 1 | 52207263723 | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, right | OYSTER | 1 | 52207263724 | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, left | VENETOBEIGE | 1 | 52207271327 | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, right | VENETOBEIGE | 1 | 52207271328 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 03 | Trim cover, lock assembly, left | SCHWARZ | 1 | 52207118905 | $3.77 | Shop at ECS Tuning | ||||
| 03 | Trim cover, lock assembly, right | SCHWARZ | 1 | 52207118906 | $3.18 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 04 | Centre cover, release | EVERESTGRAU | 1 | 52207269778 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 04 | Centre cover, release | VENETOBEIGE | 1 | 52207269777 | Shop at ECS Tuning | |||||
| 04 | Centre cover, release | OYSTER | 1 | 52207269779 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 04 | Centre cover, release | SCHWARZ | 1 | 52207269776 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 05 | Cover, control | EVERESTGRAU | 2 | 52207246725 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 05 | Cover, control | VENETOBEIGE | 2 | 52207246723 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LCDH=Yes LCOT=Yes LCOU=Yes LZEO=Yes LZEU=Yes |
|||||||||
| 05 | Cover, control | OYSTER | 2 | 52207246724 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 05 | Cover, control | SCHWARZ | 2 | 52207268906 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 06 | Center cover, catch bracket | EVERESTGRAU | 1 | 52207269774 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 06 | Center cover, catch bracket | VENETOBEIGE | 1 | 52207269773 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LCDH=Yes LCOT=Yes LCOU=Yes LZEO=Yes LZEU=Yes |
|||||||||
| 06 | Center cover, catch bracket | OYSTER | 1 | 52207269775 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 06 | Center cover, catch bracket | SCHWARZ | 1 | 52207269772 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 07 | Cover, joint, left | EVERESTGRAU | 1 | 52207269731 | +core | Shop at ECS Tuning | ||||
| 07 | Cover, joint, right | EVERESTGRAU | 1 | 52207269738 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 07 | Cover, joint, left | ZIMTBRAUN | 1 | 52207269733 | Shop at ECS Tuning | |||||
| 07 | Cover, joint, right | ZIMTBRAUN | 1 | 52207269742 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 07 | Cover, joint, left | VENETOBEIGE | 1 | 52207269730 | +core | Shop at ECS Tuning | ||||
| 07 | Cover, joint, right | VENETOBEIGE | 1 | 52207269736 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
LCDH=Yes LCOT=Yes LCOU=Yes LZEO=Yes LZEU=Yes |
|||||||||
| 07 | Cover, joint, left | OYSTER | 1 | 52207269732 | +core | Shop at ECS Tuning | ||||
| 07 | Cover, joint, right | OYSTER | 1 | 52207269740 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 07 | Cover, joint, left | SCHWARZ | 1 | 52207269729 | +core | Shop at ECS Tuning | ||||
| 07 | Cover, joint, right | SCHWARZ | 1 | 52207269734 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 08 | Cover isofix | EVERESTGRAU | 4 | 52207267098 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 08 | Cover isofix | ZIMTBRAUN | 4 | 52207267100 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 08 | Cover isofix | VENETOBEIGE | 4 | 52207267097 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather "Nappa/oyster" |
LCCX=Yes LCDH=Yes LCOT=Yes LCOU=Yes LCOX=Yes NACX=Yes |
|||||||||
| 08 | Cover isofix | OYSTER | 4 | 52207267099 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Fabric/leather "Tudor/anthrazit" or Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz or Leather Nappa/black/Exclusive seam or Leather "Nappa/black" |
AWAT=Yes AZAT=Yes FPAT=Yes K8SW=Yes LCLZ=Yes LCSW=Yes LZLZ=Yes NASW=Yes |
|||||||||
| 08 | Cover isofix | SCHWARZ | 4 | 52207267094 | Shop at ECS Tuning | |||||
| 09 | Covering left | 1 | 52207274143 | Shop at ECS Tuning | ||||||
| 09 | Covering right | 1 | 52207274144 | Shop at ECS Tuning | ||||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 10 | Cover, belt outlet | EVERESTGRAU | 1 | 52207242120 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 10 | Cover, belt outlet | VENETOBEIGE | 1 | 52207242119 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather "Nappa/oyster" |
LCCX=Yes LCDH=Yes LCOT=Yes LCOU=Yes LCOX=Yes NACX=Yes |
|||||||||
| 10 | Cover, belt outlet | OYSTER | 1 | 52207271352 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather "Dakota/zimt-braun" or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather "Dakota"/schwarz or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/black/Exclusive seam or Leather Nappa/mocca/Exclusive seam |
AWAT=Yes AZAT=Yes K8SW=Yes LCEZ=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LZET=Yes LZLZ=Yes LZMW=Yes |
|||||||||
| 10 | Cover, belt outlet | SCHWARZ | 1 | 52207242118 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,2X17 | 4 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
