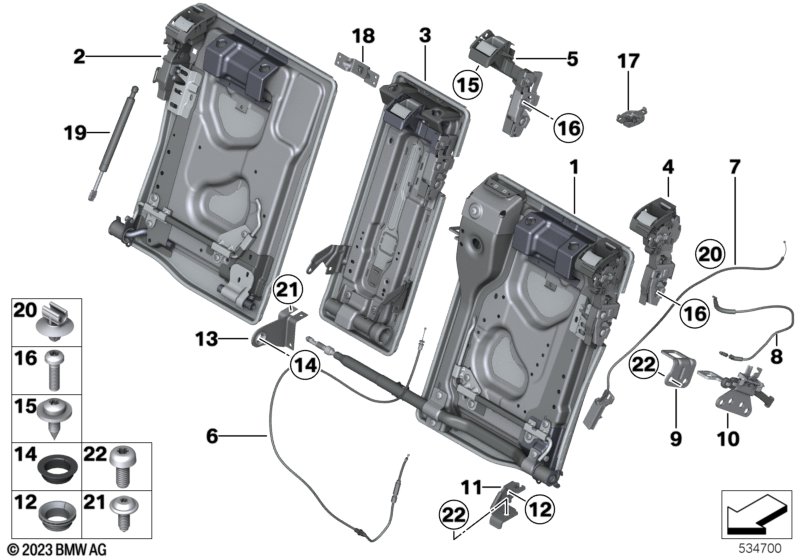

Seat, rear, seat frame for BMW 5 Series F11 LCI 520d (2016)
This Seat, rear, seat frame technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, left | ANTHR/SCHWARZ | 1 | 52207346517 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bearing exterior left | 1 | 52207362871 | Shop at ECS Tuning | ||||||
| -- | Collar bush | 1 | 52207368165 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, left | VEN.BEIGE/BEIGE | 1 | 52207346519 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bearing exterior left | 1 | 52207362871 | Shop at ECS Tuning | ||||||
| -- | Collar bush | 1 | 52207368165 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, left | OYSTER/OYSTER | 1 | 52207346521 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bearing exterior left | 1 | 52207362871 | Shop at ECS Tuning | ||||||
| -- | Collar bush | 1 | 52207368165 | Shop at ECS Tuning | ||||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHR/SCHWARZ | 1 | 07/2013 | 52207346517 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | VEN.BEIGE/BEIGE | 1 | 07/2013 | 52207346519 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYSTER/OYSTER | 1 | 07/2013 | 52207346521 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line or Luxury Line |
P7S1A=Yes P7S2A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line and Luxury Line and Luggage compartment package |
P7S1A=Yes P7S2A=Yes S418A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line and Luxury Line and Luggage compartment package |
P7S1A=Yes P7S2A=Yes S418A=No |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line and Luxury Line and Luggage compartment package |
P7S1A=Yes P7S2A=No S418A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line and Luxury Line and Luggage compartment package |
P7S1A=No P7S2A=Yes S418A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line and Luxury Line and Luggage compartment package |
P7S1A=No P7S2A=Yes S418A=No |
|||||||||
| 01 | Backrest frame, left | ANTHR/OYSTER | 1 | 07/2013 | 52207346523 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | OYST/ELF.WEISS | 1 | 07/2013 | 52207346525 | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | ANTHR/ELF.WEISS | 1 | 07/2013 | 52207346529 | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | ANTHRAZIT | 1 | 07/2013 | 52207345852 | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | VENETOBEIGE | 1 | 07/2013 | 52207345854 | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | OYSTER | 1 | 07/2013 | 52207345856 | Shop at ECS Tuning | ||||
| For vehicles with Modern Line or Luxury Line |
P7S1A=Yes P7S2A=Yes |
|||||||||
| 02 | Backrest frame, right | ANTHRAZIT | 1 | 07/2013 | 52207345852 | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | VENETOBEIGE | 1 | 07/2013 | 52207345854 | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | OYSTER | 1 | 07/2013 | 52207345856 | Shop at ECS Tuning | ||||
| 03 | Backrest frame, center | ANTHRAZIT | 1 | 52207264567 | Shop at ECS Tuning | |||||
| 03 | Backrest frame, center | VENETOBEIGE | 1 | 52207264568 | Shop at ECS Tuning | |||||
| 03 | Backrest frame, center | OYSTER | 1 | 52207264570 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line or Luxury Line |
P7S1A=Yes P7S2A=Yes |
|||||||||
| 03 | Backrest frame, center | ANTHRAZIT | 1 | 07/2013 | 52207264567 | Shop at ECS Tuning | ||||
| 03 | Backrest frame, center | VENETOBEIGE | 1 | 07/2013 | 52207264568 | Shop at ECS Tuning | ||||
| 03 | Backrest frame, center | OYSTER | 1 | 07/2013 | 52207264570 | Shop at ECS Tuning | ||||
| 04 | Lock left | 1 | 52207274573 | +core | Shop at ECS Tuning | |||||
| 04 | Lock right | 1 | 52207274574 | +core | Shop at ECS Tuning | |||||
| 05 | Lock, center | 1 | 52207298080 | Shop at ECS Tuning | ||||||
| 06 | Bowden cable release | 1 | 52207271145 | Shop at ECS Tuning | ||||||
| 07 | Bowden cable release for trunk | 1 | 52207271144 | +core | Shop at ECS Tuning | |||||
| 08 | Bowden cable for cargo adjuster | 1 | 52207298079 | Shop at ECS Tuning | ||||||
| 09 | Catch bracket left | 1 | 52207253779 | Shop at ECS Tuning | ||||||
| 09 | Catch bracket right | 1 | 52207253780 | Shop at ECS Tuning | ||||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 10 | Striker, adjustable, left | 1 | 52207253621 | +core | Shop at ECS Tuning | |||||
| 10 | Striker, adjustable, right | 1 | 52207253622 | +core | Shop at ECS Tuning | |||||
| 11 | Bearing exterior left | 1 | 52207362871 | Shop at ECS Tuning | ||||||
| 11 | Bearing exterior right | 1 | 52207362872 | Shop at ECS Tuning | ||||||
| 12 | Collar bush | 2 | 52207368165 | Shop at ECS Tuning | ||||||
| 13 | Center Mount | 1 | 52209162946 | Shop at ECS Tuning | ||||||
| 14 | Sleeve for center bearing | 1 | 52207267921 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | TS4X10 ISA | 4 | 07147270744 | Shop at ECS Tuning | |||||
| 16 | Fillister head screw | M8X40 | 6 | 07149149258 | $3.05 | Shop at ECS Tuning | ||||
| 18 | Bracket, Top Tether | 2 | 52207275850 | Shop at ECS Tuning | ||||||
| 19 | Gas pressurized spring | 2 | 52207410906 | Shop at ECS Tuning | ||||||
| 20 | Clip, bowden cable | 2 | 51217040546 | $0.35 | Shop at ECS Tuning | |||||
| 21 | Torx screw with collar | M8X20 T30 | 3 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 22 | Fillister head screw | M10X22 | 6 | 07149148299 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
