Seat, front, head restraint for BMW 1 Series F21 LCI 114d (2015)

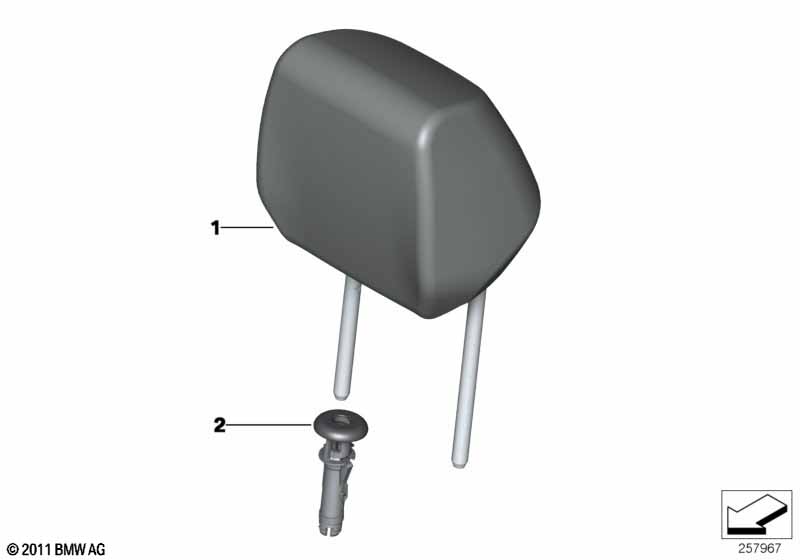

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 114d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M sports seat |
S712A=No |
||||||||
| For vehicles with Stofff corner/anthrazit/Akzent rot |
CCL2=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/ROT | 2 | 52107393368 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/GRAU | 2 | 52107293608 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather Path/silver/pearl-gray |
CPLJ=Yes |
|||||||||
| 01 | Headrest cloth-leather | SILBER/GRAU | 2 | 52107393377 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52108069673 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/ROT | 2 | 52107293609 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 52107293605 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107293601 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/perl-grau |
CALJ=Yes |
|||||||||
| 01 | Headrest cloth-leather | SILBER/PERLGRAU | 2 | 52107293600 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 01 | Headrest Alcantara | ANTHRAZIT | 2 | 52108054989 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107293598 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 01 | Headrest leather | EVERESTGRAU | 2 | 52107293604 | Shop at ECS Tuning | |||||
| For vehicles with Stofff corner/anthrazit/Akzent grau |
CCL1=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/GRAU | 2 | 52107393367 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Stoff/Leder path/silber/schwarz |
CPH6=Yes |
|||||||||
| 01 | Headrest cloth-leather | SILBER/SCHWARZ | 2 | 52107393378 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Metro/petrol/black |
CALK=Yes |
|||||||||
| 01 | Headrest cloth-leather | PETROL/SCHWARZ | 2 | 52107293599 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/akzent-rot |
LCL3=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ/ROT | 2 | 52107293603 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/black |
CAH6=Yes |
|||||||||
| 01 | Headrest cloth-leather | SILBER/SCHWARZ | 2 | 52107315421 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 01 | Headrest leather | PERLGRAU | 2 | 52107293607 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 52107293602 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black/Accent red or Sensatec/black |
KCL3=Yes KCSW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52107328693 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/oyster or Sensatec/oyster/oyster or Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark Without button |
KCCX=Yes KCDH=Yes LCCX=Yes LCDH=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 02 | Guide, headrest | OYSTER | 2 | 52107288170 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/oyster or Sensatec/oyster/oyster or Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark With button |
KCCX=Yes KCDH=Yes LCCX=Yes LCDH=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 02 | Guide, headrest | OYSTER | 2 | 52107288168 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Fabric/Leather Breeze/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Leather "Dakota"/terra or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz Without button |
BDAT=Yes BEL1=Yes BEL2=Yes CAH6=Yes CALJ=Yes CALK=Yes CBAT=Yes CCL1=Yes CCL2=Yes HAAT=Yes KCL3=Yes KCSW=Yes LCB8=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52107288169 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Fabric/Leather Breeze/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Leather "Dakota"/terra or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz With button |
BDAT=Yes BEL1=Yes BEL2=Yes CAH6=Yes CALJ=Yes CALK=Yes CBAT=Yes CCL1=Yes CCL2=Yes HAAT=Yes KCL3=Yes KCSW=Yes LCB8=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52107288167 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
