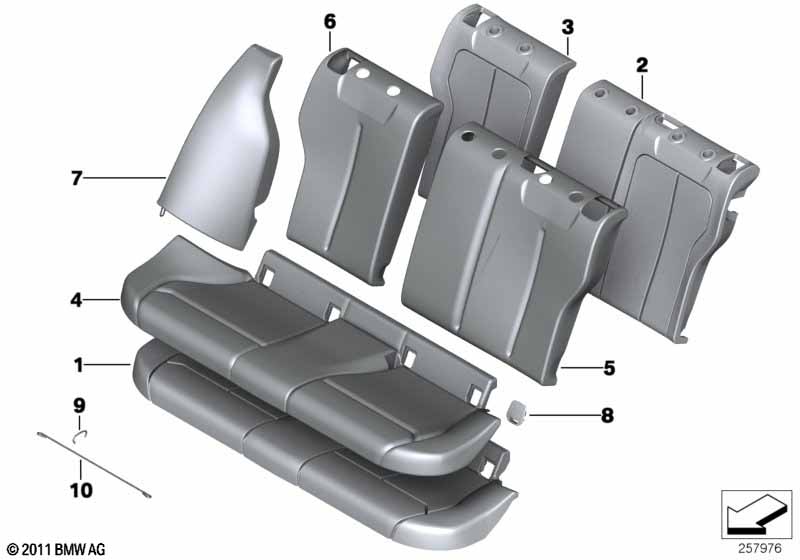

Seat rear, upholstery & cover base seat for BMW 1 Series F21 116i (2015)
This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 5-seater |
S4UKA=Yes |
||||||||
| 01 | Seat upholstery | 1 | 52207268370 | Shop at ECS Tuning | ||||||
| 02 | Left backrest upholstery | 1 | 52207243614 | Shop at ECS Tuning | ||||||
| 03 | Right backrest upholstery | 1 | 52207243615 | Shop at ECS Tuning | ||||||
| For vehicles with Leather Dakota/cognac/accent brown |
LCRY=Yes |
|||||||||
| 04 | Seat cover leather | COGNAC | 1 | 52207488397 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 04 | Seat cover leather | KORALLROT | 1 | 52207320067 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Metro/petrol/black |
CALK=Yes |
|||||||||
| 04 | Cloth/leather seat cover | PETROL/SCHWARZ | 1 | 52207320061 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 04 | Cover for seat in fabric/Alcantara | ANTHRAZIT | 1 | 52208055228 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/perl-grau |
CALJ=Yes |
|||||||||
| 04 | Cloth/leather seat cover | SILBER/PERLGRAU | 1 | 52207320062 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52207326755 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT/ROT | 1 | 52207320060 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52207320063 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 04 | Seat cover leather | EVERESTGRAU | 1 | 52207320066 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/akzent-rot |
LCL3=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ/ROT | 1 | 52207320065 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT/GRAU | 1 | 52207320059 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 04 | Seat cover leather | PERLGRAU | 1 | 52207320068 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207320058 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/black |
CAH6=Yes |
|||||||||
| 04 | Cloth/leather seat cover | SILBER/SCHWARZ | 1 | 52207312594 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 04 | Seat cover leather | OYSTER | 1 | 52207320064 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/cognac/accent brown |
LCRY=Yes |
|||||||||
| 05 | Cover backrest leather left | COGNAC | 1 | 52207488403 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 05 | Cover backrest leather left | KORALLROT | 1 | 52207292627 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Metro/petrol/black |
CALK=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | PETROL/SCHWARZ | 1 | 52207292605 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52208055006 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Metro/silver/perl-grau |
CALJ=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | SILBER/PERLGRAU | 1 | 52207292606 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT/ROT | 1 | 52207292592 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 05 | Cover backrest leather left | EVERESTGRAU | 1 | 52207292626 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT/GRAU | 1 | 52207292591 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 05 | Cover backrest leather left | PERLGRAU | 1 | 52207292629 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207292582 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/black |
CAH6=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | SILBER/SCHWARZ | 1 | 52207312614 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/akzent-rot or Leather "Dakota"/schwarz |
LCL3=Yes LCSW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52207292623 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 05 | Cover backrest leather left | OYSTER | 1 | 52207292624 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/cognac/accent brown |
LCRY=Yes |
|||||||||
| 06 | Cover backrest leather right | COGNAC | 1 | 52207488402 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 06 | Cover backrest leather right | KORALLROT | 1 | 52207292620 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Metro/petrol/black |
CALK=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | PETROL/SCHWARZ | 1 | 52207292601 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52208055005 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Metro/silver/perl-grau |
CALJ=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | SILBER/PERLGRAU | 1 | 52207292602 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT/ROT | 1 | 52207292590 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 06 | Cover backrest leather right | EVERESTGRAU | 1 | 52207292619 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT/GRAU | 1 | 52207292589 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 06 | Cover backrest leather right | PERLGRAU | 1 | 52207292622 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207292581 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/black |
CAH6=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | SILBER/SCHWARZ | 1 | 52207315423 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/akzent-rot or Leather "Dakota"/schwarz |
LCL3=Yes LCSW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52207292616 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 06 | Cover backrest leather right | OYSTER | 1 | 52207292617 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/cognac/accent brown |
LCRY=Yes |
|||||||||
| 07 | Side finisher, leather, left | COGNAC | 1 | 52207487239 | NoS | Shop at ECS Tuning | ||||
| 07 | Side finisher, leather, right | COGNAC | 1 | 52207487240 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 07 | Side finisher, leather, left | KORALLROT | 1 | 52207320251 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | KORALLROT | 1 | 52207320252 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 07 | Side section Alcantara, left | ANTHRAZIT | 1 | 52208055225 | Shop at ECS Tuning | |||||
| 07 | Side section Alcantara, right | ANTHRAZIT | 1 | 52208055226 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 07 | Side section, imitation leather, right | SCHWARZ | 1 | 52207326752 | NoS | Shop at ECS Tuning | ||||
| 07 | Side section, imitation leather, left | SCHWARZ | 1 | 52207326753 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 07 | Side finisher, leather, left | EVERESTGRAU | 1 | 52207320249 | NoS | Shop at ECS Tuning | ||||
| 07 | Side finisher, leather, right | EVERESTGRAU | 1 | 52207320250 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/oyster/oyster |
KCDH=Yes |
|||||||||
| 07 | Side section, imitation leather, left | OYSTER | 1 | 52207352381 | Shop at ECS Tuning | |||||
| 07 | Side section, imitation leather, right | OYSTER | 1 | 52207352382 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 07 | Side finisher, leather, left | OYSTER | 1 | 52207320247 | NoS | Shop at ECS Tuning | ||||
| 07 | Side finisher, leather, right | OYSTER | 1 | 52207320248 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 07 | Side finisher cloth, left | ANTHRAZIT | 1 | 52207320241 | Shop at ECS Tuning | |||||
| 07 | Side finisher cloth, right | ANTHRAZIT | 1 | 52207320242 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/perl-grau or Leather Dakota/perl-grau/akzent-schwarz |
CALJ=Yes LCL7=Yes |
|||||||||
| 07 | Side finisher, leather, left | PERLGRAU | 1 | 52207320253 | NoS | Shop at ECS Tuning | ||||
| 07 | Side finisher, leather, right | PERLGRAU | 1 | 52207320254 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot |
BEL1=Yes BEL2=Yes |
|||||||||
| 07 | Side finisher cloth, left | ANTHRAZIT/GRAU | 1 | 52207320243 | Shop at ECS Tuning | |||||
| 07 | Side finisher cloth, right | ANTHRAZIT/GRAU | 1 | 52207320244 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/black or Fabric/Leather Metro/petrol/black or Leather Dakota/black/akzent-rot or Leather "Dakota"/schwarz |
BEL1=Yes BEL2=Yes CAH6=Yes CALK=Yes LCL3=Yes LCSW=Yes |
|||||||||
| 07 | Side finisher, leather, left | SCHWARZ | 1 | 52207320245 | Shop at ECS Tuning | |||||
| 07 | Side finisher, leather, right | SCHWARZ | 1 | 52207320246 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 08 | Cover isofix | OYSTER | 4 | 52207319687 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Cloth Hexagon/Alcantara/anthracite or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather "Dakota"/schwarz |
BDAT=Yes BEL1=Yes BEL2=Yes CAH6=Yes CALJ=Yes CALK=Yes HAAT=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCSW=Yes |
|||||||||
| 08 | Cover isofix | SCHWARZ | 4 | 52207319686 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
