Rear seat head restraint for BMW 1 Series F21 114i (2015)

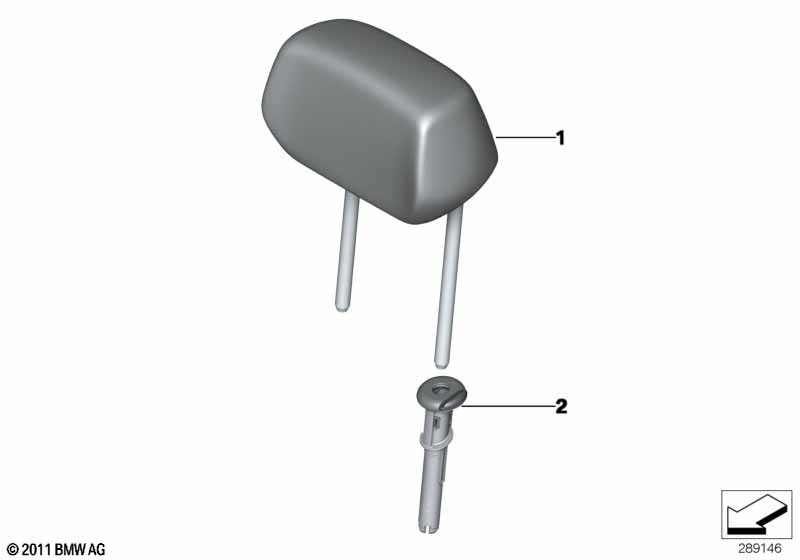

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 114i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 01 | Head rest, cloth, rear | ANTHRAZIT/GRAU | 2 | 52207291000 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 01 | Head rest, cloth, rear | ANTHRAZIT/ROT | 2 | 52207290999 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/akzent-rot |
LCL3=Yes |
|||||||||
| 01 | Head rest leather, rear | SCHWARZ/ROT | 2 | 52207290995 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 01 | Head restraint, Alcantara rear | ANTHRAZIT | 2 | 52208055010 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Head rest leather, rear | KORALLROT | 2 | 52207290994 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 01 | Head rest, cloth, rear | ANTHRAZIT | 2 | 52207290991 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Head rest leather, rear | SCHWARZ | 2 | 52207290992 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Metro/petrol/black |
CALK=Yes |
|||||||||
| 01 | Headrest cloth-leather | PETROL/SCHWARZ | 2 | 52207291001 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" |
LCDH=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 52207290993 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 01 | Headrest leather | PERLGRAU | 2 | 52207290998 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 01 | Head rest leather, rear | EVERESTGRAU | 2 | 52207290996 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau |
CAH6=Yes CALJ=Yes |
|||||||||
| 01 | Headrest cloth-leather | SILBER/PERLGRAU | 2 | 52207291002 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" Without button |
LCDH=Yes |
|||||||||
| 02 | Head restraint guide rear | OYSTER | 2 | 52207288916 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster/oyster" With button |
LCDH=Yes |
|||||||||
| 02 | Head restraint guide rear | OYSTER | 2 | 52207288914 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather "Dakota"/schwarz Without button |
BDAT=Yes BEL1=Yes BEL2=Yes CALJ=Yes CALK=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCSW=Yes |
|||||||||
| 02 | Head restraint guide rear | SCHWARZ | 2 | 52207288915 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather "Dakota"/schwarz With button |
BDAT=Yes BEL1=Yes BEL2=Yes CALJ=Yes CALK=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCSW=Yes |
|||||||||
| 02 | Head restraint guide rear | SCHWARZ | 2 | 52207288913 | Shop at ECS Tuning | |||||
