Rear seat center armrest for BMW 3 Series F35 335Li (2015)

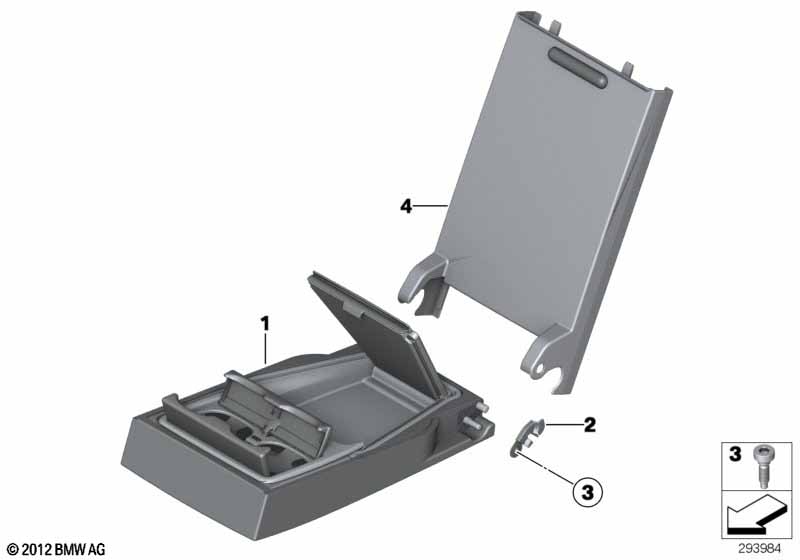

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 335Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 01 | Armrest, vinyl, rear center | SCHWARZ | 1 | 52207308636 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Armrest, leather, rear center | KORALLROT | 1 | 52207361040 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige |
KCDF=Yes |
|||||||||
| 01 | Armrest, vinyl, rear center | VENETOBEIGE | 1 | 52207308637 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Accent oyster dark |
LCL9=Yes |
|||||||||
| 01 | Armrest, leather, rear center | OYSTER | 1 | 52207308634 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/sattel-braun/excl. seam |
LCLX=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SATTELBRAUN | 1 | 52207308635 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 01 | Armrest, leather, rear center | EVERESTGRAU | 1 | 52207361039 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
LCDF=Yes LCLY=Yes |
|||||||||
| 01 | Armrest, leather, rear center | VENETOBEIGE | 1 | 52207308633 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/Accent oyster dark or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCL8=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SCHWARZ | 1 | 52207307936 | Shop at ECS Tuning | |||||
| 02 | Detent unit, left | 1 | 52207250809 | Shop at ECS Tuning | ||||||
| 02 | Detent unit, right | 1 | 52207250810 | Shop at ECS Tuning | ||||||
| 03 | Collar screw | M6 | 1 | 07147160601 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 04 | rear center armrest covers | OYSTER | 1 | 52207291689 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 04 | rear center armrest covers | VENETOBEIGE | 1 | 52207311341 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/perl-grau/akzent-schwarz or Leather "Dakota"/schwarz |
KCSW=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCL7=Yes LCSW=Yes |
|||||||||
| 04 | rear center armrest covers | SCHWARZ | 1 | 52207291688 | Shop at ECS Tuning | |||||
