Seat, front, seat frame for BMW 7 Series F02 LCI 740Li (2015)

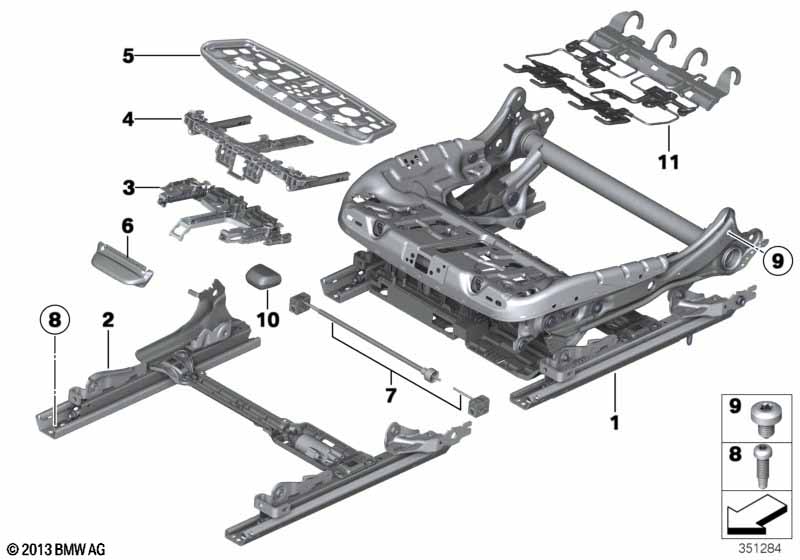

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic seat electric parts Sports seat electric parts ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 01 | Seat frame, semi-electric, left | 1 | 07/2013 | 52107299667 | Shop at ECS Tuning | |||||
| 01 | Seat frame, semi-electric, right | 1 | 07/2013 | 52107299668 | Shop at ECS Tuning | |||||
| Basic seat electric parts Sports seat electric parts ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 01 | Seat frame, semi-electric, left | 1 | 07/2013 | 52107299669 | Shop at ECS Tuning | |||||
| 01 | Seat frame, semi-electric, right | 1 | 07/2013 | 52107299670 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Seat frame, electr. left | 1 | 07/2013 | 52107329931 | Shop at ECS Tuning | |||||
| 01 | Seat frame, electr. right | 1 | 07/2013 | 52107329932 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 07/2013 | 52107329941 | Shop at ECS Tuning | |||||
| 01 | Seat frame, comfort seat, right | 1 | 07/2013 | 52107329942 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat Basic seat electric parts Sports seat electric parts ONLY APPLIES TO CO-DRIVERS SIDE |
S481A=Yes |
|||||||||
| 01 | Seat frame, semi-electric, left | 1 | 07/2013 | 52107299667 | Shop at ECS Tuning | |||||
| 01 | Seat frame, semi-electric, right | 1 | 07/2013 | 52107299668 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat Basic seat electric parts Sports seat electric parts ONLY APPLIES TO DRIVER'S SIDE |
S481A=Yes |
|||||||||
| 01 | Seat frame, semi-electric, left | 1 | 07/2013 | 52107299669 | Shop at ECS Tuning | |||||
| 01 | Seat frame, semi-electric, right | 1 | 07/2013 | 52107299670 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 02 | Seat rail, electric, left | 1 | 52107314201 | Shop at ECS Tuning | ||||||
| 02 | Seat rail, electric, right | 1 | 52107314206 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat Thigh bolster, manual |
S481A=Yes |
|||||||||
| 03 | Mechanism, thigh bolster, upper | 2 | 52107424508 | Shop at ECS Tuning | ||||||
| 04 | Mechanism, thigh bolster, lower | 2 | 52107424507 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory or Sports seat |
S456A=Yes S481A=Yes |
|||||||||
| 05 | Carrier thigh support | 2 | 52107299673 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat Thigh bolster, manual |
S481A=Yes |
|||||||||
| 06 | Handle for thigh bolster | 2 | 52107317461 | Shop at ECS Tuning | ||||||
| 07 | Set of flexible shafts | 2 | 52107314203 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | M10X37 | 8 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 09 | Countersunk screw | M10X16-8.8 SW | 8 | 07119908419 | Shop at ECS Tuning | |||||
| 10 | Handle, seat fore-aft adjustment | 2 | 52107378710 | Shop at ECS Tuning | ||||||
| 11 | Spring support, basic | 2 | 52107299674 | Shop at ECS Tuning | ||||||
