Seat, front, backrest frame for BMW 7 Series F01 LCI 750dX (2015)

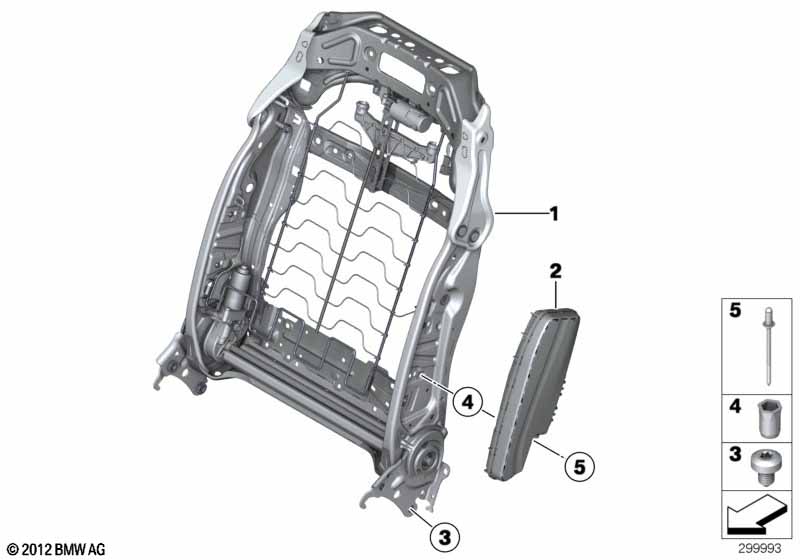

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 750dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 07/01/2012 |
|||||||||
| 01 | Backrest frame, base seat | 2 | 52107299679 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Backrest frame, comfort seat | KHV 80MM | 2 | 52107329919 | Shop at ECS Tuning | |||||
| 02 | Side airbag, front left seat | 2 | 72127393827 | Shop at ECS Tuning | ||||||
| 02 | Side airbag, front right seat | 2 | 72127393828 | Shop at ECS Tuning | ||||||
| 03 | Countersunk screw | M10X16-8.8 SW | 8 | 07119908419 | Shop at ECS Tuning | |||||
| 04 | Blind rivet nut, flat headed | M6 | 4 | 07147132311 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Blind rivet | AL-A2 | 2 | 07147216152 | Shop at ECS Tuning | |||||
