Seat, front, electrical and motors for BMW 7 Series F02 LCI 730Ld (2015)

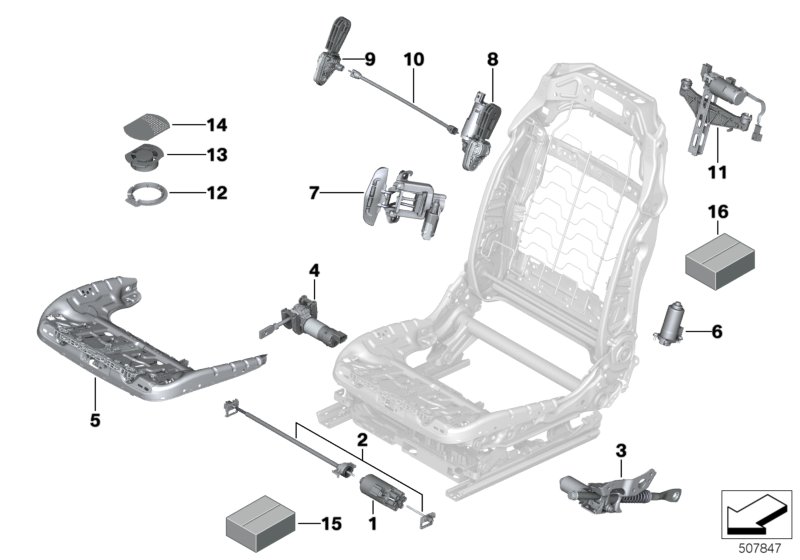

This Seat, front, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive, longitudinal seat adjustment | 2 | 52107314200 | Shop at ECS Tuning | ||||||
| 02 | Set of flexible shafts | 2 | 52107314203 | Shop at ECS Tuning | ||||||
| 03 | Drive, seat height adjustment left | 1 | 52107314221 | Shop at ECS Tuning | ||||||
| 03 | Drive, seat height adjustment right | 1 | 52107314222 | Shop at ECS Tuning | ||||||
| 04 | Drive, seat angle adjustment left | 1 | 52107314225 | Shop at ECS Tuning | ||||||
| 04 | Drive, seat angle adjustment right | 1 | 52107314226 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 05 | Mechanism, thigh bolster, left | 2 | 52107314211 | Shop at ECS Tuning | ||||||
| 05 | Mechanism, thigh bolster, right | 2 | 52107364388 | Shop at ECS Tuning | ||||||
| 06 | Drive, backrest adjustment | 2 | 52107314218 | Shop at ECS Tuning | ||||||
| 07 | Drive, backrest width adjustment, left | 2 PIN | 2 | 52107314215 | Shop at ECS Tuning | |||||
| 07 | Drive, backrest width adjustment, right | 4 PIN | 2 | 52107314216 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 08 | Actuator f upper backrest adjustment | 2 | 52107314212 | Shop at ECS Tuning | ||||||
| 09 | Gear unit, backrest head adj. | 2 | 52107314213 | Shop at ECS Tuning | ||||||
| 10 | Set of flexible shafts | 2 | 52107454056 | NoS | Shop at ECS Tuning | |||||
| 11 | Drive, vertical headrest adjustment | 2 | 52107314217 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front |
S453A=Yes |
|||||||||
| 12 | Insert for ventilator | 4 | 52107068075 | $1.14 | Shop at ECS Tuning | |||||
| 13 | Fan | ALU KABEL LANG | 4 | 52109490353 | Shop at ECS Tuning | |||||
| 14 | Grill insert | 4 | 52207062867 | $8.52 | Shop at ECS Tuning | |||||
| 15 | Mounting hardware kit for seat frame | 2 | 52107314220 | Shop at ECS Tuning | ||||||
| 16 | Set of fittings, backrest | 2 | 52107314219 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 730Ld Seat, front, electrical and motors?
- This technical diagram illustrates the Seat, front, electrical and motors within the Seats group for the 7 Series F02 LCI 730Ld produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Drive, longitudinal seat adjustment (Part #52107314200).
- Which models use the hardware listed in this Seat, front, electrical and motors?
- The hardware and components featured in the Seat, front, electrical and motors are specific to the 7 Series F02 LCI 730Ld produced during 2015. These technical specifications ensure that parts like the Drive, longitudinal seat adjustment (52107314200) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, electrical and motors assembly?
- Each item in the Seat, front, electrical and motors corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 730Ld, you can identify the Drive, longitudinal seat adjustment by locating its position on the schematic, which then links to the official BMW part number 52107314200 for the Seats section.
