Seat, front, folding tray for BMW 7 Series F02 LCI 730Li (2015)

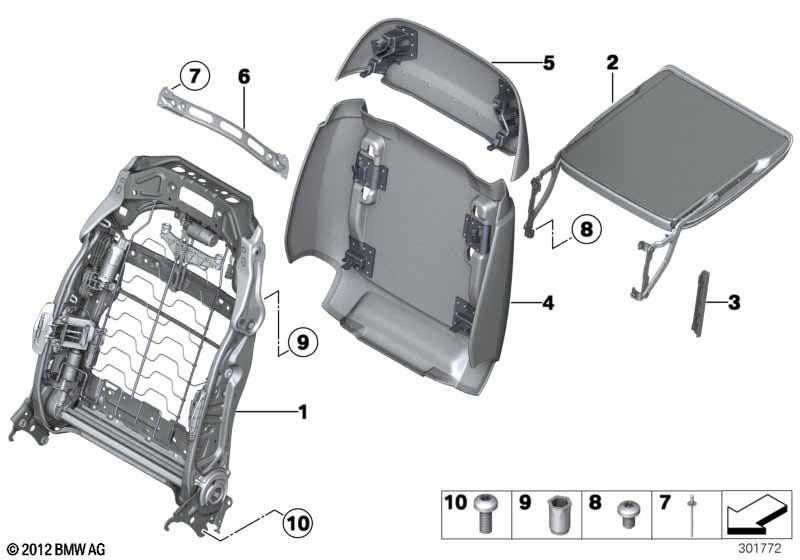

This Seat, front, folding tray technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.

Seat, front, folding tray
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Comfort seat with memory
and
Trays in rear
S456A=Yes

S4UVA=Yes
01 Backrest frame, comfort seat KHV 80MM 2 52107329919 Shop at ECS Tuning
02 Folding table LCSW SCHWARZ 2 52107243042 Shop at ECS Tuning
02 Folding table LCDF VEN. BEIGE 2 52107243043 Shop at ECS Tuning
02 Folding table LCDH,LCCX OYST. 2 52107243045 Shop at ECS Tuning
02 Folding tray, leather NASW SCHWARZ 2 52107243047 Shop at ECS Tuning
02 Folding tray, leather NADH,NACX OYST. 2 52107243050 NoS Shop at ECS Tuning
02 Folding table LCDK BARR. ROT 2 52107265336 Shop at ECS Tuning
02 Folding table LCD5 SAT. BRAUN 2 52107265337 Shop at ECS Tuning
02 Folding tray, leather NAD5 SAT.BRAUN 2 52107265339 Shop at ECS Tuning
02 Folding table LCEW ELF.WEISS 2 52107319103 Shop at ECS Tuning
02 Folding tray, leather NADF VEN.BEIGE 2 52107344960 NoS Shop at ECS Tuning
02 Folding tray, leather NAEW ELF.WEISS 2 52107344962 NoS Shop at ECS Tuning
03 Covering left SCHWARZ 1 52107243055 Shop at ECS Tuning
03 Covering right SCHWARZ 1 52107243056 Shop at ECS Tuning
03 Covering left VENETOBEIGE 1 52107243057 Shop at ECS Tuning
03 Covering right VENETOBEIGE 1 52107243058 Shop at ECS Tuning
03 Covering left OYSTER 1 52107243061 Shop at ECS Tuning
03 Covering right OYSTER 1 52107243062 Shop at ECS Tuning
03 Covering left BARRIQUEROT 1 52107265341 Shop at ECS Tuning
03 Covering right BARRIQUEROT 1 52107265342 Shop at ECS Tuning
03 Covering left SATTELBRAUN 1 52107265343 Shop at ECS Tuning
03 Covering right SATTELBRAUN 1 52107265344 Shop at ECS Tuning
03 Covering left ELFENBEINWEISS 1 52107319105 NoS Shop at ECS Tuning
03 Covering right ELFENBEINWEISS 1 52107319106 NoS Shop at ECS Tuning
04 Rear section, Comfort seat, lower NAD5 SAT.BRAUN 2 52107321181 ENDED, NoS Shop at ECS Tuning
For vehicles with
Leather "Dakota"
LC=Yes
04 Rear section, Comfort seat, lower LCDK BAR.ROT 2 52107319100 NoS Shop at ECS Tuning
For vehicles with
Leather "Dakota"
or
Leather Nappa
LC=Yes

NA=Yes
04 Rear section, Comfort seat, lower SCHWARZ 2 52107319096 Shop at ECS Tuning
04 Rear section, Comfort seat, lower VENETOBEIGE 2 52107319097 Shop at ECS Tuning
04 Rear section, Comfort seat, lower OYSTER 2 52107319098 Shop at ECS Tuning
04 Rear section, Comfort seat, lower ELFENBEINWEISS 2 52107319099 NoS Shop at ECS Tuning
04 Rear section, Comfort seat, lower LCD5 SAT. BRAUN 2 52107319101 Shop at ECS Tuning
For vehicles with
Leather "Dakota"
LC=Yes
05 Rear section, Comfort seat, upper LCDK BAR.ROT 2 52107319094 NoS Shop at ECS Tuning
For vehicles with
Leather "Dakota"
or
Leather Nappa
LC=Yes

NA=Yes
05 Rear section, Comfort seat, upper SCHWARZ 2 52107319090 Shop at ECS Tuning
05 Rear section, Comfort seat, upper VENETOBEIGE 2 52107319091 Shop at ECS Tuning
05 Rear section, Comfort seat, upper OYSTER 2 52107319092 Shop at ECS Tuning
05 Rear section, Comfort seat, upper ELFENBEINWEISS 2 52107319093 NoS Shop at ECS Tuning
05 Rear section, Comfort seat, upper LCD5 SAT.BRAUN 2 52107319095 Shop at ECS Tuning
06 Cross brace for folding tray 2 52107299685 Shop at ECS Tuning
07 Blind rivet 4,0X10 8 52107042164 $0.29 Shop at ECS Tuning
08 Fillister head screw M6X10 8 07149156955 Shop at ECS Tuning
09 Blind rivet nut, flat headed M6 8 07147132311 $1.96 Shop at ECS Tuning
10 Fillister head screw M6X16 8 07147131792 $1.16 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
  • ENDED = the part has been discontinued (no longer available).
