Rear seat center armrest for BMW 3 Series F34 GT 320d (2015)

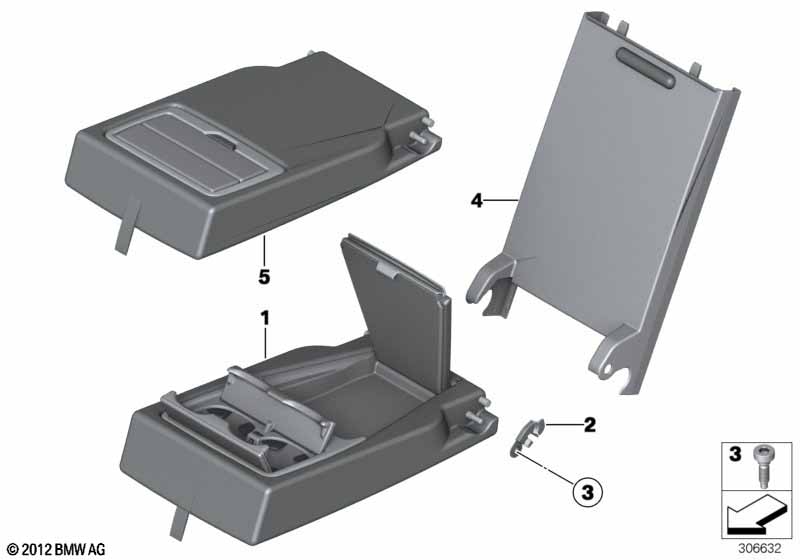

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package and Cloth Hexagon/Alcantara/anthracite |
S493A=Yes HAAT=Yes |
|||||||||
| 01 | Armrest, leather, rear center | ANTHRAZIT | 1 | 52208056900 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/everest-grau/akzent-schw. |
S493A=Yes LCL4=Yes |
|||||||||
| 01 | Armrest, leather, rear center | EVERESTGRAU | 1 | 52207361039 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/sattel-braun/excl. seam |
S493A=Yes LCLX=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SATTELBRAUN | 1 | 52207308635 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/korall-rot/akzent-schwarz |
S493A=Yes LCL5=Yes |
|||||||||
| 01 | Armrest, leather, rear center | KORALLROT | 1 | 52207361040 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/anthracite |
S493A=Yes CBAT=Yes |
|||||||||
| 01 | Center armrest, fabric | ANTHRAZIT | 1 | 52207352207 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/black |
S493A=Yes KCSW=Yes |
|||||||||
| 01 | Armrest, vinyl, rear center | SCHWARZ | 1 | 52207308636 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige |
S493A=Yes KCDF=Yes |
|||||||||
| 01 | Armrest, vinyl, rear center | VENETOBEIGE | 1 | 52207308637 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
S493A=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 01 | Armrest, leather, rear center | OYSTER | 1 | 52207308634 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster or Fabric/leather Breeze/oyster/black |
S493A=Yes CBDH=Yes CBOP=Yes |
|||||||||
| 01 | Center armrest, fabric | OYSTER | 1 | 52207352208 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot |
S493A=Yes BEL1=Yes BEL2=Yes |
|||||||||
| 01 | Center armrest, fabric | ANTHRAZIT | 1 | 52207352204 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Move/anthracite or Fabric Move/amber or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot |
S493A=Yes BDAT=Yes BDLI=Yes CCL1=Yes CCL2=Yes |
|||||||||
| 01 | Center armrest, fabric | ANTHRAZIT | 1 | 52207352202 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather 'Dakota' venetobeige black |
S493A=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCV1=Yes |
|||||||||
| 01 | Armrest, leather, rear center | VENETOBEIGE | 1 | 52207308633 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/black/Accent red or Leather Dakota/black/akzent-rot or Leather Dakota/black/Accent oyster dark or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S493A=Yes KCL3=Yes LCL3=Yes LCL8=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, leather, rear center | SCHWARZ | 1 | 52207307936 | Shop at ECS Tuning | |||||
| 02 | Detent unit, left | 1 | 52207250809 | Shop at ECS Tuning | ||||||
| 02 | Detent unit, right | 1 | 52207250810 | Shop at ECS Tuning | ||||||
| 03 | Collar screw | M6 | 1 | 07147160601 | $1.05 | Shop at ECS Tuning | ||||
| 04 | rear center armrest covers | SCHWARZ | 1 | 52207291688 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec or Leather "Dakota" |
KC=Yes LC=Yes |
|||||||||
| 04 | rear center armrest covers | VENETOBEIGE | 1 | 52207311341 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze or Leather "Dakota" |
CB=Yes LC=Yes |
|||||||||
| 04 | rear center armrest covers | OYSTER | 1 | 52207291689 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/everest-grau/akzent-schw. |
S493A=No LCL4=Yes |
|||||||||
| 05 | Armrest, leather, rear center | EVERESTGRAU | 1 | 52207293858 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/korall-rot/akzent-schwarz |
S493A=No LCL5=Yes |
|||||||||
| 05 | Armrest, leather, rear center | KORALLROT | 1 | 52207293859 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota" saddle brown |
S493A=No LCD3=Yes |
|||||||||
| 05 | Armrest, leather, rear center | SATTELBRAUN | 1 | 52207309200 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster |
S493A=No CBDH=Yes |
|||||||||
| 05 | Center armrest, fabric | OYSTER | 1 | 52207315048 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/anthracite |
S493A=No CBAT=Yes |
|||||||||
| 05 | Center armrest, fabric | ANTHRAZIT | 1 | 52207315047 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige |
S493A=No KCDF=Yes |
|||||||||
| 05 | Armrest, vinyl, rear center | VENETOBEIGE | 1 | 52207315050 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Cloth Hexagon/Alcantara/anthracite |
S493A=No HAAT=Yes |
|||||||||
| 05 | Center armrest, fabric | ANTHRAZIT | 1 | 52208055003 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot |
S493A=No BEL1=Yes BEL2=Yes |
|||||||||
| 05 | Center armrest, fabric | ANTHRAZIT | 1 | 52207293837 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
S493A=No LCL9=Yes LCOM=Yes |
|||||||||
| 05 | Armrest, leather, rear center | OYSTER | 1 | 52207293857 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/black/Accent red or Sensatec/black or Sensatec/black |
S493A=No KCL3=Yes KCSM=Yes KCSW=Yes |
|||||||||
| 05 | Armrest, vinyl, rear center | SCHWARZ | 1 | 52207315049 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Move/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot |
S493A=No BDAT=Yes CCL1=Yes CCL2=Yes |
|||||||||
| 05 | Center armrest, fabric | ANTHRAZIT | 1 | 52207293835 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/black/akzent-rot or Leather Dakota/black/Accent oyster dark or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S493A=No LCL3=Yes LCL8=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 05 | Armrest, leather, rear center | SCHWARZ | 1 | 52207293845 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather 'Dakota' venetobeige black |
S493A=No LCDF=Yes LCFJ=Yes LCFL=Yes LCV1=Yes |
|||||||||
| 05 | Armrest, leather, rear center | VENETOBEIGE | 1 | 52207309201 | Shop at ECS Tuning | |||||
