Seat, front, seat frame for BMW 4 Series F32 LCI 420dX (2020)

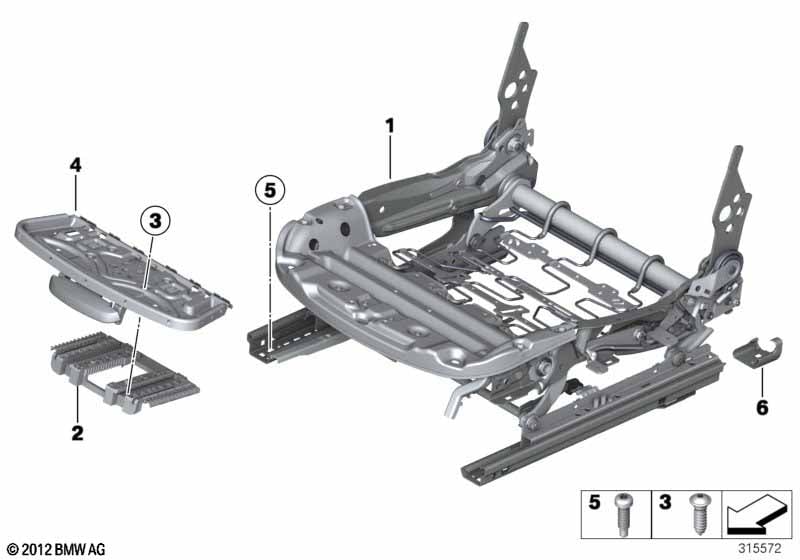

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Seat adjuster, electric, with memory |
S459A=No |
||||||||
| 01 | seat mechanism left | 1 | 52107270153 | Shop at ECS Tuning | ||||||
| 01 | seat mechanism right | 1 | 52107270154 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat mech. assembly, Sport seat, left | 1 | 52107285857 | Shop at ECS Tuning | ||||||
| 01 | Seat mech. assembly, Sport seat, right | 1 | 52107285858 | Shop at ECS Tuning | ||||||
| 02 | Connection element for thigh support | 2 | 52107161312 | $11.64 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | BL 7,2X22 | 8 | 52107160653 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Carrier thigh support | 2 | 52107161311 | $55.77 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 06 | Protective cap, seat rail, rear left | 1 | 52107365219 | Shop at ECS Tuning | ||||||
| 06 | Protective cap, seat rail, right rear | 1 | 52107365220 | Shop at ECS Tuning | ||||||
