Seat, rear, seat frame, base seat for BMW 4 Series F33 425d (2015)

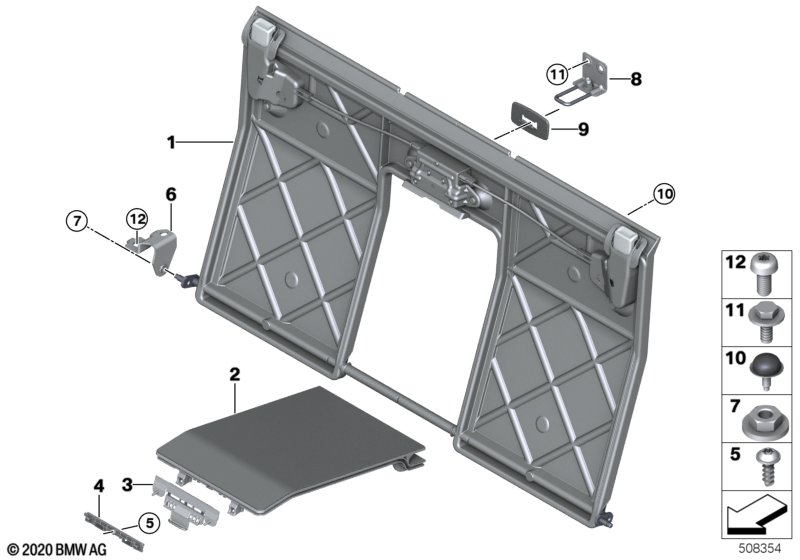

This Seat, rear, seat frame, base seat technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 425d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | backrest frame el. fa | SCHWARZ | 1 | 52209113318 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | backrest frame el. fa | SCHWARZ | 1 | 52209129122 | Shop at ECS Tuning | |||||
| 02 | Supporting part, filler | SCHWARZ | 1 | 52209113321 | $38.59 | Shop at ECS Tuning | ||||
| 03 | Unlocking unit | 1 | 52209113035 | $23.38 | Shop at ECS Tuning | |||||
| 04 | Cover for armrest release | 1 | 52209113036 | $13.30 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | ST4X10 ZNS3 | 1 | 52209113040 | $1.73 | Shop at ECS Tuning | ||||
| 06 | Bearing exterior left | 1 | 52209113037 | $5.86 | Shop at ECS Tuning | |||||
| 06 | Bearing exterior right | 1 | 52209113038 | $5.86 | Shop at ECS Tuning | |||||
| 07 | Nut | M8 | 2 | 52209113039 | $1.48 | Shop at ECS Tuning | ||||
| 08 | Catch bracket | 1 | 52207328110 | Shop at ECS Tuning | ||||||
| For vehicles with Fabric Move/anthracite or Sensatec/veneto-beige or Sensatec/black/Accent red or Sensatec/black or Sensatec/veneto-beige or Leather "Dakota" saddle brown or Leather "Dakota/veneto-beige" or Leath.Dakota/elfenbein-white/acc.oyster or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/veneto-beige/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota / mocca or Leather Dakota/black/contrast blue or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz or Leather Dakota/nacht-blue/accent oyster or Leather 'Dakota' venetobeige black |
BDAT=Yes KCDF=Yes KCL3=Yes KCSW=Yes KCV1=Yes LCD3=Yes LCDF=Yes LCFH=Yes LCFJ=Yes LCFL=Yes LCL3=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLY=Yes LCLZ=Yes LCMY=Yes LCNL=Yes LCOM=Yes LCRY=Yes LCRZ=Yes LCSW=Yes LCTX=Yes LCV1=Yes |
|||||||||
| 09 | Cover, catch bracket | SCHWARZ | 1 | 52107188648 | Shop at ECS Tuning | |||||
| 10 | Stop buffer | 2 | 52207326087 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
