Seat, front, backrest trim covers for BMW 5 Series F11 LCI 518d (2014)

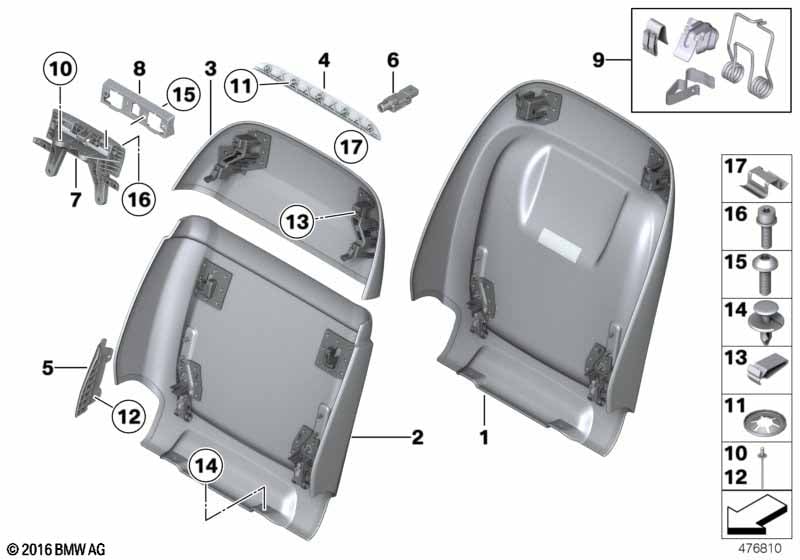

This Seat, front, backrest trim covers technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort seat with memory and Leather Nappa/mocca/Exclusive seam |
S456A=No LZMW=Yes |
|||||||||
| 01 | Rear section, basis | MOKKA | 2 | 52107371948 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Leather "Dakota/zimt-braun" |
S456A=No LCEZ=Yes |
|||||||||
| 01 | Rear section, basis | ZIMTBRAUN | 2 | 52107348095 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
S456A=No LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 01 | Rear section, basis | ELFENBEINWEISS | 2 | 52107319050 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
S456A=No LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 01 | Rear section, basis | OYSTER | 2 | 52107319049 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leatherette venetobeige black or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S456A=No AWDF=Yes K8DF=Yes K8V1=Yes LCDF=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 01 | Rear section, basis | VENETOBEIGE | 2 | 52107319048 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Fabric "Diagonal/anthracite" or Fabric 'Gray Shadow/anthracite' or Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz or Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
S456A=No AWAT=Yes AZAT=Yes K8SW=Yes LCLZ=Yes LCSJ=Yes LCSW=Yes LZLZ=Yes LZSJ=Yes |
|||||||||
| 01 | Rear section, basis | SCHWARZ | 2 | 52107319047 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather "Dakota/zimt-braun" |
S456A=Yes S4UXA=No LCEZ=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | ZIMTBRAUN | 2 | 52107348144 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather Nappa/mocca/Exclusive seam |
S456A=Yes S4UXA=No LZMW=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | MOKKA | 2 | 52107371916 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
S456A=Yes S4UXA=No LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | OYSTER | 2 | 52107319072 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black or Leathr 'Dakota' venetobeige blk ext seam |
S456A=Yes S4UXA=No K8DF=Yes LCDF=Yes LCLY=Yes LCV1=Yes LCV2=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | VENETOBEIGE | 2 | 52107319071 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz or Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
S456A=Yes S4UXA=No K8SW=Yes LCLZ=Yes LCSJ=Yes LCSW=Yes LZLZ=Yes LZSJ=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | SCHWARZ | 2 | 52107319070 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
S456A=Yes S4UXA=No LCEH=Yes LCEL=Yes LCET=Yes LZEH=Yes LZEL=Yes LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 02 | Rear section, Comfort seat, lower | ELFENBEINWEISS | 2 | 52107319073 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Ambient interior lighting and Trays in rear and Leather Nappa/mocca/Exclusive seam |
S456A=Yes S4URA=No S4UXA=No LZMW=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | LZMW MOKKA | 2 | 52107348094 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Ambient interior lighting and Trays in rear and Leather "Dakota/zimt-braun" |
S456A=Yes S4URA=No S4UXA=No LCEZ=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | ZIMTBRAUN | 2 | 52107348136 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam or Leather Dakota/oyster/Exclusive seam |
S456A=Yes S4UXA=No LCOT=Yes LCOU=Yes LCOX=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | OYSTER | 2 | 52107319058 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black or Leathr 'Dakota' venetobeige blk ext seam |
S456A=Yes S4UXA=No K8DF=Yes LCDF=Yes LCLY=Yes LCV1=Yes LCV2=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | VENETOBEIGE | 2 | 52107319057 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz or Leather Nappa/black/Exclusive seam or Leather Nappa/black/Exclusive seam |
S456A=Yes S4UXA=No K8SW=Yes LCLZ=Yes LCSJ=Yes LCSW=Yes LZLZ=Yes LZSJ=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | SCHWARZ | 2 | 52107319054 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Trays in rear and Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam |
S456A=Yes S4UXA=No LCEH=Yes LCEL=Yes LCET=Yes LZEH=Yes LZEL=Yes LZEO=Yes LZET=Yes LZEU=Yes |
|||||||||
| 03 | Rear section, Comfort seat, upper | ELFENBEINWEISS | 2 | 52107319059 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory |
S456A=No |
|||||||||
| 05 | Left support | 2 | 52107312905 | Shop at ECS Tuning | ||||||
| 05 | Right support | 2 | 52107312906 | Shop at ECS Tuning | ||||||
| For vehicles with Rear-compartment entertainment or Rear Professional entertainment center |
S6FGA=Yes S6FHA=Yes |
|||||||||
| 07 | Holder for display screen | SCHWARZ | 2 | 52107317462 | Shop at ECS Tuning | |||||
| 08 | Cover for bracket, monitor | 2 | 52107317463 | Shop at ECS Tuning | ||||||
| 09 | Repair kit clamps | 2 | 52107240386 | Shop at ECS Tuning | ||||||
| 10 | Blind rivet | AL-A2 | 1 | 07147216152 | Shop at ECS Tuning | |||||
| 11 | Axial securing clip | 15X5,7MM | 4 | 07149158226 | Shop at ECS Tuning | |||||
| 12 | Blind rivet | 4,0X10 | 2 | 52107042164 | $0.29 | Shop at ECS Tuning | ||||
| Mount for Rear Seat Entertainment | ||||||||||
| 13 | Clamp | 4 | 52107068032 | $0.71 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 4 | 07147281961 | Shop at ECS Tuning | ||||||
| For vehicles with Rear-compartment entertainment or Rear Professional entertainment center |
S6FGA=Yes S6FHA=Yes |
|||||||||
| 15 | Fillister head screw | 6 | 61317043728 | $0.38 | Shop at ECS Tuning | |||||
| 16 | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 8 | 23147576178 | Shop at ECS Tuning | |||||
| 17 | Clamp | 10 | 07147219633 | Shop at ECS Tuning | ||||||
