Seat, rear, seat frame, load-through for BMW 2 Series F22 M235iX (2016)

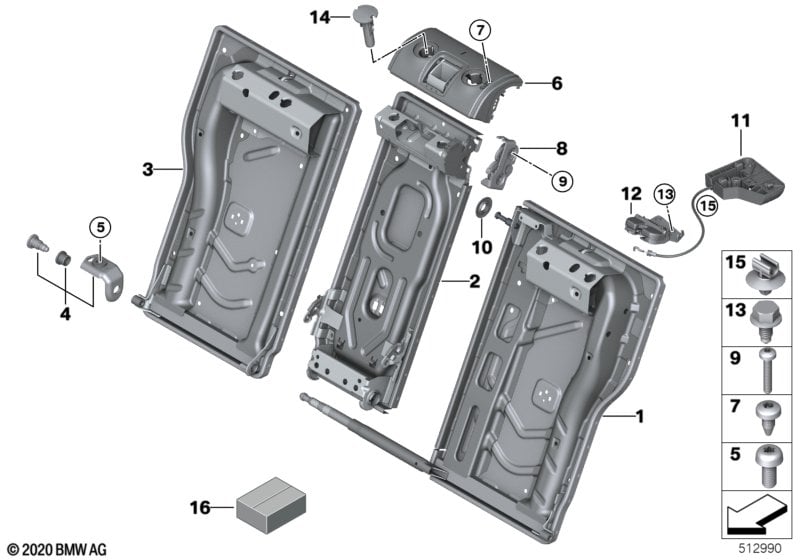

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 M235iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest left | 1 | 52207267863 | Shop at ECS Tuning | ||||||
| 02 | Frame Backrest central | 1 | 52207274534 | Shop at ECS Tuning | ||||||
| 03 | Frame, backrest right | 1 | 52207267864 | Shop at ECS Tuning | ||||||
| 04 | Lateral backrest bearing bracket | 2 | 52207274538 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 06 | Actuation unit | 1 | 52207277857 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M5X10-ZNNID SW | 1 | 07146777838 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Lock | 1 | 52207237660 | Shop at ECS Tuning | ||||||
| 09 | Fillister head screw | M8X30 | 1 | 52207266275 | Shop at ECS Tuning | |||||
| 10 | Cover | SCHWARZ | 1 | 52207295733 | Shop at ECS Tuning | |||||
| 10 | Cover | OYSTER | 1 | 52207295734 | Shop at ECS Tuning | |||||
| 11 | Unlocking unit | 2 | 52207314012 | Shop at ECS Tuning | ||||||
| 12 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 12 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X12 | 4 | 07119907416 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
