Rear seat head restraint for BMW MINI F56 JCW (2017)

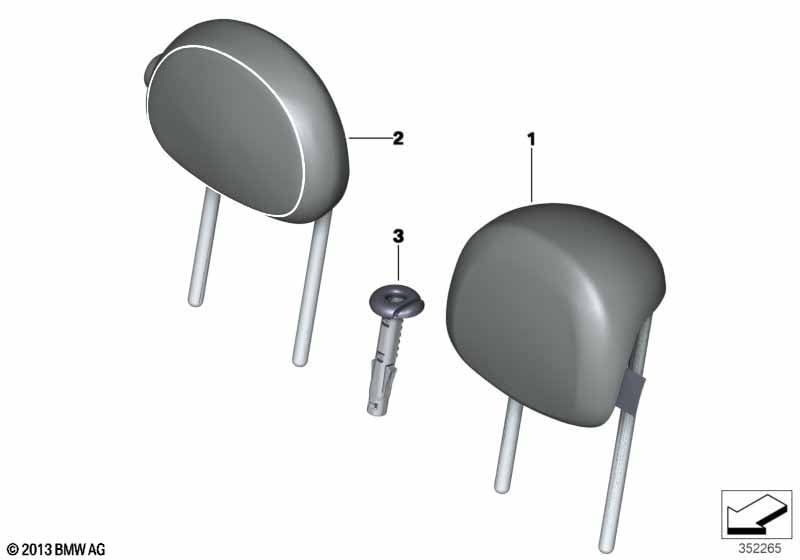

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 01 | Headrest leather | NYMJ MALT BROWN | 2 | 52207945859 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Diamond/Carbon Black |
FYE1=Yes |
|||||||||
| 01 | Headrest cloth-leather | FYE1 CARB.BLACK | 2 | 52207369382 | Shop at ECS Tuning | |||||
| For vehicles with Leather Cross Punch/pure burgundy |
NEIY=Yes |
|||||||||
| 01 | Headrest leather | NEIY BURGUNDY | 2 | 52207939730 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leatherette Bl.Pearl/carbon-black |
KDE1=Yes |
|||||||||
| 01 | Head rest cloth | KDE1 CARB.BLACK | 2 | 52207369522 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black Special series 'Yours' |
TYE1=Yes |
|||||||||
| 01 | Headrest leather | TYE1 CARB.BLACK | 2 | 52207400720 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather"Leatherette"/carbon-black |
K9E1=Yes |
|||||||||
| 01 | Headrest imitation leather | K9E1 CARB.BLACK | 2 | 52207369516 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Cross punch / carbon black |
NEE1=Yes |
|||||||||
| 01 | Headrest leather | NEE1 CARB.BLACK | 2 | 52207369524 | Shop at ECS Tuning | |||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 01 | Headrest leather | DARK TRUFFLE | 2 | 02/2018 | 52207369499 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | DARK TRUFFLE | 2 | 52207945826 | Shop at ECS Tuning | |||||
| For vehicles with MINI LOUNGE 60 Years dark maroon |
TYIH=Yes |
|||||||||
| 01 | Head rest leather, rear | DARK MAROON | 2 | 52207945024 | NoS | Shop at ECS Tuning | ||||
| 01 | Head rest leather, rear | DARK MAROON | 2 | 52207945026 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Diamond/satellite-gray |
FYGK=Yes |
|||||||||
| 01 | Headrest cloth-leather | SATELLITE GREY | 2 | 52207369498 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black |
BGE1=Yes |
|||||||||
| 01 | Head rest cloth | BGE1 CARB.BLACK | 2 | 52207340749 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Head rest cloth | BZE1 CARB.BLACK | 2 | 52207369380 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Sportsitze and Dinamica/leather in Carbon Black |
S4FNA=Yes GSE1=Yes |
|||||||||
| 01 | Head restraint 'Dinamika' | JCW, DAE1 GSE1 | 2 | 52207417120 | Shop at ECS Tuning | |||||
| For vehicles with Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' |
NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Headrest leather | T9GK SAT. GREY | 2 | 02/2018 | 52207369500 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | T9GK SAT. GREY | 2 | 52207939719 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth or Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Fabric/leatherette Bl.Pearl/carbon-black or Cloth/leather comb.Bl.P./light chequered or Cloth, Blue Pearl/Light Gray or Leather, Cross punch / carbon black or Leather, chester/satellite gray or Leather Chester/malt-brown or MINI Yours leather Lounge/carbon-black or MINI LOUNGE 60 Years dark maroon |
BGE1=Yes BZE1=Yes DAE1=Yes GSE1=Yes K9E1=Yes KDE1=Yes KDG2=Yes KDT8=Yes NEE1=Yes NYGK=Yes NYMJ=Yes TYE1=Yes TYIH=Yes |
|||||||||
| 03 | Guide, headrest | 2 | 52207368448 | Shop at ECS Tuning | ||||||
| 03 | Guide, headrest, lockable | 2 | 52207368640 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
