Seat, front, seat frame, electric for BMW 4 Series F82 M4 M4 (2017)

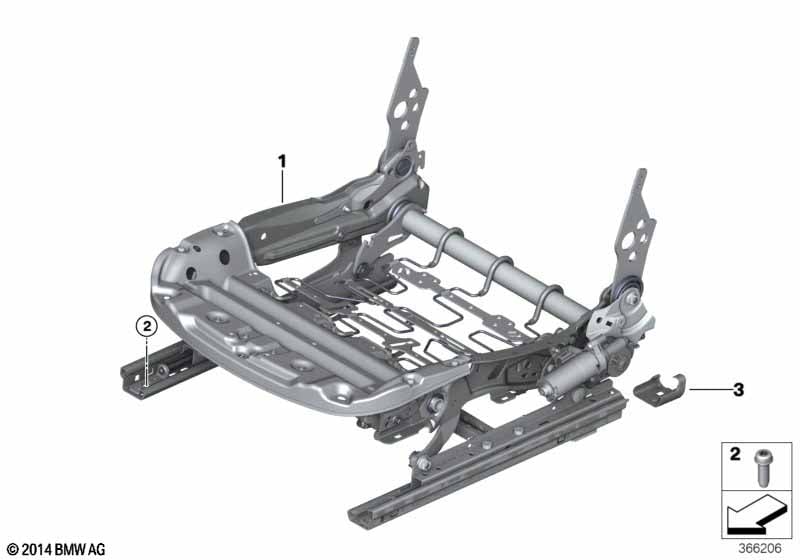

This Seat, front, seat frame, electric technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Electrical seat mechanism, left | 1 | 52107285861 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 01 | Electrical seat mechanism, right | 1 | 52107285860 | Shop at ECS Tuning | ||||||
| 02 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 03 | Protective cap, seat rail, rear left | 1 | 52107365219 | Shop at ECS Tuning | ||||||
| 03 | Protective cap, seat rail, right rear | 1 | 52107365220 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F82 M4 M4 Seat, front, seat frame, electric?
- This technical diagram illustrates the Seat, front, seat frame, electric within the Seats group for the 4 Series F82 M4 M4 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Electrical seat mechanism, left (Part #52107285861).
- Which models use the hardware listed in this Seat, front, seat frame, electric?
- The hardware and components featured in the Seat, front, seat frame, electric are specific to the 4 Series F82 M4 M4 produced during 2017. These technical specifications ensure that parts like the Electrical seat mechanism, left (52107285861) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, seat frame, electric assembly?
- Each item in the Seat, front, seat frame, electric corresponds to the numbered list below the illustration. For the 4 Series F82 M4 M4, you can identify the Electrical seat mechanism, left by locating its position on the schematic, which then links to the official BMW part number 52107285861 for the Seats section.
