Seat, rear, seat frame, base seat for BMW 4 Series F82 M4 M4 (2017)

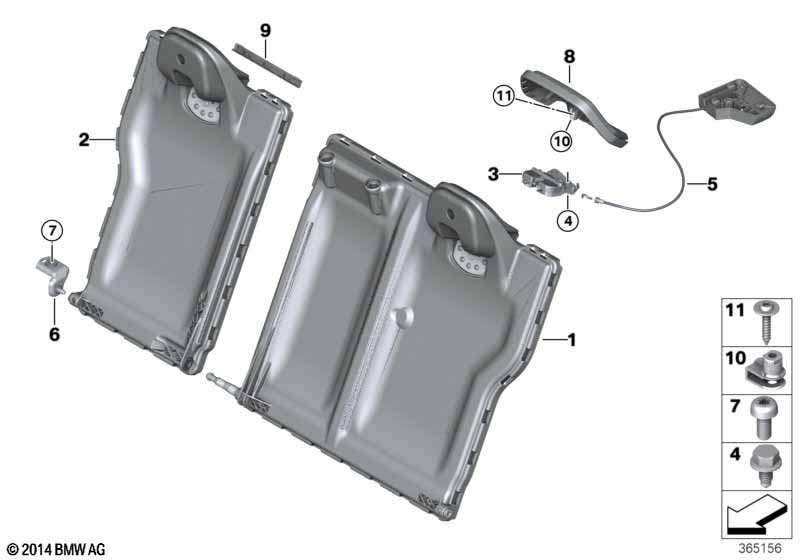

This Seat, rear, seat frame, base seat technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, base version, left | 1 | 52208054057 | Shop at ECS Tuning | ||||||
| 02 | Backrest frame, base version, right | 1 | 52208054224 | Shop at ECS Tuning | ||||||
| 03 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 03 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X12 | 4 | 07119907416 | Shop at ECS Tuning | |||||
| 05 | Bowden cable release | 2 | 52207392145 | Shop at ECS Tuning | ||||||
| 06 | Bracket backrest outer left | 1 | 52207308099 | Shop at ECS Tuning | ||||||
| 06 | Bracket backrest outer right | 1 | 52207308100 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 08 | Cover for head restraint | 2 | 52208058236 | Shop at ECS Tuning | ||||||
| 09 | Head rest cover | 2 | 52108058377 | Shop at ECS Tuning | ||||||
| 10 | C-clip for plastic nut | 2 | 07149200938 | Shop at ECS Tuning | ||||||
| 11 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F82 M4 M4 Seat, rear, seat frame, base seat?
- This technical diagram illustrates the Seat, rear, seat frame, base seat within the Seats group for the 4 Series F82 M4 M4 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Backrest frame, base version, left (Part #52208054057).
- Which models use the hardware listed in this Seat, rear, seat frame, base seat?
- The hardware and components featured in the Seat, rear, seat frame, base seat are specific to the 4 Series F82 M4 M4 produced during 2017. These technical specifications ensure that parts like the Backrest frame, base version, left (52208054057) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, seat frame, base seat assembly?
- Each item in the Seat, rear, seat frame, base seat corresponds to the numbered list below the illustration. For the 4 Series F82 M4 M4, you can identify the Backrest frame, base version, left by locating its position on the schematic, which then links to the official BMW part number 52208054057 for the Seats section.
