Seat front seat coverings for BMW 2 Series F46 Gran Tourer LCI 216d (2022)

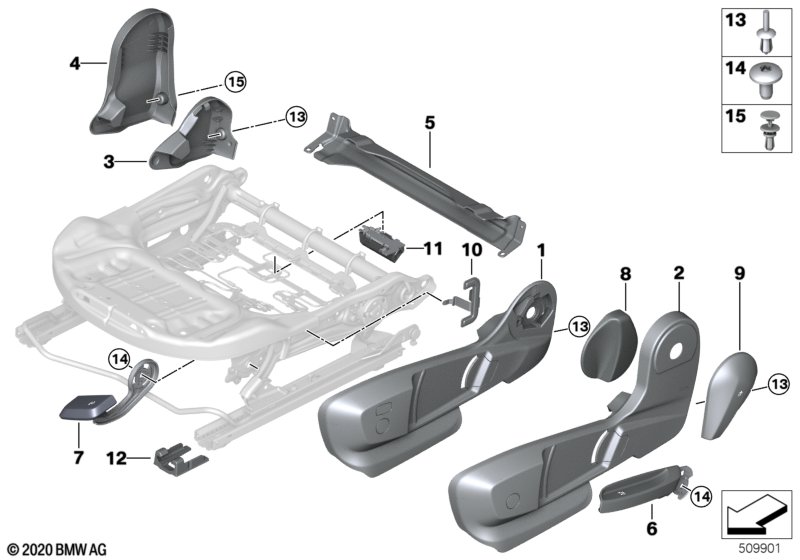

This Seat front seat coverings technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China or Seat adjuster, electric, with memory or Seat adjuster, electric, with memory |
L8AAA=No S459A=No S45AA=No |
||||||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 01 | Cover, left control | CANBERRABEIGE | 1 | 52107378087 | Shop at ECS Tuning | |||||
| 01 | Cover, right control | CANBERRABEIGE | 1 | 52107378088 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or Schwarz/Akzent blau or oyster/Akzent grau or Black |
AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes N4=Yes OA=Yes SW=Yes |
|||||||||
| 01 | Cover, left control | SCHWARZ | 1 | 52107351925 | Shop at ECS Tuning | |||||
| 01 | Cover, right control | SCHWARZ | 1 | 52107351926 | Shop at ECS Tuning | |||||
| For vehicles with Passenger seat backrest, folding and canberra-beige |
S4FKA=Yes CY=Yes |
|||||||||
| 02 | Cover, right control | CANBERRABEIGE | 1 | 52107378488 | Shop at ECS Tuning | |||||
| For vehicles with Passenger seat backrest, folding and anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or Schwarz/Akzent blau or oyster/Akzent grau or Black |
S4FKA=Yes AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes N4=Yes OA=Yes SW=Yes |
|||||||||
| 02 | Cover, right control | SCHWARZ | 1 | 52107375094 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 03 | Trim, seat inner left | CANBERRABEIGE | 1 | 52107378489 | Shop at ECS Tuning | |||||
| 03 | Trim, seat inner right | CANBERRABEIGE | 1 | 52107378490 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or Schwarz/Akzent blau or oyster/Akzent grau or Black |
AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes N4=Yes OA=Yes SW=Yes |
|||||||||
| 03 | Trim, seat inner left | SCHWARZ | 1 | 52107351921 | Shop at ECS Tuning | |||||
| 03 | Trim, seat inner right | SCHWARZ | 1 | 52107351922 | Shop at ECS Tuning | |||||
| For vehicles with Passenger seat backrest, folding and canberra-beige |
S4FKA=Yes CY=Yes |
|||||||||
| 04 | Trim, seat inner right | CANBERRABEIGE | 1 | 52107378150 | Shop at ECS Tuning | |||||
| For vehicles with Passenger seat backrest, folding and anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or Schwarz/Akzent blau or oyster/Akzent grau or Black |
S4FKA=Yes AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes N4=Yes OA=Yes SW=Yes |
|||||||||
| 04 | Trim, seat inner right | SCHWARZ | 1 | 52107375090 | Shop at ECS Tuning | |||||
| 06 | Lever, seat height adjustment, left | 1 | 52107314233 | Shop at ECS Tuning | ||||||
| 06 | Lever, seat height adjustment, right | 1 | 52107314234 | Shop at ECS Tuning | ||||||
| 07 | Lever, seat tilt adjustment, left | 1 | 52107314235 | Shop at ECS Tuning | ||||||
| 07 | Lever, seat tilt adjustment, right | 1 | 52107314236 | Shop at ECS Tuning | ||||||
| 08 | Handle left | 1 | 52107310885 | Shop at ECS Tuning | ||||||
| 08 | Handle right | 1 | 52107310886 | Shop at ECS Tuning | ||||||
| For vehicles with Passenger seat backrest, folding |
S4FKA=Yes |
|||||||||
| 09 | Handle right | 1 | 52107352694 | Shop at ECS Tuning | ||||||
| 10 | Retainer, trim cover, outer left | 1 | 52107365899 | Shop at ECS Tuning | ||||||
| 10 | Retainer, trim cover, outer right | 1 | 52107365900 | Shop at ECS Tuning | ||||||
| 11 | Bracket for footwell lamp | 2 | 52107371125 | Shop at ECS Tuning | ||||||
| 12 | Covering cap, seat rail | 8 | 52107395068 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | L = 16MM | 4 | 52108099299 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M8X12 | 2 | 07147075093 | Shop at ECS Tuning | |||||
| 15 | Expanding rivet | SCHWARZ | 2 | 52107416573 | Shop at ECS Tuning | |||||
| 15 | Expanding rivet | CANBERRABEIGE | 2 | 52107416575 | Shop at ECS Tuning | |||||
