Seat, front, seat frame for BMW 2 Series F45 Active Tourer LCI 216d (2021)

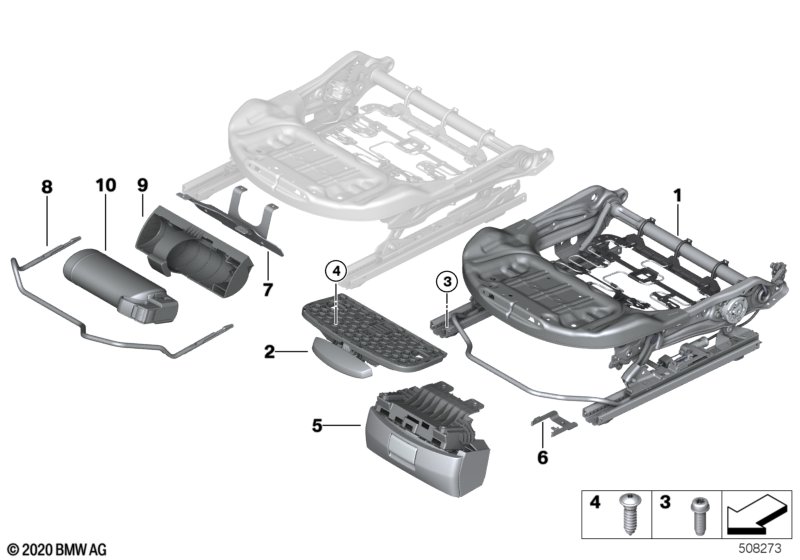

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=No S45AA=No |
||||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Seat mechanism, basic seat, left | 1 | 52107397443 | Shop at ECS Tuning | ||||||
| 01 | Seat mechanism, basic seat, right | 1 | 52107397444 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat mech. assembly, Sport seat, left | 1 | 52107310849 | Shop at ECS Tuning | ||||||
| 01 | Seat mech. assembly, Sport seat, right | 1 | 52107310850 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Seat mechanism, basic seat, left | 1 | 52107310847 | Shop at ECS Tuning | ||||||
| 01 | Seat mechanism, basic seat, right | 1 | 52107310848 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 02 | Carrier thigh support | 2 | 52107310641 | Shop at ECS Tuning | ||||||
| 03 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 04 | Sheet metal screw | BL 7,2X22 | 4 | 52107160653 | $0.42 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 05 | Storage compartment, left | 1 | 52107393683 | Shop at ECS Tuning | ||||||
| 05 | Storage tray, right | 1 | 52107393684 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 2 | 52107346118 | Shop at ECS Tuning | ||||||
| 07 | Adapter plate, fire extinguisher UKL | 1 | 82272358012 | Shop at ECS Tuning | ||||||
| 08 | Holder for fire extinguisher, left | 1 | 52107399792 | Shop at ECS Tuning | ||||||
| 08 | Holder for fire extinguisher, right | 1 | 52107400658 | Shop at ECS Tuning | ||||||
| 09 | Mount for fire extinguisher | 1 | 52109496759 | Shop at ECS Tuning | ||||||
| 10 | Fire extinguisher | 1 | 52109496756 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
