Seat, rear, seat trim covers for BMW 2 Series F46 Gran Tourer LCI 220d (2022)

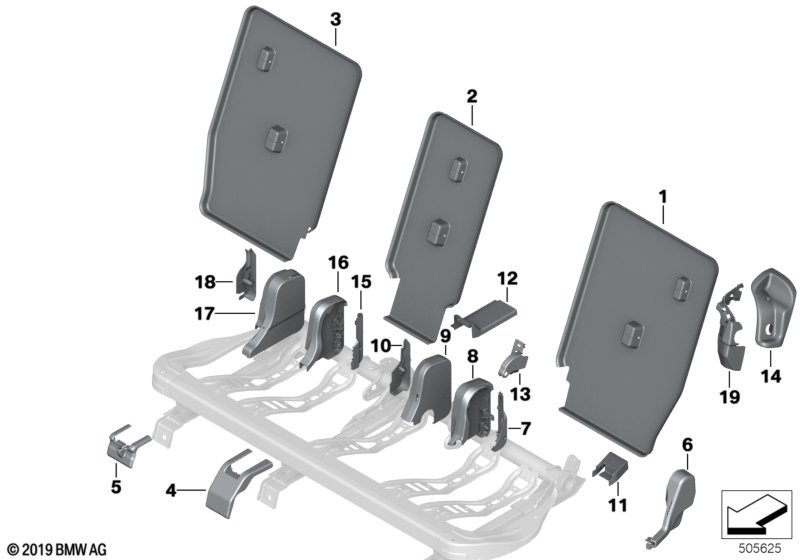

This Seat, rear, seat trim covers technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 3rd seat row |
S4UBA=Yes |
||||||||
| For vehicles with anthracite or canberra-beige or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or oyster/Akzent grau or Black |
AT=Yes CY=Yes D3=Yes L1=Yes L2=Yes L3=Yes OA=Yes SW=Yes |
|||||||||
| 01 | Trim backrest, left | SCHWARZ | 1 | 52207398685 | Shop at ECS Tuning | |||||
| 02 | Trim for backrest, center | SCHWARZ | 1 | 52207410713 | Shop at ECS Tuning | |||||
| For vehicles with Black or Fabric Grid/anthracite or Fabric Race/anthracite/gray accent or Fabric Micro Hex./Alcantara/anthracite or Sensatec/oyster or Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Leather "Dakota"/schwarz or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather Dakota perf./oyster/gray acc. or Leather, Dakota, ventilated black |
SW=Yes EGAT=Yes ERL1=Yes HMAT=Yes KCCX=Yes KCSW=Yes KFIX=Yes KFL1=Yes LCSW=Yes PDMY=Yes PDN4=Yes PDOA=Yes PDSW=Yes |
|||||||||
| 02 | Trim for backrest, center | SCHWARZ | 1 | 52207410717 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or canberra-beige or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or oyster/Akzent grau or Black |
AT=Yes CY=Yes D3=Yes L1=Yes L2=Yes L3=Yes OA=Yes SW=Yes |
|||||||||
| 03 | Trim backrest, right | SCHWARZ | 1 | 52207398686 | Shop at ECS Tuning | |||||
| 04 | Cover, seat rail, outer left | SCHWARZ | 1 | 52207381305 | Shop at ECS Tuning | |||||
| 04 | Cover, seat rail, outer right | SCHWARZ | 1 | 52207381306 | Shop at ECS Tuning | |||||
| 05 | Trim cover, seat rail, inner left | SCHWARZ | 1 | 52207381309 | Shop at ECS Tuning | |||||
| 05 | Trim cover, seat rail, inner right | SCHWARZ | 1 | 52207381310 | Shop at ECS Tuning | |||||
| 06 | Trim for backrest, outer left | SCHWARZ | 1 | 52207411263 | Shop at ECS Tuning | |||||
| 06 | Trim for backrest, outer right | SCHWARZ | 1 | 52207411264 | Shop at ECS Tuning | |||||
| 07 | Trim for backrest, inner left | SCHWARZ | 1 | 52207381297 | Shop at ECS Tuning | |||||
| 09 | Trim for backrest, inner left | SCHWARZ | 1 | 52207381291 | Shop at ECS Tuning | |||||
| 10 | Trim for backrest, inner left | SCHWARZ | 1 | 52207381294 | Shop at ECS Tuning | |||||
| 11 | Cover, seat rail, outer left | SCHWARZ | 1 | 52207381311 | Shop at ECS Tuning | |||||
| 11 | Cover, seat rail, outer right | SCHWARZ | 1 | 52207381312 | Shop at ECS Tuning | |||||
| 12 | Trim cover, seat rail, inner left | SCHWARZ | 1 | 52207381395 | Shop at ECS Tuning | |||||
| 12 | Trim cover, seat rail, inner right | SCHWARZ | 1 | 52207381396 | Shop at ECS Tuning | |||||
| 13 | Trim, center armrest, left | SCHWARZ | 1 | 52207384729 | Shop at ECS Tuning | |||||
| 13 | Trim, center armrest, right | SCHWARZ | 1 | 52207384730 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or oyster/Akzent grau or Black |
AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes OA=Yes SW=Yes |
|||||||||
| 14 | Cover left | SCHWARZ | 1 | 52207381307 | Shop at ECS Tuning | |||||
| 14 | Cover right | SCHWARZ | 1 | 52207381308 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or canberra-beige or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or oyster/Akzent grau or Black |
AT=Yes CY=Yes D3=Yes L1=Yes L2=Yes L3=Yes OA=Yes SW=Yes |
|||||||||
| 15 | Trim for backrest, inner right | SCHWARZ | 1 | 52207381302 | Shop at ECS Tuning | |||||
| 16 | Trim for backrest, inner right | SCHWARZ | 1 | 52207401258 | Shop at ECS Tuning | |||||
| 17 | Trim for backrest, inner left | SCHWARZ | 1 | 52207381295 | Shop at ECS Tuning | |||||
| 18 | Trim for backrest, inner right | SCHWARZ | 1 | 52207381298 | Shop at ECS Tuning | |||||
| For vehicles with Black or Fabric Grid/anthracite or Fabric Race/anthracite/gray accent or Fabric Micro Hex./Alcantara/anthracite or Sensatec/oyster or Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Leather "Dakota"/schwarz or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather Dakota perf./oyster/gray acc. or Leather, Dakota, ventilated black |
SW=Yes EGAT=Yes ERL1=Yes HMAT=Yes KCCX=Yes KCSW=Yes KFIX=Yes KFL1=Yes LCSW=Yes PDMY=Yes PDN4=Yes PDOA=Yes PDSW=Yes |
|||||||||
| 18 | Trim for backrest, inner right | SCHWARZ | 1 | 52207381296 | Shop at ECS Tuning | |||||
| 19 | Bracket, trim, left | 1 | 52207373865 | NoS | Shop at ECS Tuning | |||||
| 19 | Bracket, trim, right | 1 | 52207373866 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
