Seat, rear, seat frame for BMW 2 Series F45 Active Tourer 216d (2018)

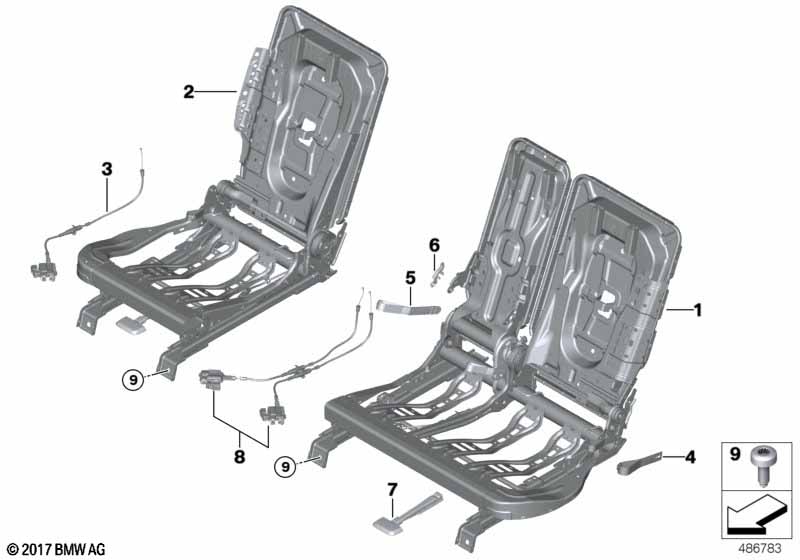

This Seat, rear, seat frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Seat adjuster for rear seats |
S4FDA=Yes |
||||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207432605 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207432604 | NoS | Shop at ECS Tuning | |||||
| 02 | Seat carrier, rear right | 1 | 52207432606 | Shop at ECS Tuning | ||||||
| 03 | Backrest, remote release, right | 1 | 52207432607 | Shop at ECS Tuning | ||||||
| 04 | Release loop outer | 2 | 52207432602 | Shop at ECS Tuning | ||||||
| 05 | Release loop center | 1 | 52207432603 | Shop at ECS Tuning | ||||||
| 06 | Detent unit, left | 1 | 52207250809 | Shop at ECS Tuning | ||||||
| 06 | Detent unit, right | 1 | 52207250810 | Shop at ECS Tuning | ||||||
| 07 | Handle, seat fore-aft adjustment | 2 | 52207432599 | Shop at ECS Tuning | ||||||
| 08 | Backrest, remote release, left | 1 | 52207432608 | Shop at ECS Tuning | ||||||
| 09 | Fillister head screw | M10X25 | 9 | 07147395678 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
