Seat, front, folding tray for BMW 2 Series F46 Gran Tourer 218i (2018)

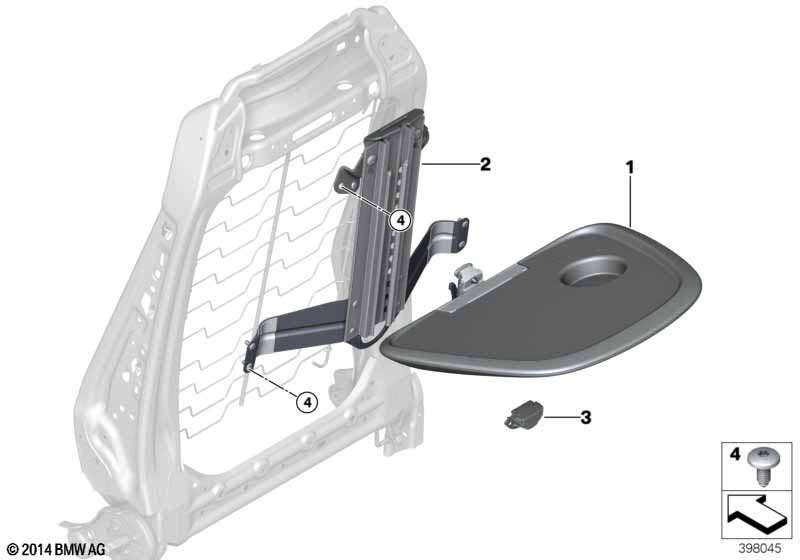

This Seat, front, folding tray technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.

Seat, front, folding tray
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Trays in rear
S4UVA=Yes
01 Table SCHWARZ 2 52107351933 Shop at ECS Tuning
01 Table CANBERRABEIGE 2 52107378177 Shop at ECS Tuning
02 Rail 2 52107349787 Shop at ECS Tuning
03 Covering cap SCHWARZ 4 52107410609 Shop at ECS Tuning
03 Covering cap CANBERRABEIGE 4 52107410610 Shop at ECS Tuning
04 Fillister head screw M6X12 4 51439496586 Shop at ECS Tuning
