Seat front seat coverings for BMW MINI Countryman F60 Cooper (2020)

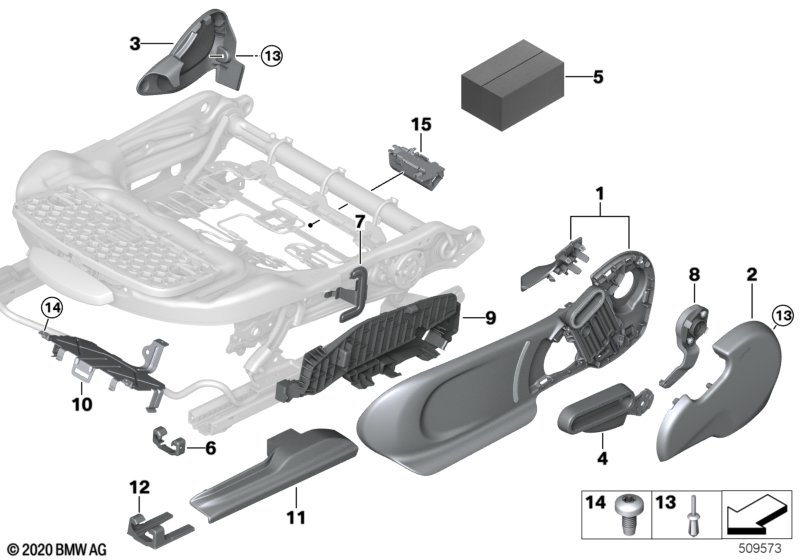

This Seat front seat coverings technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Height adjustment, passenger seat |
S450A=Yes |
|||||||||
| 01 | Trim, seat outer left | 1 | 52107398337 | Shop at ECS Tuning | ||||||
| 01 | Trim, seat outer right | 1 | 52107398338 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Trim for seat outer electric left | 1 | 52107416369 | Shop at ECS Tuning | ||||||
| 01 | Trim seat outer electric right | 1 | 52107416370 | NoS | Shop at ECS Tuning | |||||
| Passenger's side | ||||||||||
| 02 | Covering left | 1 | 52107410563 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 52107410564 | Shop at ECS Tuning | ||||||
| 03 | Trim, seat inner left | 1 | 52107341635 | Shop at ECS Tuning | ||||||
| 03 | Trim, seat inner right | 1 | 52107341636 | Shop at ECS Tuning | ||||||
| 04 | Lever, seat height adjustment, left | 1 | 52107410571 | Shop at ECS Tuning | ||||||
| 04 | Lever, seat height adjustment, right | 1 | 52107410572 | Shop at ECS Tuning | ||||||
| 05 | Fastening set for covers | 2 | 52107419461 | Shop at ECS Tuning | ||||||
| 06 | Covering cap, seat rail | 2 | 52107310857 | Shop at ECS Tuning | ||||||
| 07 | Retainer, trim cover, outer left | 1 | 52107404223 | Shop at ECS Tuning | ||||||
| 07 | Retainer, trim cover, outer right | 1 | 52107404224 | Shop at ECS Tuning | ||||||
| 08 | Dogbone link, left | 1 | 52107404231 | Shop at ECS Tuning | ||||||
| 08 | Dogbone link, right | 1 | 52107404232 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 09 | Support f left seat adjustment | 1 | 52107328417 | Shop at ECS Tuning | ||||||
| 09 | Support f right seat adjustment | 1 | 52107328418 | Shop at ECS Tuning | ||||||
| 10 | Bracket, control unit | 2 | 51207311523 | Shop at ECS Tuning | ||||||
| 11 | Covering seat rail left | SCHWARZ | 1 | 52107351929 | Shop at ECS Tuning | |||||
| 11 | Covering seat rail right | SCHWARZ | 1 | 52107351930 | Shop at ECS Tuning | |||||
| 12 | Covering cap, seat rail | 8 | 52107395068 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | L = 16MM | 6 | 52108099299 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M4X8 | 2 | 07147148547 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Bracket for footwell lamp | 2 | 52107371125 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
