Rear seat, backrest frame for BMW MINI Clubman F54 Cooper (2019)

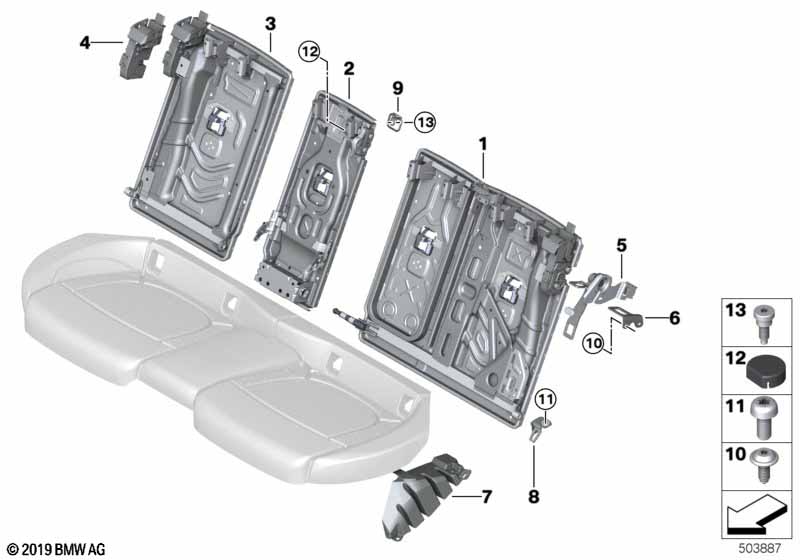

This Rear seat, backrest frame technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 01 | Backrest frame, left | 60% | 1 | 52207364261 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Backrest frame, left | 40% | 1 | 52207379533 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest frame, center | 20% | 1 | 52207379534 | NoS | Shop at ECS Tuning | ||||
| 03 | Backrest frame, right | 40% | 1 | 52207379528 | Shop at ECS Tuning | |||||
| 04 | Unlocking unit, left | 1 | 52207396019 | Shop at ECS Tuning | ||||||
| 04 | Unlocking unit, right | 1 | 52207396020 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 05 | Striker, adjustable, left | 1 | 52207382725 | Shop at ECS Tuning | ||||||
| 05 | Striker, adjustable, right | 1 | 52207382726 | Shop at ECS Tuning | ||||||
| 06 | Catch bracket left | 1 | 52207423769 | NoS | Shop at ECS Tuning | |||||
| 06 | Catch bracket right | 1 | 52207423770 | Shop at ECS Tuning | ||||||
| 07 | Left support | 1 | 52207389817 | Shop at ECS Tuning | ||||||
| 07 | Right support | 1 | 52207389818 | Shop at ECS Tuning | ||||||
| 08 | Supporting bracket, backrest, top left | 1 | 52207364787 | Shop at ECS Tuning | ||||||
| 08 | Supporting bracket, backrest, top right | 1 | 52207364788 | Shop at ECS Tuning | ||||||
| 09 | Tie-down ring | 3 | 51477129196 | $7.23 | Shop at ECS Tuning | |||||
| 10 | Torx screw with collar | M8X20 T30 | 2 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 12 | Repair kit lock backrest center | 1 | 52207443133 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Rear seat, backrest frame?
- This technical diagram illustrates the Rear seat, backrest frame within the Seats group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Backrest frame, left (Part #52207364261).
- Which models use the hardware listed in this Rear seat, backrest frame?
- The hardware and components featured in the Rear seat, backrest frame are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Backrest frame, left (52207364261) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear seat, backrest frame assembly?
- Each item in the Rear seat, backrest frame corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Backrest frame, left by locating its position on the schematic, which then links to the official BMW part number 52207364261 for the Seats section.
