Rear seat head restraint for BMW 2 Series F23 LCI 218d (2020)

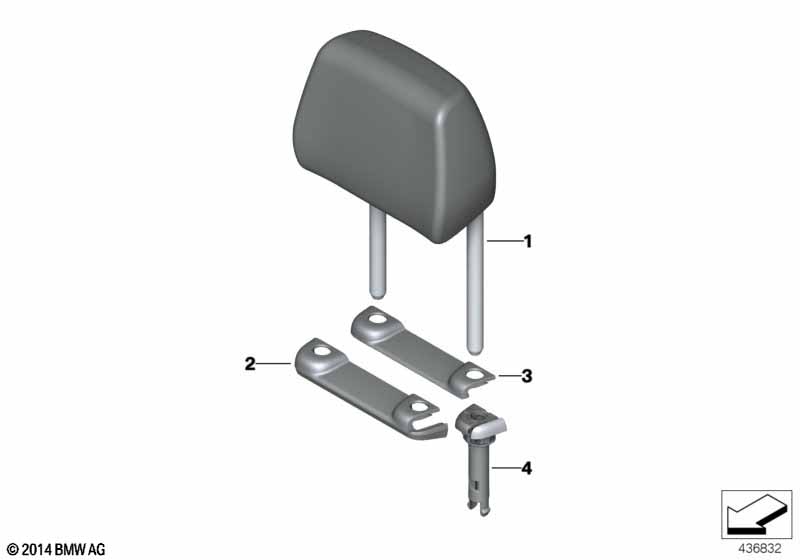

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207343712 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-rot |
BEL2=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/ROT | 2 | 52207337337 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ/BLAU | 2 | 52208070061 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster |
CBDH=Yes |
|||||||||
| 01 | Head rest cloth | OYSTER | 2 | 52207354388 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/cognac/accent brown |
LCRY=Yes |
|||||||||
| 01 | Headrest leather | COGNAC | 2 | 52207487295 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Stofff corner/anthrazit/Akzent rot |
CCL2=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/ROT | 2 | 52207488376 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam |
LCLZ=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52209109589 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 01 | Headrest Alcantara | ANTHRAZIT | 2 | 52208060119 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Headrest leather | KORALLROT | 2 | 52207400899 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 2 | 52207400897 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/anthracite |
CBAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207354387 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Track/anthracite/akzent-grau |
BEL1=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/GRAU | 2 | 52207337336 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52207400895 | Shop at ECS Tuning | |||||
| For vehicles with Stofff corner/anthrazit/Akzent grau |
CCL1=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT/GRAU | 2 | 52207488375 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/akzent-rot |
LCL3=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ/ROT | 2 | 52207400898 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/oyster or Sensatec/oyster/oyster |
KCCX=Yes KCDH=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52207400902 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
LCL9=Yes LCOM=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 52207400900 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black/Accent red or Sensatec/black |
KCL3=Yes KCSW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52207400901 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and oyster/oyster or oyster/Akzent oyster dark or Leather Dakota/oyster/Accent oyster dark |
S465A=Yes DH=Yes L9=Yes LCL9=Yes |
|||||||||
| 02 | Head rest cover | OYSTER | 2 | 52207343724 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and anthracite or terra or oyster or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or korall-rot/Akzent schwarz or oyster/Akzent oyster dark or oyster/schwarz or Black or Fabric Move/anthracite or Fabric/Leather Breeze/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot or Cloth Hexagon/Alcantara/anthracite or Sensatec/oyster or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/cognac/accent brown |
S465A=Yes AT=Yes B8=Yes CX=Yes L1=Yes L2=Yes L3=Yes L5=Yes OM=Yes OP=Yes SW=Yes BDAT=Yes CBAT=Yes CCL1=Yes CCL2=Yes HAAT=Yes KCCX=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL5=Yes LCLZ=Yes LCNL=Yes LCOM=Yes LCRY=Yes |
|||||||||
| 02 | Head rest cover | SCHWARZ | 2 | 52207343723 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and oyster/oyster or oyster/Akzent oyster dark or Leather Dakota/oyster/Accent oyster dark |
S465A=No DH=Yes L9=Yes LCL9=Yes |
|||||||||
| 03 | Head rest cover | OYSTER | 2 | 52207352201 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and anthracite or terra or oyster or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or korall-rot/Akzent schwarz or oyster/Akzent oyster dark or oyster/schwarz or Black or Fabric Move/anthracite or Fabric/Leather Breeze/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot or Cloth Hexagon/Alcantara/anthracite or Sensatec/oyster or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/cognac/accent brown |
S465A=No AT=Yes B8=Yes CX=Yes L1=Yes L2=Yes L3=Yes L5=Yes OM=Yes OP=Yes SW=Yes BDAT=Yes CBAT=Yes CCL1=Yes CCL2=Yes HAAT=Yes KCCX=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL5=Yes LCLZ=Yes LCNL=Yes LCOM=Yes LCRY=Yes |
|||||||||
| 03 | Head rest cover | SCHWARZ | 2 | 52207352200 | Shop at ECS Tuning | |||||
| With button | ||||||||||
| 04 | Guide, headrest | SCHWARZ | 2 | 52207343716 | Shop at ECS Tuning | |||||
| Without button | ||||||||||
| 04 | Guide, headrest | SCHWARZ | 2 | 52207343720 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/oyster/Accent oyster dark |
LCL9=Yes |
|||||||||
| 04 | Guide, headrest | OYSTER | 2 | 52207343717 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
