Seat, rear, seat frame for BMW 2 Series F23 218d (2017)

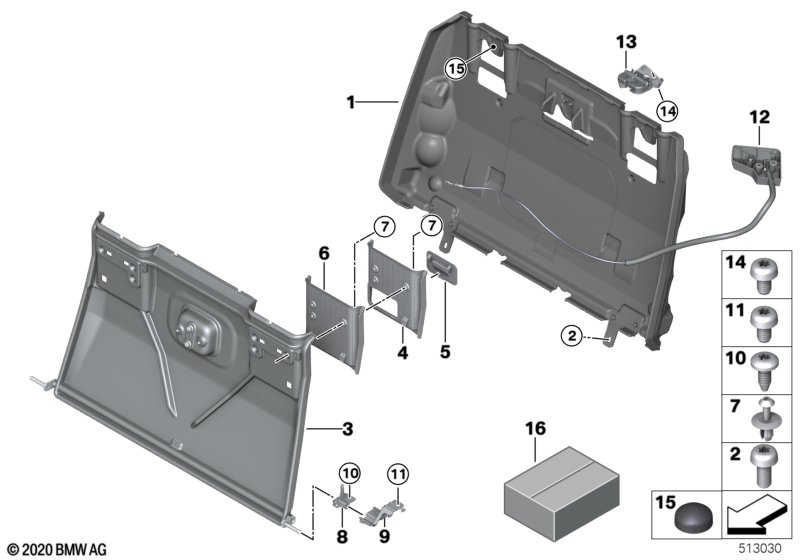

This Seat, rear, seat frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 01 | Backrest frame, base seat | 1 | 52207356996 | NoS | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 03 | backrest frame el. fa | 1 | 52207315721 | Shop at ECS Tuning | ||||||
| For vehicles with National version Australia and Through-loading system |
L810A=Yes S465A=Yes |
|||||||||
| 03 | backrest frame el. fa | 1 | 52207315722 | NoS | Shop at ECS Tuning | |||||
| 04 | Covering left | 1 | 52207352415 | NoS | Shop at ECS Tuning | |||||
| 04 | Covering right | 1 | 52207352416 | NoS | Shop at ECS Tuning | |||||
| 05 | Cover lid | 1 | 52207363345 | Shop at ECS Tuning | ||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 06 | Covering right | 1 | 52207326088 | Shop at ECS Tuning | ||||||
| 06 | Covering left | 1 | 52207346119 | Shop at ECS Tuning | ||||||
| 07 | Expanding rivet | 6 | 07149193301 | Shop at ECS Tuning | ||||||
| 08 | Bearing exterior left | 1 | 52207368427 | Shop at ECS Tuning | ||||||
| 08 | Bearing exterior right | 1 | 52207368428 | Shop at ECS Tuning | ||||||
| 09 | Bearing exterior left | 1 | 52207315735 | Shop at ECS Tuning | ||||||
| 09 | Bearing exterior right | 1 | 52207315736 | Shop at ECS Tuning | ||||||
| 10 | Screw self-tapping | M6X14,5 ZNS3 | 4 | 07146967731 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M10X16 | 2 | 07147132830 | $1.80 | Shop at ECS Tuning | ||||
| 12 | Backrest release | 2 | 52207342341 | Shop at ECS Tuning | ||||||
| 13 | Lock | 2 | 52207402586 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | M8X12-8.8-ZNS3 | 4 | 07119904134 | $0.45 | Shop at ECS Tuning | ||||
| 15 | Stop buffer | 2 | 52207326087 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F23 218d Seat, rear, seat frame?
- This technical diagram illustrates the Seat, rear, seat frame within the Seats group for the 2 Series F23 218d produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Backrest frame, base seat (Part #52207356996).
- Which models use the hardware listed in this Seat, rear, seat frame?
- The hardware and components featured in the Seat, rear, seat frame are specific to the 2 Series F23 218d produced during 2017. These technical specifications ensure that parts like the Backrest frame, base seat (52207356996) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, seat frame assembly?
- Each item in the Seat, rear, seat frame corresponds to the numbered list below the illustration. For the 2 Series F23 218d, you can identify the Backrest frame, base seat by locating its position on the schematic, which then links to the official BMW part number 52207356996 for the Seats section.
