Seat, rear, upholstery and cover for BMW 2 Series F46 Gran Tourer LCI 216d (2022)

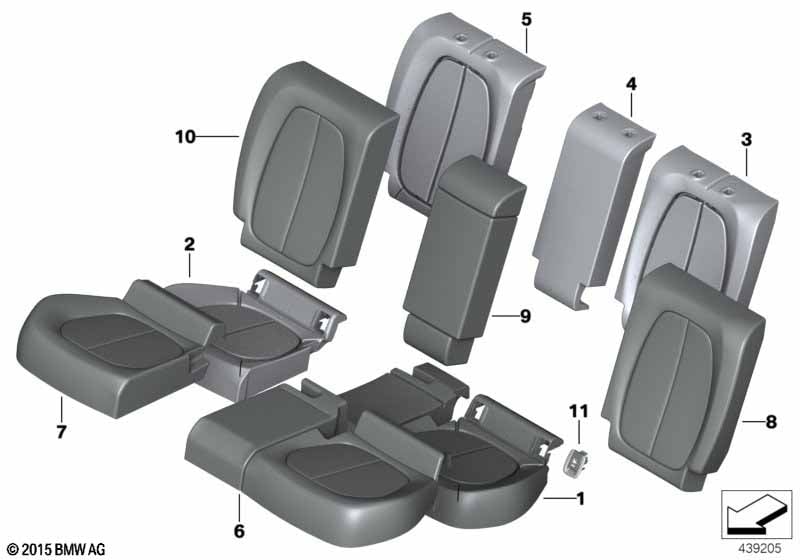

This Seat, rear, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left seat foam plastic part | 1 | 52207330305 | Shop at ECS Tuning | ||||||
| 02 | Right seat foam plastic part | 1 | 52207330306 | Shop at ECS Tuning | ||||||
| 03 | Foam padding, backrest, left | 1 | 52207330303 | Shop at ECS Tuning | ||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 03 | Foam padding, backrest, left | 1 | 52207330323 | Shop at ECS Tuning | ||||||
| 05 | Foam padding, backrest, right | 1 | 52207330304 | Shop at ECS Tuning | ||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 05 | Foam padding, backrest, right | 1 | 52207330324 | Shop at ECS Tuning | ||||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 06 | Seat cover leather left | SCHWARZ/GRAU | 1 | 52207466849 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 06 | Seat cover cloth left | ANTHRAZIT | 1 | 52207406923 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota perforated/black/blue acc |
PDN4=Yes |
|||||||||
| 06 | Seat cover leather left | SCHWARZ/BLAU | 1 | 52207466825 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 06 | Seat cover leather left | SCHWARZ | 1 | 52207466817 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / gray |
KFL1=Yes |
|||||||||
| 06 | Seat cover cloth left | SCHWARZ/GRAU | 1 | 52207496389 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Race/anthracite/gray accent |
ERL1=Yes |
|||||||||
| 06 | Seat cover cloth left | ANTHRAZIT/GRAU | 1 | 52207407568 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/oyster |
KCCX=Yes |
|||||||||
| 06 | Seat cover vinyl left | OYSTER | 1 | 52207498427 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perf./oyster/gray acc. |
PDOA=Yes |
|||||||||
| 06 | Seat cover leather left | OYSTER/GRAU | 1 | 52207938243 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 06 | Seat cover vinyl left | SCHWARZ | 1 | 52207398563 | Shop at ECS Tuning | |||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 06 | Seat cover leather left | MOKKA | 1 | 52207941057 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / orange |
KFIX=Yes |
|||||||||
| 06 | Seat cover cloth left | SCHWARZ/ORANGE | 1 | 52207496391 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 07 | Seat cover leather right | SCHWARZ/GRAU | 1 | 52207466850 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 07 | Seat cover cloth right | ANTHRAZIT | 1 | 52207406924 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota perforated/black/blue acc |
PDN4=Yes |
|||||||||
| 07 | Seat cover leather right | SCHWARZ/BLAU | 1 | 52207466826 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 07 | Seat cover leather right | SCHWARZ | 1 | 52207466818 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec anthracite / gray |
KFL1=Yes |
|||||||||
| 07 | Seat cover cloth right | SCHWARZ/GRAU | 1 | 52207496390 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Race/anthracite/gray accent |
ERL1=Yes |
|||||||||
| 07 | Seat cover cloth right | ANTHRAZIT/GRAU | 1 | 52207407570 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/oyster |
KCCX=Yes |
|||||||||
| 07 | Seat cover vinyl right | OYSTER | 1 | 52207498428 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perf./oyster/gray acc. |
PDOA=Yes |
|||||||||
| 07 | Seat cover leather right | OYSTER/GRAU | 1 | 52207938244 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 07 | Seat cover vinyl right | SCHWARZ | 1 | 52207398564 | Shop at ECS Tuning | |||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 07 | Seat cover leather right | MOKKA | 1 | 52207941058 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / orange |
KFIX=Yes |
|||||||||
| 07 | Seat cover cloth right | SCHWARZ/ORANGE | 1 | 52207496392 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather 'Dakota' perforated/mocca |
S4UBA=No PDMY=Yes |
|||||||||
| 08 | Cover backrest leather left | MOKKA | 1 | 52207499893 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather Dakota perforated/black/blue acc |
S4UBA=No PDN4=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ/BLAU | 1 | 52208063865 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather Dakota perf./oyster/gray acc. |
S4UBA=No PDOA=Yes |
|||||||||
| 08 | Cover backrest leather left | OYSTER/GRAU | 1 | 52207407851 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz and 3rd seat row |
LCSW=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ | 1 | 52207407509 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota perf./oyster/gray acc. and 3rd seat row |
PDOA=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest leather left | OYSTER/GRAU | 1 | 52207407519 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / orange |
S4UBA=Yes KFIX=Yes |
|||||||||
| 08 | Cover backrest cloth left | SCHWARZ/ORANGE | 1 | 52207496399 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=Yes KCCX=Yes |
|||||||||
| 08 | Cover backrest vinyl left | OYSTER | 1 | 52207941031 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black and 3rd seat row |
KCSW=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest vinyl left | SCHWARZ | 1 | 52207398573 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black and 3rd seat row |
PDSW=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ/GRAU | 1 | 52207407855 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Race/anthracite/gray accent and 3rd seat row |
ERL1=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest cloth left | ANTHRAZIT/GRAU | 1 | 52207407559 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec anthracite / gray |
S4UBA=No KFL1=Yes |
|||||||||
| 08 | Cover backrest cloth left | GRAU | 1 | 52207496381 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / orange |
S4UBA=No KFIX=Yes |
|||||||||
| 08 | Cover backrest cloth left | SCHWARZ/ORANGE | 1 | 52207496383 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / gray |
S4UBA=Yes KFL1=Yes |
|||||||||
| 08 | Cover backrest cloth left | SCHWARZ/GRAU | 1 | 52207496397 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather "Dakota"/schwarz |
S4UBA=No LCSW=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ | 1 | 52207407505 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforated/black/blue acc and 3rd seat row |
PDN4=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest leather right | SCHWARZ/BLAU | 1 | 52208063868 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Grid/anthracite and 3rd seat row |
EGAT=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207406921 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/canberra-beige and 3rd seat row |
KCCY=Yes S4UBA=Yes |
|||||||||
| 08 | Cover backrest vinyl left | CANBERRABEIGE | 1 | 52207406977 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Race/anthracite/gray accent |
S4UBA=No ERL1=Yes |
|||||||||
| 08 | Cover backrest cloth left | ANTHRAZIT/GRAU | 1 | 52207407555 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=No KCCX=Yes |
|||||||||
| 08 | Cover backrest vinyl left | OYSTER | 1 | 52207498429 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather 'Dakota' perforated/mocca |
S4UBA=Yes PDMY=Yes |
|||||||||
| 08 | Cover backrest leather left | MOKKA | 1 | 52207499897 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec/black |
S4UBA=No KCSW=Yes |
|||||||||
| 08 | Cover backrest vinyl left | SCHWARZ | 1 | 52207398571 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Grid/anthracite |
S4UBA=No EGAT=Yes |
|||||||||
| 08 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207406919 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather, Dakota, ventilated black |
S4UBA=No PDSW=Yes |
|||||||||
| 08 | Cover backrest leather left | SCHWARZ/ROT | 1 | 52207407845 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Fabric Grid/anthracite |
S4UBA=Yes EGAT=Yes |
|||||||||
| 09 | Seat cover, backrest, center, fabric | ANTHRAZIT | 1 | 52207413469 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather, Dakota, ventilated black |
S4UBA=No PDSW=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ/GRAU | 1 | 52207407830 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather 'Dakota' perforated/mocca |
S4UBA=No PDMY=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | MOKKA | 1 | 52207499899 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Hot Chocolate and Leather Dakota perf./oyster/gray acc. |
S4BUA=Yes PDOA=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | OYSTER/GRAU | 1 | 52207413491 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Grid/anthracite |
S4UBA=No EGAT=Yes |
|||||||||
| 09 | Seat cover, backrest, center, fabric | ANTHRAZIT | 1 | 52207406932 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec/black |
S4UBA=No KCSW=Yes |
|||||||||
| 09 | Upholstery cover, backrest, vinyl, cent | SCHWARZ | 1 | 52207398560 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Race/anthracite/gray accent |
S4UBA=No ERL1=Yes |
|||||||||
| 09 | Cover backrest cloth | ANTHRAZIT/GRAU | 1 | 52207407565 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=Yes KCCX=Yes |
|||||||||
| 09 | Upholstery cover, backrest, vinyl, cent | OYSTER | 1 | 52207941042 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / gray |
S4UBA=No KFL1=Yes |
|||||||||
| 09 | Upholstery cover, backrest, fabric, cent | SCHWARZ/GRAU | 1 | 52207496385 | NoS | Shop at ECS Tuning | ||||
| 09 | Upholstery cover, backrest, fabric, cent | SCHWARZ/GRAU | 1 | 52207496406 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / orange |
S4UBA=No KFIX=Yes |
|||||||||
| 09 | Upholstery cover, backrest, fabric, cent | SCHWARZ/ORANGE | 1 | 52207496386 | NoS | Shop at ECS Tuning | ||||
| 09 | Upholstery cover, backrest, fabric, cent | SCHWARZ/ORANGE | 1 | 52207496407 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Hot Chocolate and Leather 'Dakota' perforated/mocca |
S4BUA=Yes PDMY=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | MOKKA | 1 | 52207499890 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Hot Chocolate and Sensatec/black |
S4BUA=Yes KCSW=Yes |
|||||||||
| 09 | Upholstery cover, backrest, vinyl, cent | SCHWARZ | 1 | 52207413472 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather Dakota perforated/black/blue acc |
S4UBA=Yes PDN4=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ/BLAU | 1 | 52208062018 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=No KCCX=Yes |
|||||||||
| 09 | Upholstery cover, backrest, vinyl, cent | OYSTER | 1 | 52207498425 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Hot Chocolate and Leather, Dakota, ventilated black |
S4BUA=Yes PDSW=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ/GRAU | 1 | 52207413490 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather "Dakota"/schwarz |
S4UBA=No LCSW=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ | 1 | 52207407827 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Race/anthracite/gray accent |
S4UBA=Yes ERL1=Yes |
|||||||||
| 09 | Cover backrest cloth | ANTHRAZIT/GRAU | 1 | 52207413477 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Colour Line Hot Chocolate and Leather "Dakota"/schwarz |
S4BUA=Yes LCSW=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ | 1 | 52207413487 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather Dakota perf./oyster/gray acc. |
S4UBA=No PDOA=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | OYSTER/GRAU | 1 | 52207407831 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather Dakota perforated/black/blue acc |
S4UBA=No PDN4=Yes |
|||||||||
| 09 | Upholstery cover backrest, lthr, cent | SCHWARZ/BLAU | 1 | 52208062416 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather 'Dakota' perforated/mocca |
S4UBA=No PDMY=Yes |
|||||||||
| 10 | Cover backrest leather right | MOKKA | 1 | 52207499894 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather Dakota perforated/black/blue acc |
S4UBA=No PDN4=Yes |
|||||||||
| 10 | Cover backrest leather right | SCHWARZ/BLAU | 1 | 52208063866 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather Dakota perf./oyster/gray acc. |
S4UBA=No PDOA=Yes |
|||||||||
| 10 | Cover backrest leather right | OYSTER/GRAU | 1 | 52207407852 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz and 3rd seat row |
LCSW=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest leather right | SCHWARZ | 1 | 52207407510 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perf./oyster/gray acc. and 3rd seat row |
PDOA=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest leather right | OYSTER/GRAU | 1 | 52207407520 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec anthracite / orange |
S4UBA=Yes KFIX=Yes |
|||||||||
| 10 | Cover backrest cloth right | SCHWARZ/ORANGE | 1 | 52207496400 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=Yes KCCX=Yes |
|||||||||
| 10 | Cover backrest vinyl right | OYSTER | 1 | 52207941032 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black and 3rd seat row |
KCSW=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest vinyl right | SCHWARZ | 1 | 52207398574 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black and 3rd seat row |
PDSW=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest leather right | SCHWARZ/GRAU | 1 | 52207407856 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Race/anthracite/gray accent and 3rd seat row |
ERL1=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest cloth right | ANTHRAZIT/GRAU | 1 | 52207407560 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec anthracite / gray |
S4UBA=No KFL1=Yes |
|||||||||
| 10 | Cover backrest cloth right | SCHWARZ/GRAU | 1 | 52207496382 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / orange |
S4UBA=No KFIX=Yes |
|||||||||
| 10 | Cover backrest cloth right | SCHWARZ/ORAGNE | 1 | 52207496384 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec anthracite / gray |
S4UBA=Yes KFL1=Yes |
|||||||||
| 10 | Cover backrest cloth right | SCHWARZ/GRAU | 1 | 52207496398 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather "Dakota"/schwarz |
S4UBA=No LCSW=Yes |
|||||||||
| 10 | Cover backrest leather right | SCHWARZ | 1 | 52207407506 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforated/black/blue acc and 3rd seat row |
PDN4=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest leather left | SCHWARZ/BLAU | 1 | 52208063867 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Grid/anthracite and 3rd seat row |
EGAT=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207406922 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/canberra-beige and 3rd seat row |
KCCY=Yes S4UBA=Yes |
|||||||||
| 10 | Cover backrest vinyl right | CANBERRABEIGE | 1 | 52207406978 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Race/anthracite/gray accent |
S4UBA=No ERL1=Yes |
|||||||||
| 10 | Cover backrest cloth right | ANTHRAZIT/GRAU | 1 | 52207407556 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Sensatec/oyster |
S4UBA=No KCCX=Yes |
|||||||||
| 10 | Cover backrest vinyl right | OYSTER | 1 | 52207498430 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Leather 'Dakota' perforated/mocca |
S4UBA=Yes PDMY=Yes |
|||||||||
| 10 | Cover backrest leather right | MOKKA | 1 | 52207499898 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Sensatec/black |
S4UBA=No KCSW=Yes |
|||||||||
| 10 | Cover backrest vinyl right | SCHWARZ | 1 | 52207398572 | NoS | Shop at ECS Tuning | ||||
| For vehicles with 3rd seat row and Fabric Grid/anthracite |
S4UBA=No EGAT=Yes |
|||||||||
| 10 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207406920 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and Leather, Dakota, ventilated black |
S4UBA=No PDSW=Yes |
|||||||||
| 10 | Cover backrest leather right | SCHWARZ/GRAU | 1 | 52207407846 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or Saddlebrown or anthrazit / Akzent grau or anthrazit / Akzent rot or schwarz / Akzent rot or oyster/Akzent grau or Black |
AT=Yes D3=Yes L1=Yes L2=Yes L3=Yes OA=Yes SW=Yes |
|||||||||
| 11 | Cover isofix | SCHWARZ | 4 | 52207384719 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 216d Seat, rear, upholstery and cover?
- This technical diagram illustrates the Seat, rear, upholstery and cover within the Seats group for the 2 Series F46 Gran Tourer LCI 216d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Left seat foam plastic part (Part #52207330305).
- Which models use the hardware listed in this Seat, rear, upholstery and cover?
- The hardware and components featured in the Seat, rear, upholstery and cover are specific to the 2 Series F46 Gran Tourer LCI 216d produced during 2022. These technical specifications ensure that parts like the Left seat foam plastic part (52207330305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, upholstery and cover assembly?
- Each item in the Seat, rear, upholstery and cover corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 216d, you can identify the Left seat foam plastic part by locating its position on the schematic, which then links to the official BMW part number 52207330305 for the Seats section.
