Seat, rear, seat frame for BMW 2 Series F46 Gran Tourer LCI 220dX (2021)

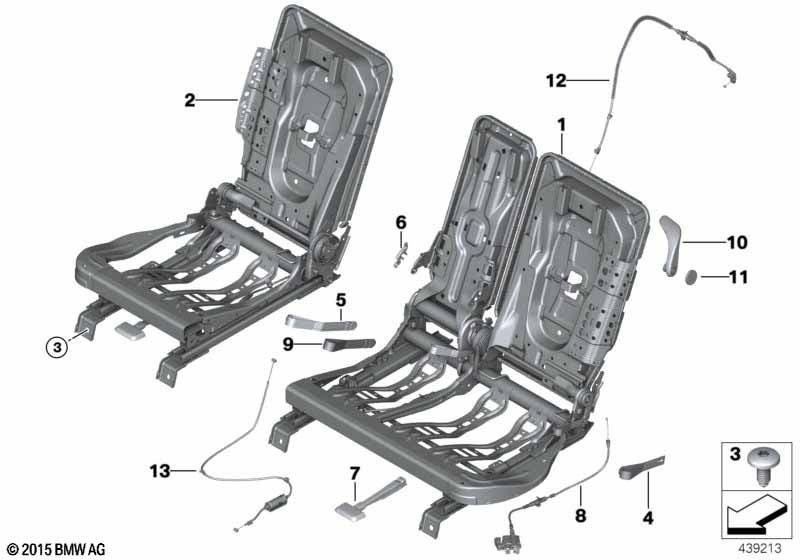

This Seat, rear, seat frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package and 3rd seat row |
S493A=Yes S4UBA=Yes |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207444824 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and 3rd seat row |
S493A=Yes S4UBA=No |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207444821 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and 3rd seat row |
S493A=No S4UBA=No |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207444820 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and 3rd seat row |
S493A=No S4UBA=Yes |
|||||||||
| 01 | Seat carrier, rear left | 1 | 52207444823 | NoS | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row |
S4UBA=No |
|||||||||
| 02 | Seat carrier, rear right | 1 | 52207444819 | Shop at ECS Tuning | ||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 02 | Seat carrier, rear right | 1 | 52207444822 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | M10X25 | 1 | 52207444818 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | M10X25 | 10 | 07147395678 | Shop at ECS Tuning | |||||
| 04 | Release loop outer | 2 | 52207432602 | Shop at ECS Tuning | ||||||
| 05 | Release loop center | 1 | 52207432603 | Shop at ECS Tuning | ||||||
| 06 | Detent unit, left | 1 | 52207250809 | Shop at ECS Tuning | ||||||
| 06 | Detent unit, right | 1 | 52207250810 | Shop at ECS Tuning | ||||||
| 07 | Handle, seat fore-aft adjustment | 2 | 52207432599 | Shop at ECS Tuning | ||||||
| 08 | Backrest, remote release, right | 1 | 52207432607 | Shop at ECS Tuning | ||||||
| 08 | Backrest, remote release, left | 1 | 52207432608 | Shop at ECS Tuning | ||||||
| 09 | Emergency release | 1 | 52207444825 | Shop at ECS Tuning | ||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 10 | Lever left | 1 | 52207444815 | Shop at ECS Tuning | ||||||
| 10 | Lever right | 1 | 52207444816 | Shop at ECS Tuning | ||||||
| 11 | Cover | 1 | 52207444817 | Shop at ECS Tuning | ||||||
| 12 | Bowden cable for Easy Entry | 1 | 52207444829 | Shop at ECS Tuning | ||||||
| 13 | Bowden cable, Easy Entry, left | 1 | 52207444831 | Shop at ECS Tuning | ||||||
| 13 | Bowden cable, Easy Entry, right | 1 | 52207444832 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
