Seat, front, backrest trim covers for BMW MINI Cabrio F57 LCI One (2020)

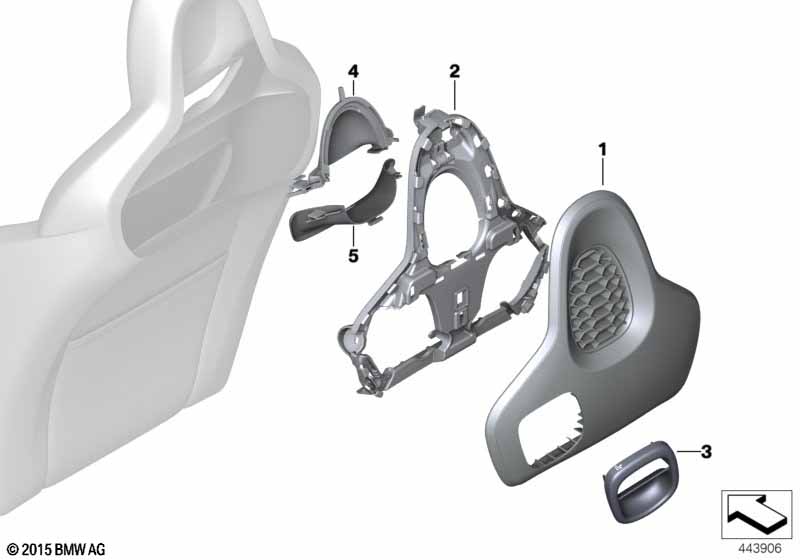

This Seat, front, backrest trim covers technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with John Cooper Works Sportsitze |
S4FNA=Yes |
||||||||
| For vehicles with John Cooper Works Sportsitze |
S4FNA=Yes |
|||||||||
| 01 | Rear panel, left | JCW | 1 | 52107403811 | Shop at ECS Tuning | |||||
| 01 | Rear panel, right | JCW | 1 | 52107403812 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Sportsitze and Dinamica/cloth or Dinamica/leather |
S4FNA=Yes DA=Yes GS=Yes |
|||||||||
| 02 | Supporting part | JCW | 2 | 52107390841 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Sportsitze and Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth or Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Fabric/leatherette Bl.Pearl/carbon-black or Cloth, Blue Pearl/Light Gray or Leather, Cross punch / carbon black or Leather, chester/satellite gray or Leather Chester/malt-brown or MINI Yours leather Lounge/carbon-black or MINI LOUNGE 60 Years dark maroon or MINI Yours Leather Lounge/Sidewk Anthra. |
S4FNA=Yes BGE1=Yes BZE1=Yes DAE1=Yes GSE1=Yes K9E1=Yes KDE1=Yes KDT8=Yes NEE1=Yes NYGK=Yes NYMJ=Yes TYE1=Yes TYIH=Yes TYM8=Yes |
|||||||||
| 03 | Trim panel, handle, right | JCW | 1 | 52107408932 | NoS | Shop at ECS Tuning | ||||
| 03 | Trim panel, handle, left | JCW | 1 | 52107408935 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Sportsitze and Dinamica/cloth or Dinamica/leather |
S4FNA=Yes DA=Yes GS=Yes |
|||||||||
| 04 | Trim for opening, upper | JCW | 2 | 52107390840 | Shop at ECS Tuning | |||||
| 05 | Trim for opening, lower | JCW | 2 | 52107390844 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
